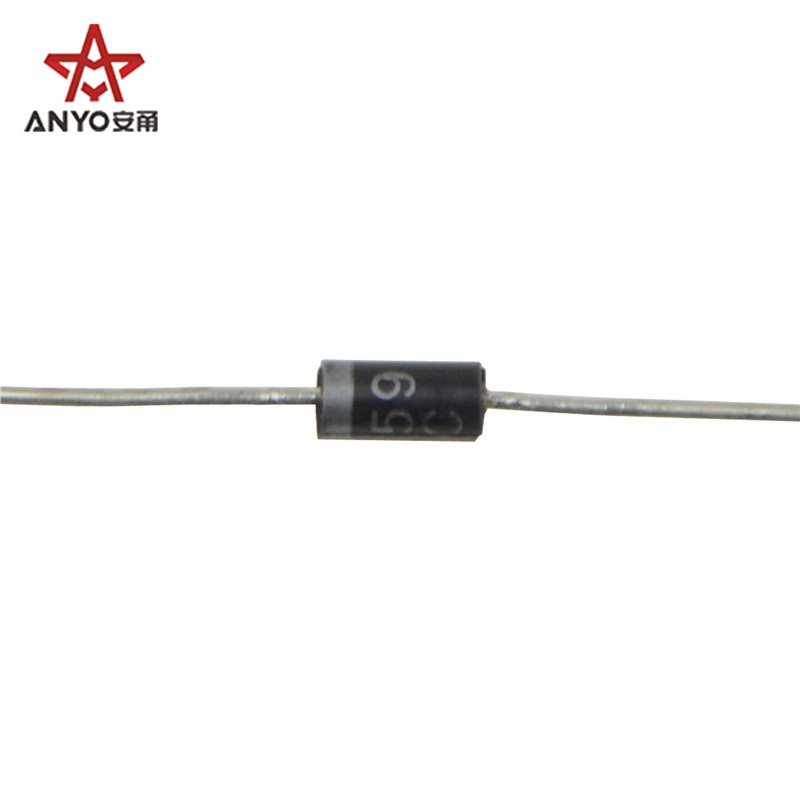

1.0A 1000V fast recovery silicon rectifier

Maximum repetitive peak reverse voltage: 1000V
Maximum RMS bridge input voltage: 700V
Maximum DC blocking voltage: 1000V
Maximum average forward rectified output current @ TA=75℃: 1.0A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method): 30A
Maximum reverse recovery time TJ=25℃: 500nS
Typical thermal resistance per element: 50℃/W
Typical junction capacitance per element: 15pF
Operating junction and storage temperature range: -65~+150℃
Maximum instantaneous forward voltage drop per leg @1.0A: 1.3V
Maximum DC reverse current at rated TA =25℃: 5.0μA
DC blocking voltage per element TA =125℃: 50.0μA
