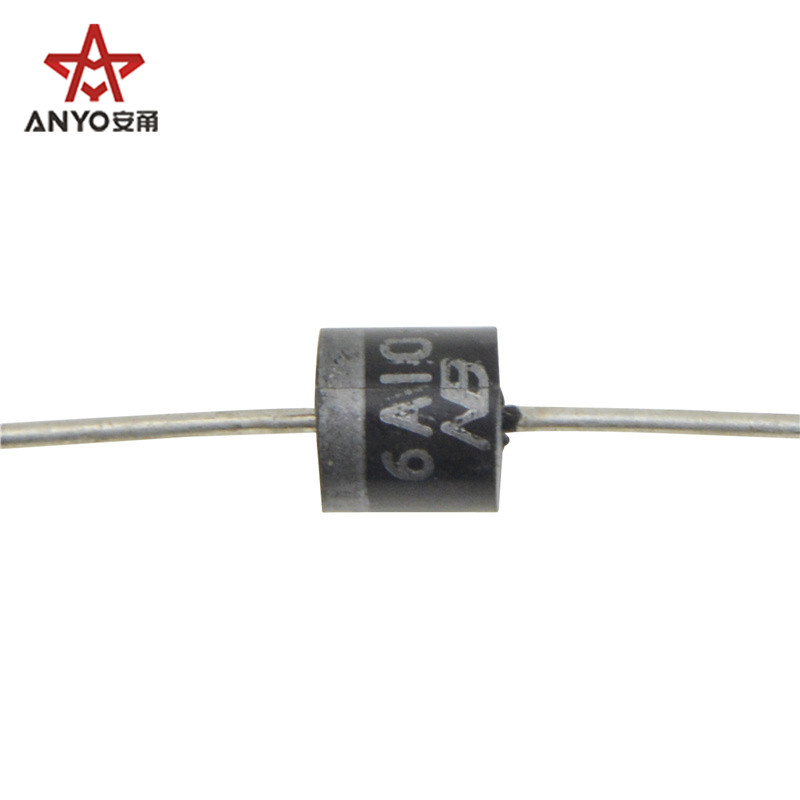

6.0A 1000V plastic silicon rectifier

Maximum repetitive peak reverse voltage: 1000V
Maximum RMS bridge input voltage: 700V
Maximum DC blocking voltage: 1000V
Maximum average forward rectified output current @ TA=75℃: 6.0A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method): 400A
Typical thermal resistance per element: 10℃/W
Typical junction capacitance per element: 150pF
Operating junction and storage temperature range: -55~+175℃
Maximum instantaneous forward voltage drop per leg @6.0A: 1.0V
Maximum DC reverse current at rated TA =25℃: 5.0μA
DC blocking voltage per element TA =100℃: 50.0μA
