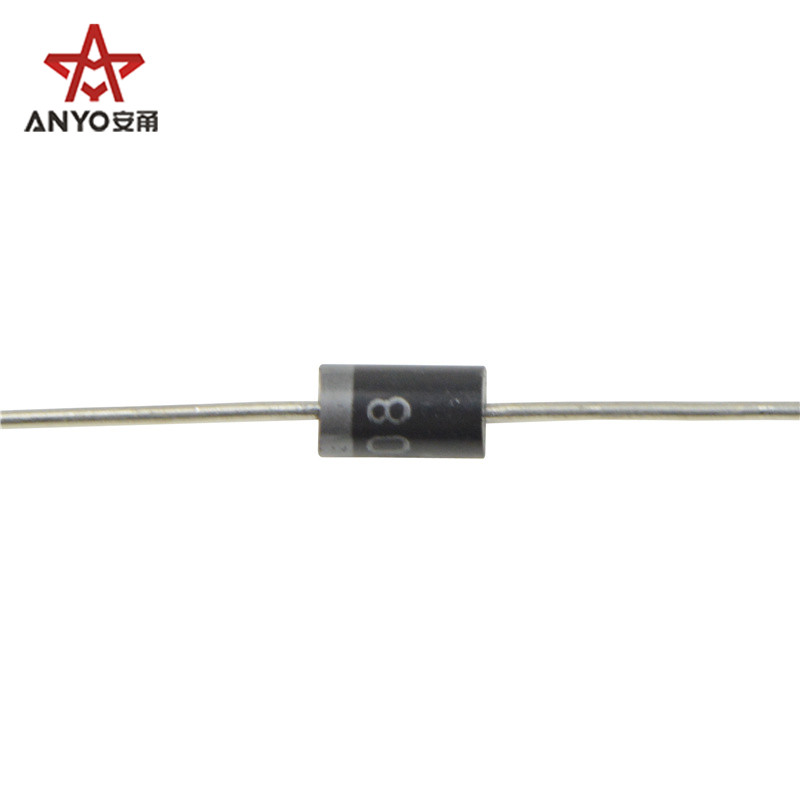

5.0A 1000V ultra fast recovery rectifier

Maximum repetitive peak reverse voltage: 1000V
Maximum RMS bridge input voltage: 700V
Maximum DC blocking voltage: 1000V
Maximum average forward rectified output current @ TA=55℃: 3.0A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method): 150A
Maximum reverse recovery time TJ=25℃: 75nS
Typical thermal resistance per element: 20℃/W
Typical junction capacitance per element: 50pF
Operating junction and storage temperature range: -55~+150℃
Maximum instantaneous forward voltage drop per leg @5.0A: 1.7V
Maximum DC reverse current at rated TA =25℃: 10.0μA
DC blocking voltage per element TA =125℃: 100.0μA
