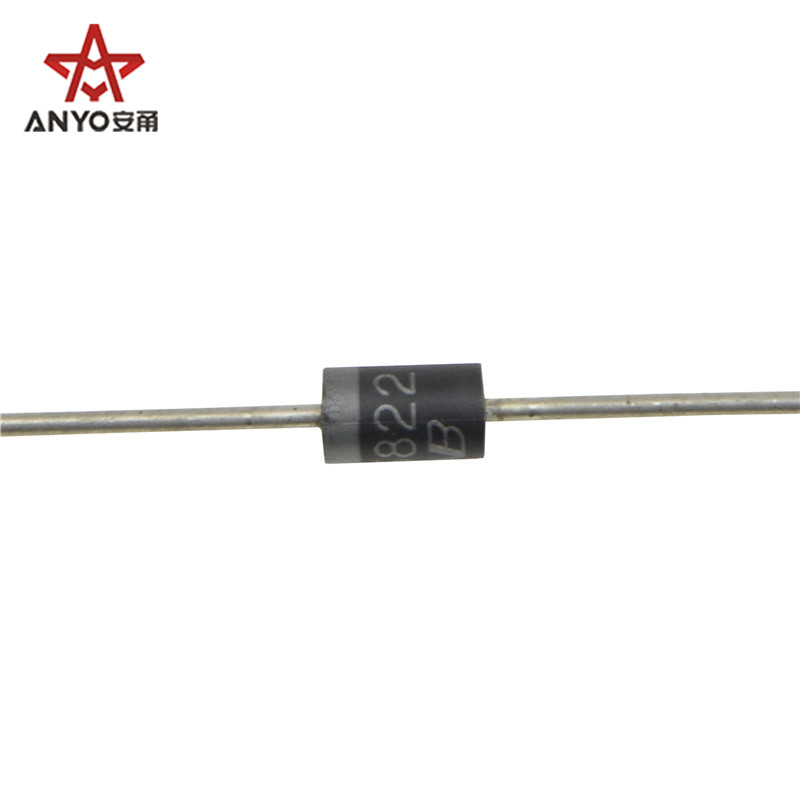

3.0A 40V schottky barrier rectifier

Maximum repetitive peak reverse voltage: 40V
Maximum RMS bridge input voltage: 28V
Maximum DC blocking voltage: 40V
Maximum average forward rectified output current @ TA=90℃: 3.0A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method): 80A
Typical thermal resistance per element: 30℃/W
Typical junction capacitance per element: 250pF
Operating junction and storage temperature range: -55~+125℃
Maximum instantaneous forward voltage drop per leg @3.0A: 0.525V
Maximum DC reverse current at rated TA =25℃: 2.0mA
DC blocking voltage per element TA =100℃: 20.0mA
