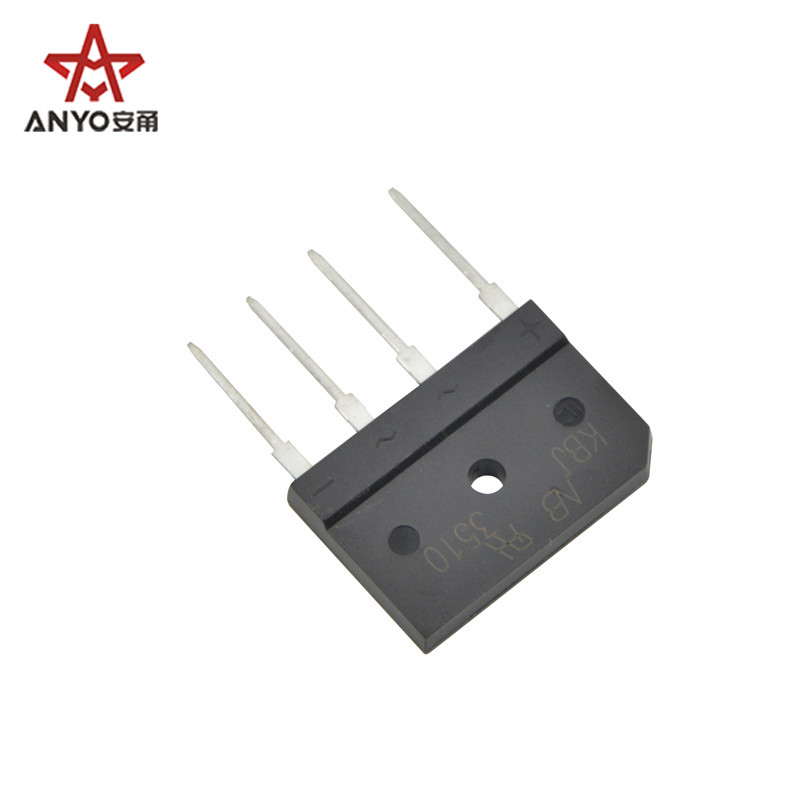

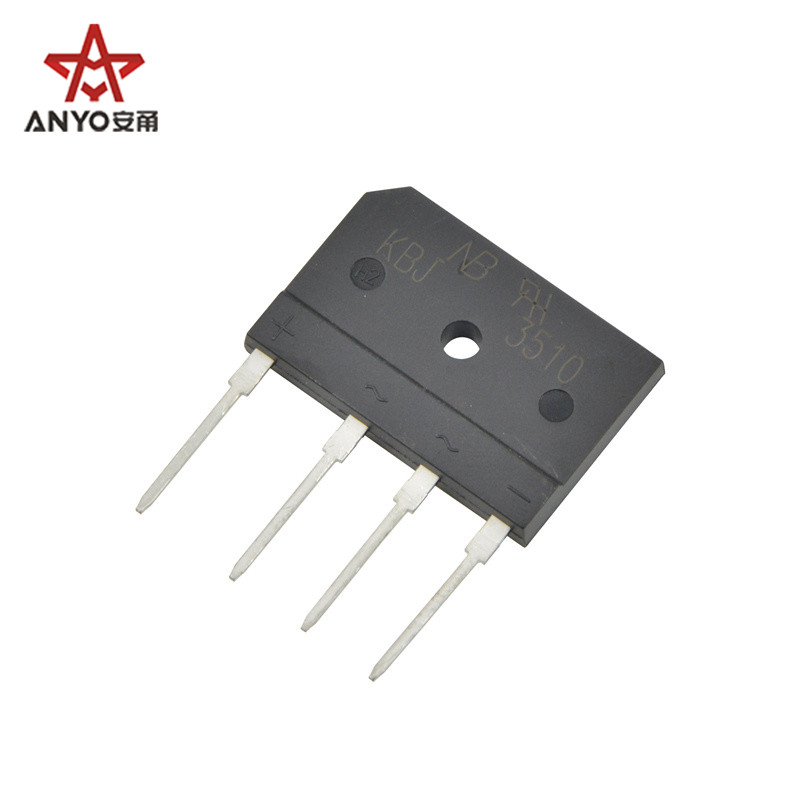

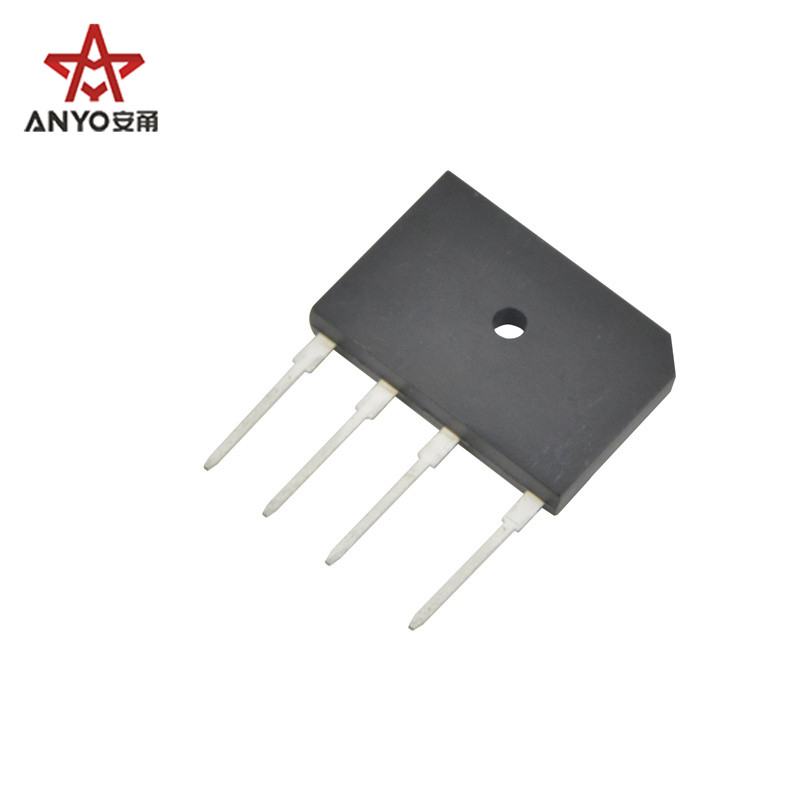

35A 1000V single-phase bridge rectifier
Maximum repetitive peak reverse voltage: 1000V
Peak reverse non-repetitive voltage: 1100V
Maximum DC blocking voltage: 1000V
Maximum average forward rectified output current @ TA=25℃: 35A
Peak forward surge current single sine-wave superimposed on rated load: 400A
RMS isolation voltage from case to leads: 2500V
Operating junction and storage temperature range: -40~+150℃
Maximum instantaneous forward voltage drop per diode: 1.10V
Maximum DC reverse current at rated TA =25℃: 5.0μA
DC blocking voltage per element TA =150℃: 500.0μA
|
