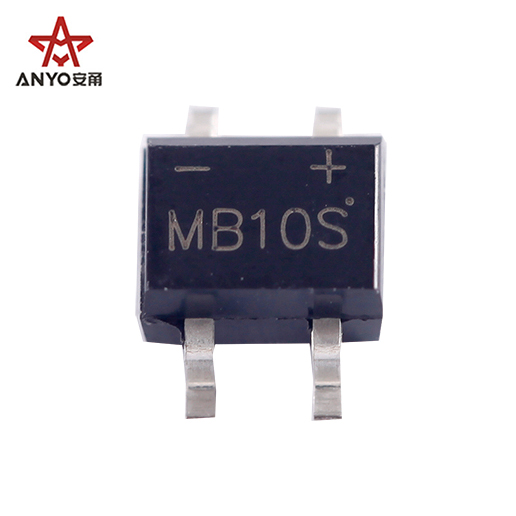

0.5A 1000V single-phase glass passivated bridge rectifiers

Maximum repetitive peak reverse voltage: 1000V
Maximum RMS bridge input voltage: 700V
Maximum DC blocking voltage: 1000V
Maximum average forward rectified output current @ TA=40℃: 0.5A
Peak forward surge current single sine-wave superimposed on rated load: 30A
Typical thermal resistance per element: 110℃/W
Typical junction capacitance per element: 25pF
Operating junction and storage temperature range: -55~+150℃
Maximum instantaneous forward voltage drop per leg @0.5A: 1.1V
Maximum DC reverse current at rated TA =25℃: 10.0μA
DC blocking voltage per element TA =125℃: 500.0μA
