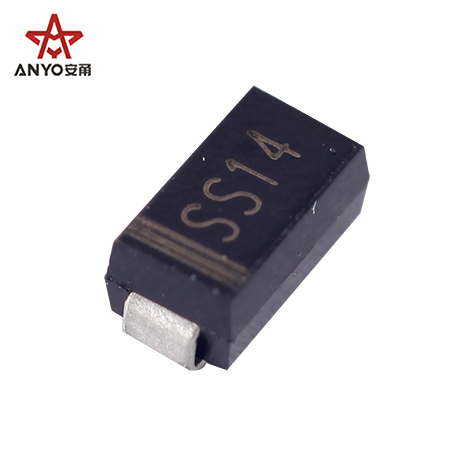

1.0A 40V surface mount schottky barrier rectifier

Maximum repetitive peak reverse voltage: 40V
Maximum RMS bridge input voltage: 28V
Maximum DC blocking voltage: 40V
Maximum average forward rectified output current @ TL=90℃: 1.0A
Peak forward surge current single sine-wave superimposed on rated load: 25A
Typical thermal resistance per element: 50℃/W
Typical junction capacitance per element: 70pF
Operating junction and storage temperature range: -55~+150℃
Maximum instantaneous forward voltage drop per leg @1.0A: 0.5V
Maximum DC reverse current at rated TA =25℃: 0.5mA
DC blocking voltage per element TA =100℃: 20mA
