ELECTRET MICROPHONE

Loading...
9767-40dB
Category:ELECTRET MICROPHONE
Release date:2018-11-27 09:11:08

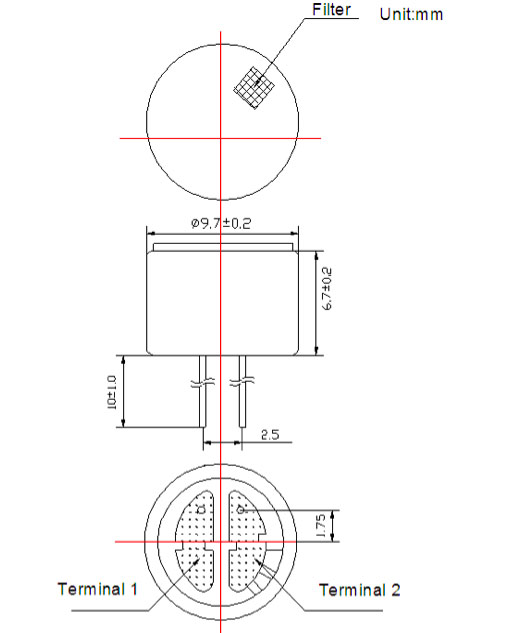

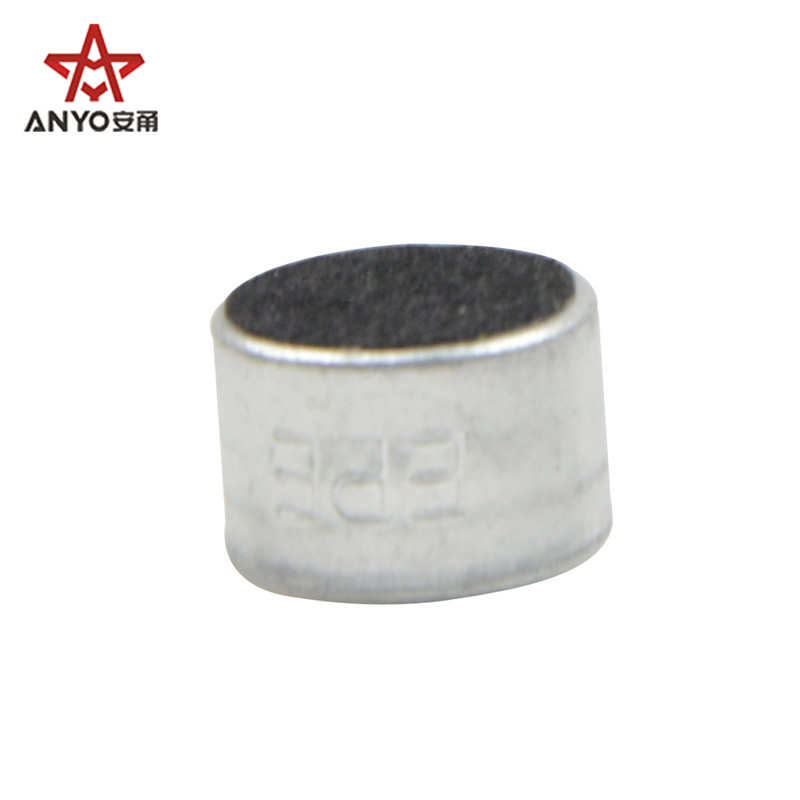

Φ9.7*6.7mm omni-directional electret microphone

Sensitivity(1KHz, 0dB=1V/Pa): -32±3dB ; -34±3dB ;-36±3dB ; -38±3dB ;-40±3dB ;-42±3dB ; -44±3dB
Directivity: Omni-directional
Impedance: 2.2KΩ Max.
Current consumption: 0.5mA Max.
Operation voltage: 1.0~10V
S/N ratio: 60dB Min.
Sensitivity vs voltage: 3dB Max.@ VS=2.0V~1.5V
Standard test condition: 94dB S.P.L@1KHz VS=2.0V
Frequency: 20~16000Hz
