616E
Category：CONNECTOR
Release date：2018-11-26 16:11:25
Order

  • Details

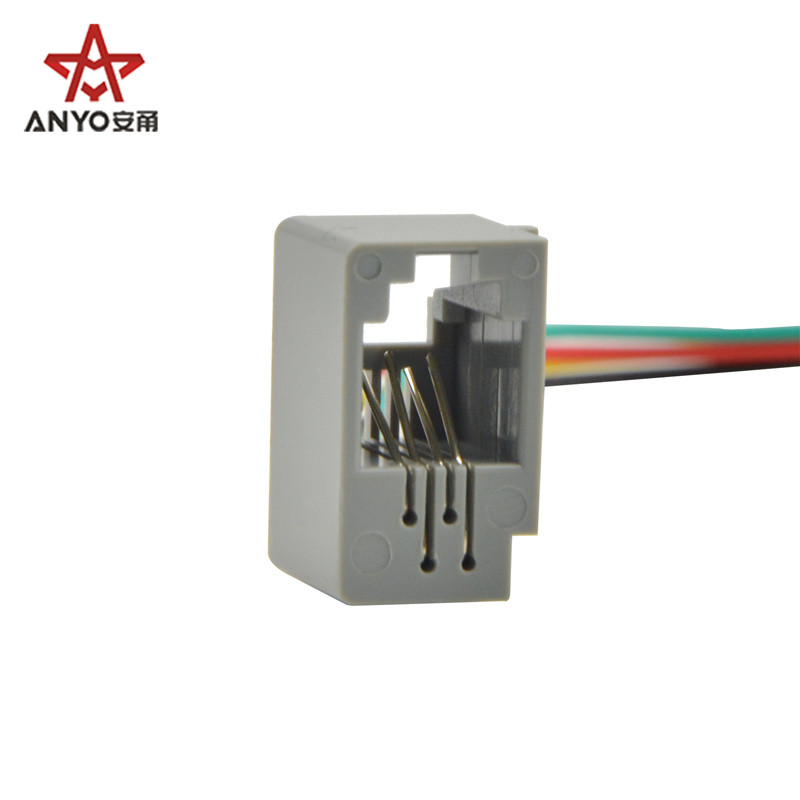

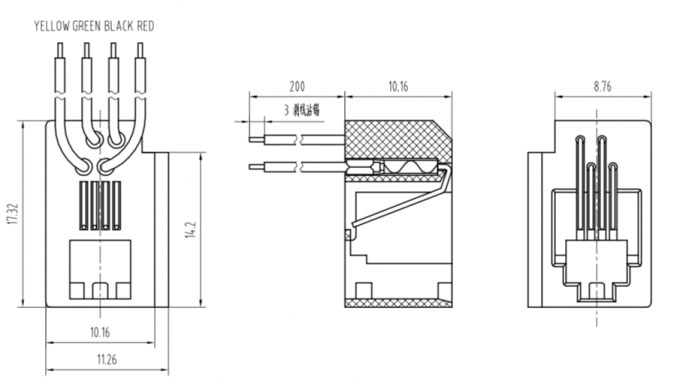

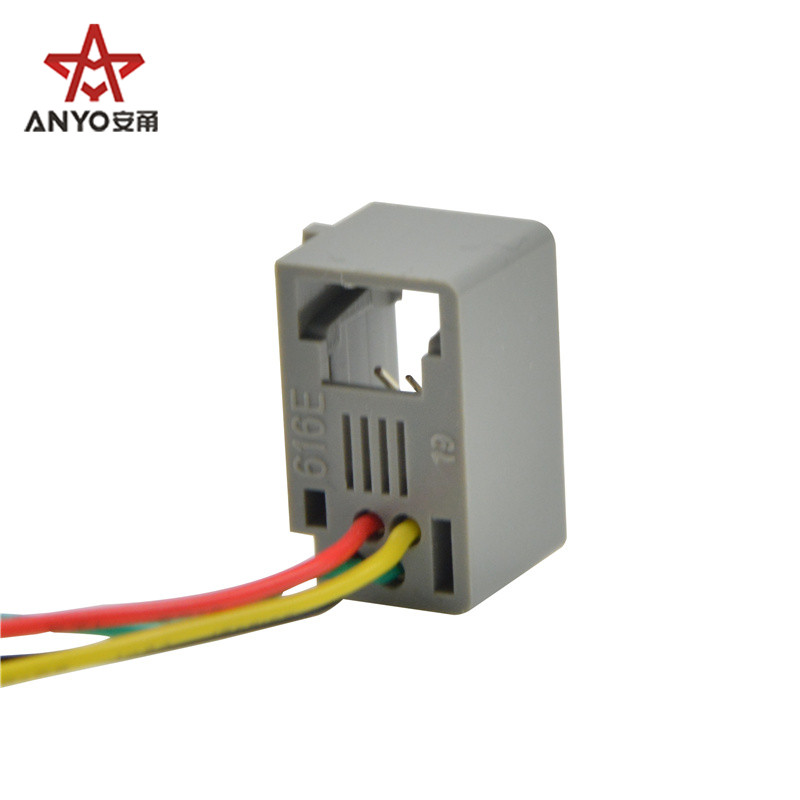

Wire jack 4P4C
Voltage rating: 125VAC RMS.
Current rating: 1.5A
Contact resistance: 30mΩ max.
Insulation resistance: 500MΩ DC500V
Dielectric withstanding resistance: 1000V AC RMS 50Hz.1 Min
Durability: 750 cycles min.
PCB retention pre-solder: 1LB min.
Storage temperature: -40℃~85℃
Operation temperature: 0℃~70℃
Housing: Glass filled polyester UL94V-0
Contact: Phosphor bronze Φ0.46mm
Plating: Gold plating over nickel
Wire styles: UL 1061 26AWG strands
