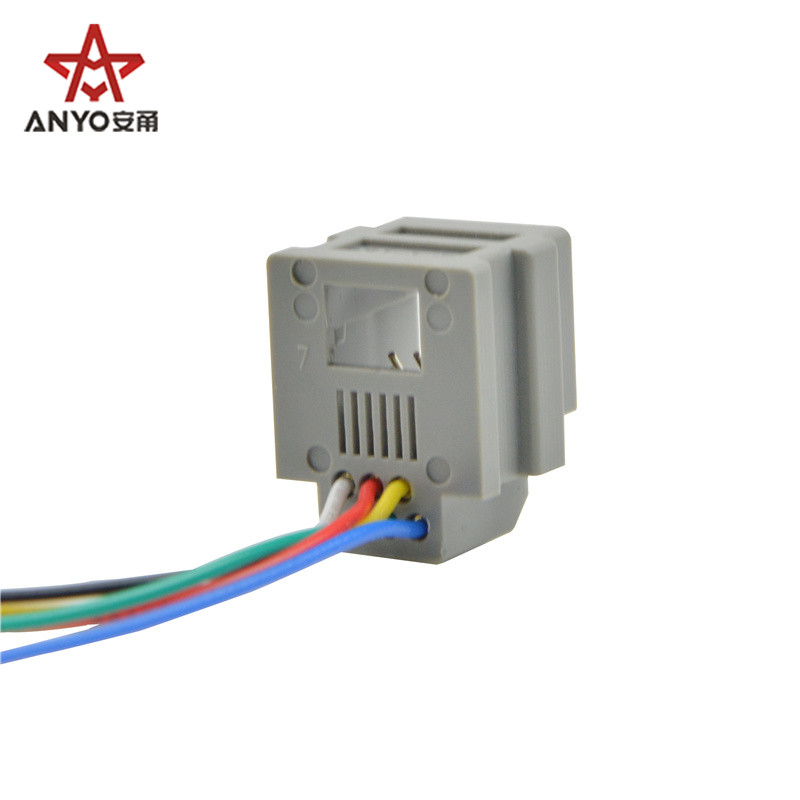

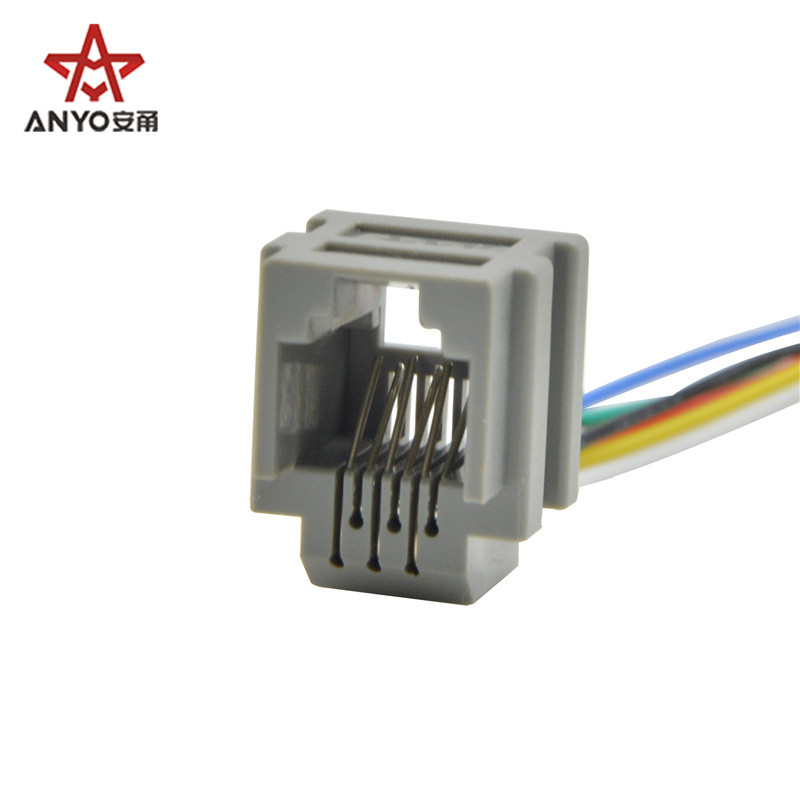

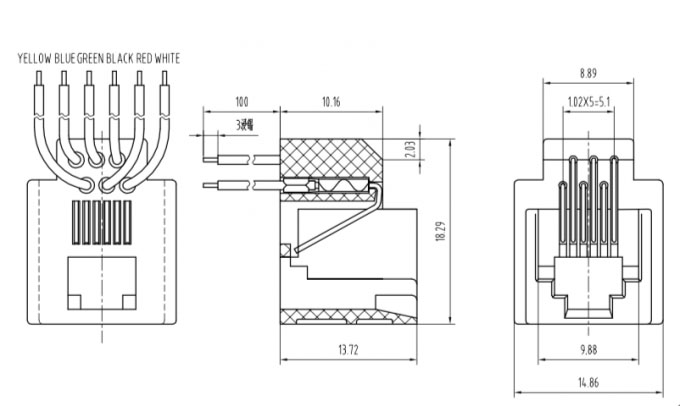

Wire jack 6P6C

Voltage rating: 125VAC RMS.
Current rating: 1.5A
Contact resistance: 30mΩ max.
Insulation resistance: 500MΩ DC500V
Dielectric withstanding resistance: 1000V AC RMS 50Hz.1 Min
Durability: 750 cycles min.
Extraction force of the wire: 25N min.
Storage temperature: -40℃~85℃
Operation temperature: 0℃~70℃

Housing: Glass filled polyester UL94V-0
Contact: Phosphor bronze Φ0.46mm
Plating: Gold plating over nickel
Wire styles: UL 1061 26AWG strands
