CONNECTOR

Loading...
M16
Category:CONNECTOR
Release date:2018-11-26 16:11:29

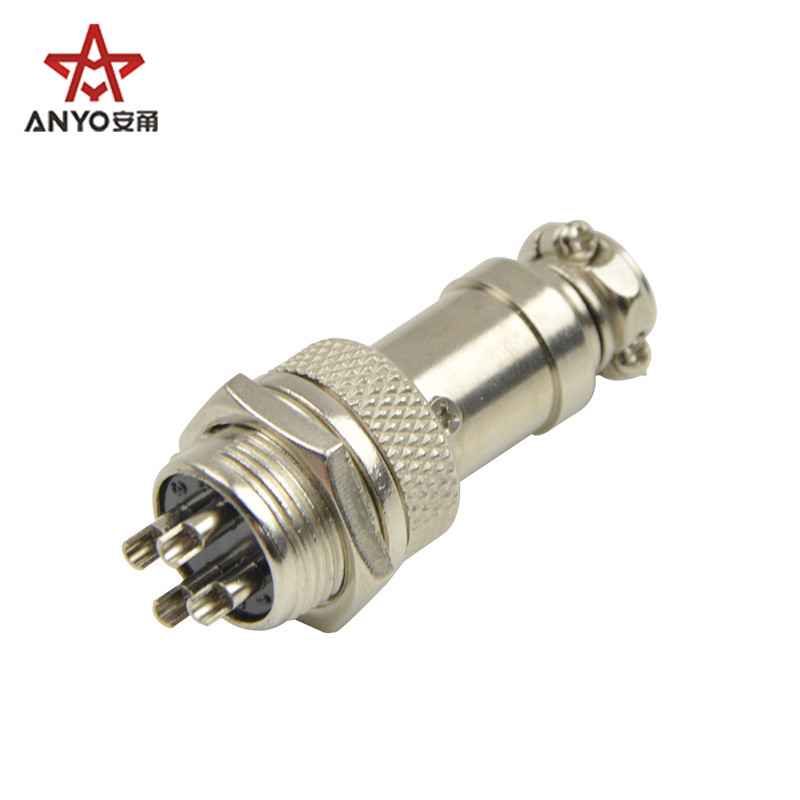

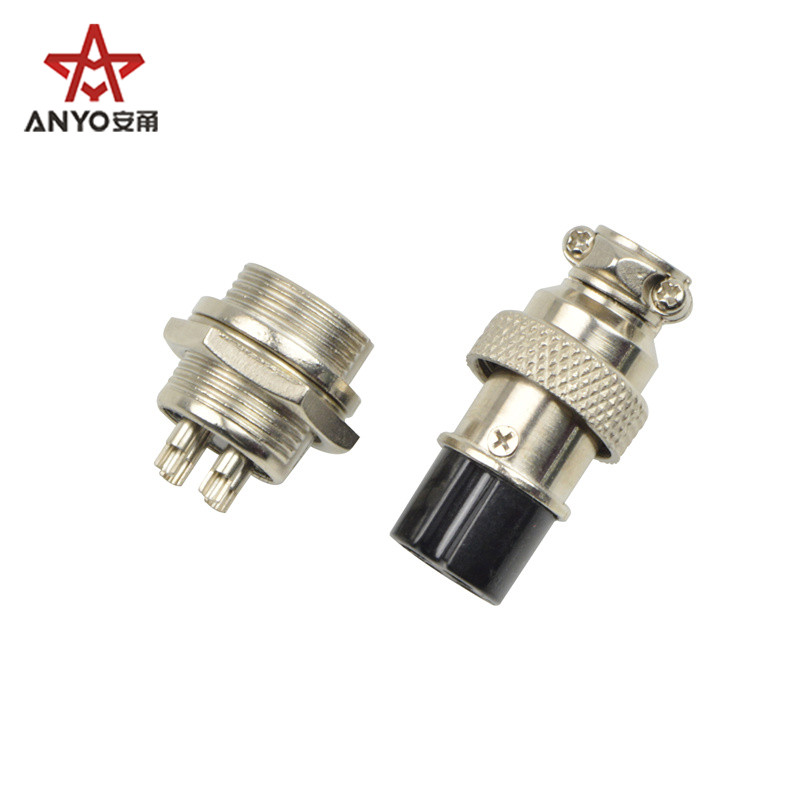

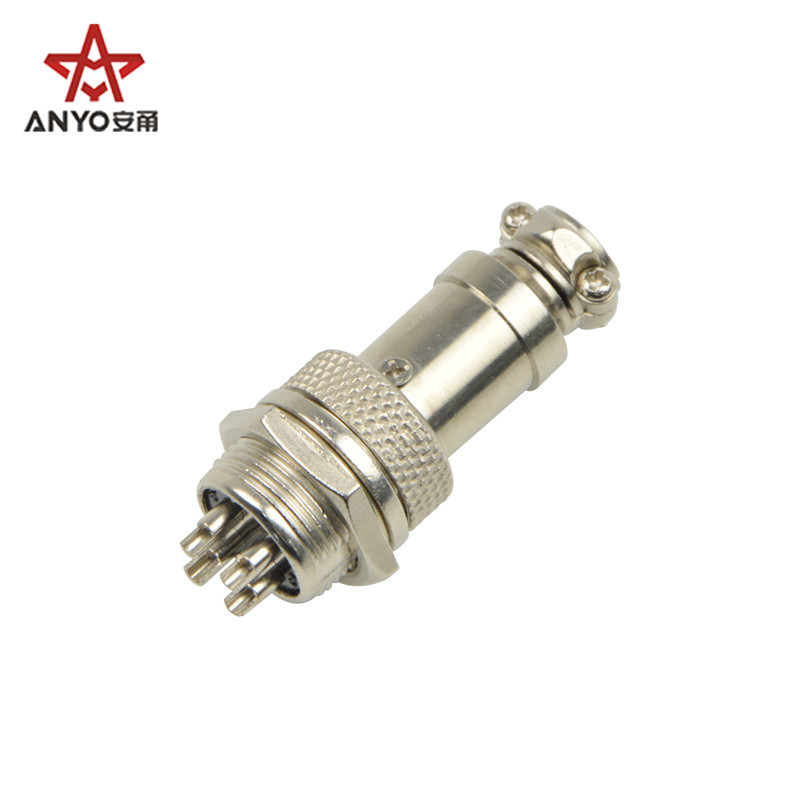

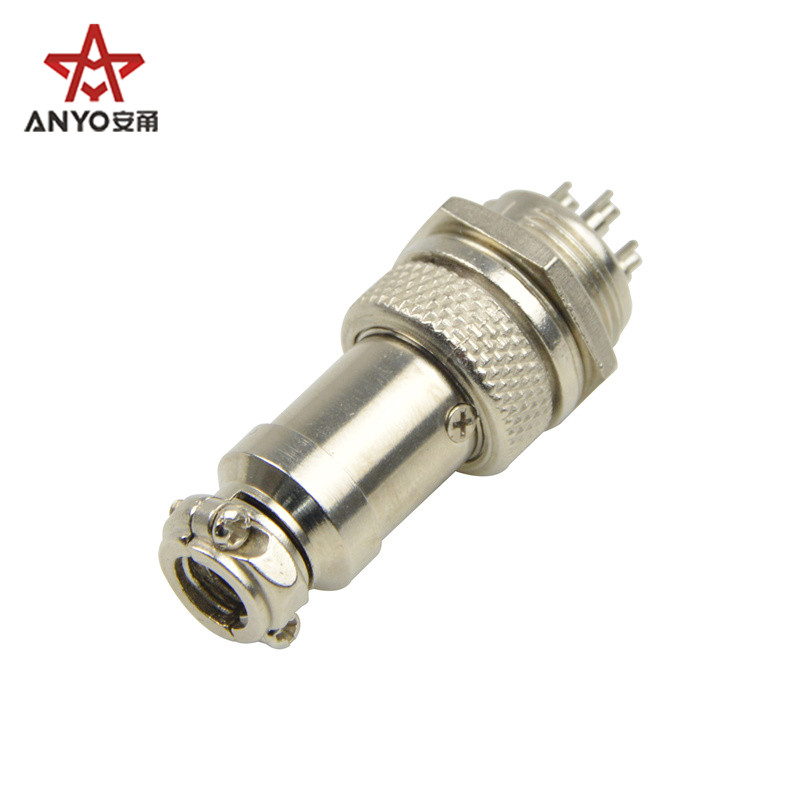

16mm din female / male aviation wire connectors

Waterproof: IP≥55
Rated voltage: 125V
Rated current: 2~4P—7A
                        5P—5A
                        6~10P—4A
Operation voltage: 200VAC
Withstanding voltage: 1500VAC
Insulation resistance: 2000MΩ At DC500V
Contact resistance: 10mΩ At DC1A
Solder cup mouth diameter: 2~4P—1.6mm
                                              5P—1.2mm
                                              6~10P—0.9mm
Solder diameter: 2~4P—2.45mm
                           5P—2mm
                           6~10P—1.15mm
