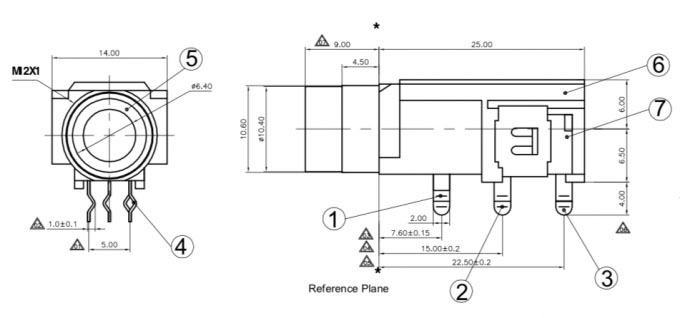

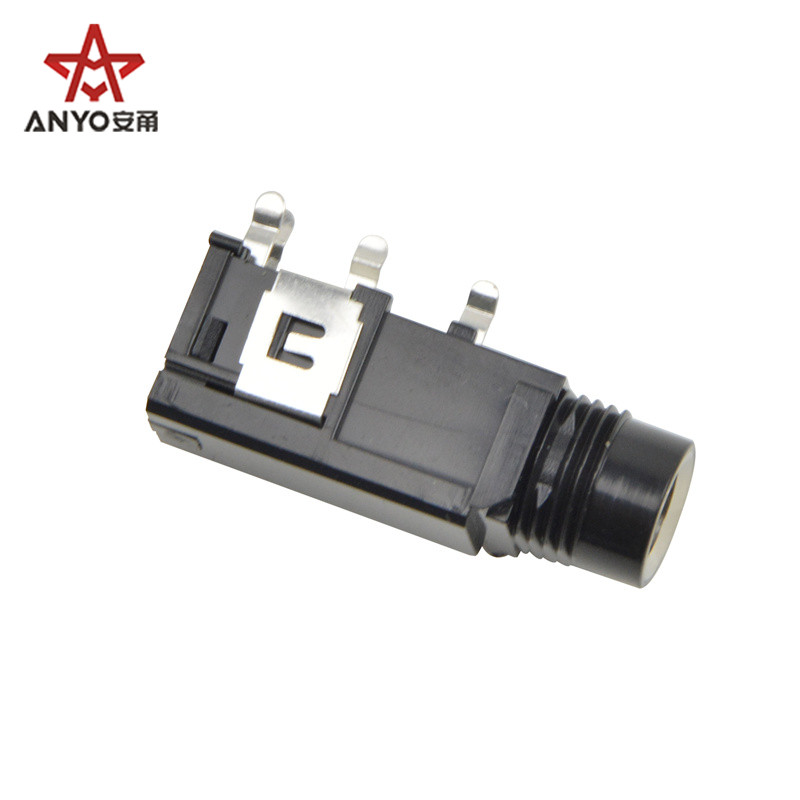

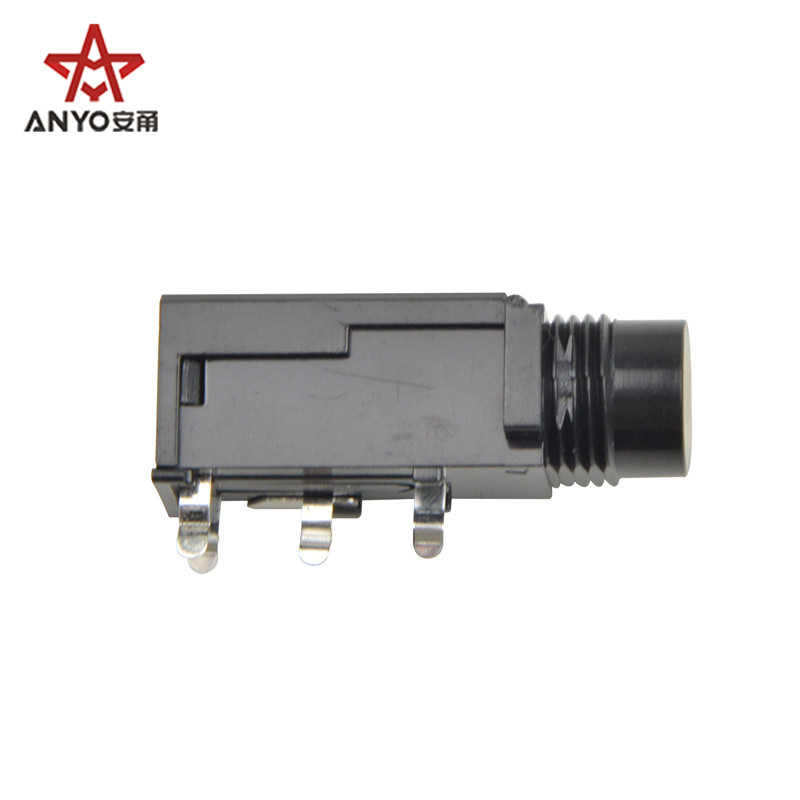

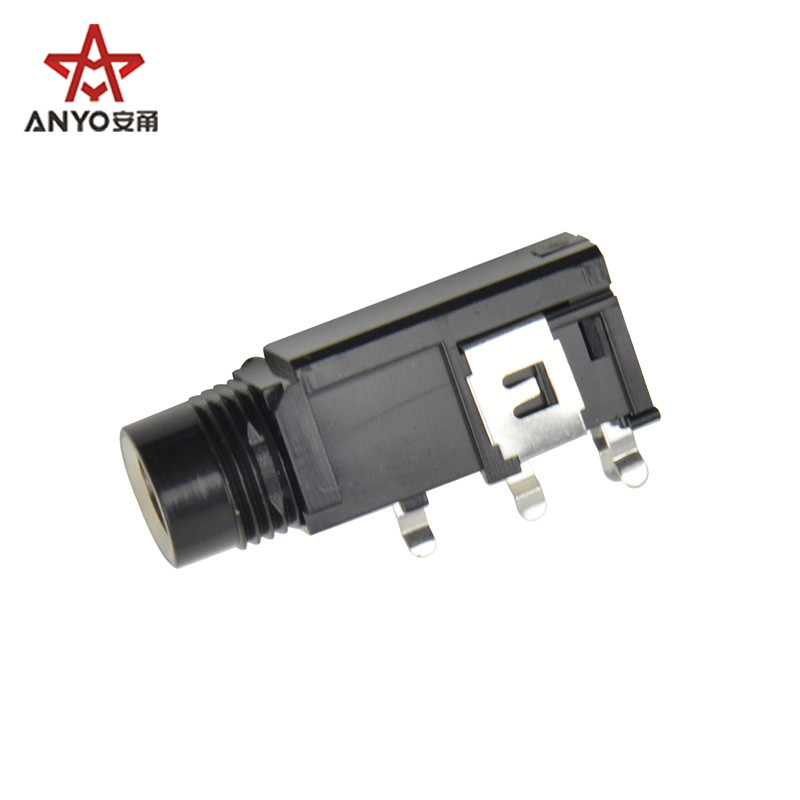

6.35mm stereo phone jack

Contact resistance: 30mΩ max.
Insulation resistance: 100MΩ Min.
Rated load: DC12V 1A
Relative humidity: ≤85%
Ambient temperature: -25℃~70℃

Terminal: Brass
Outer contact: Brass
Housing: PBT
Back cover: PBT
