IC-2.54-7.62
Category:CONNECTOR
Release date:2018-11-27 09:11:57

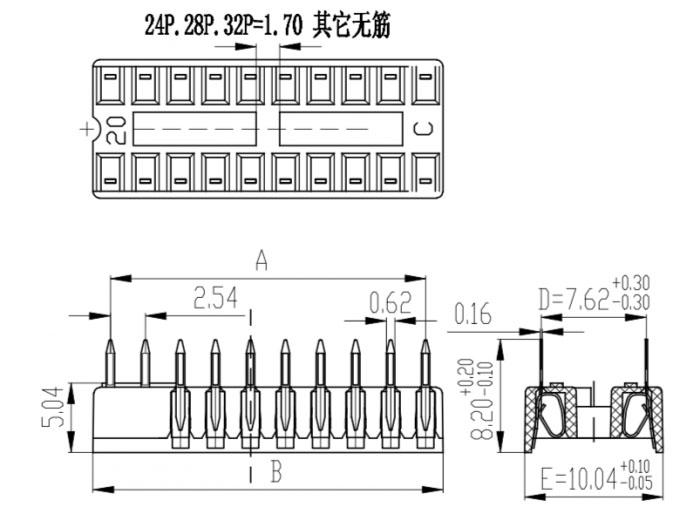

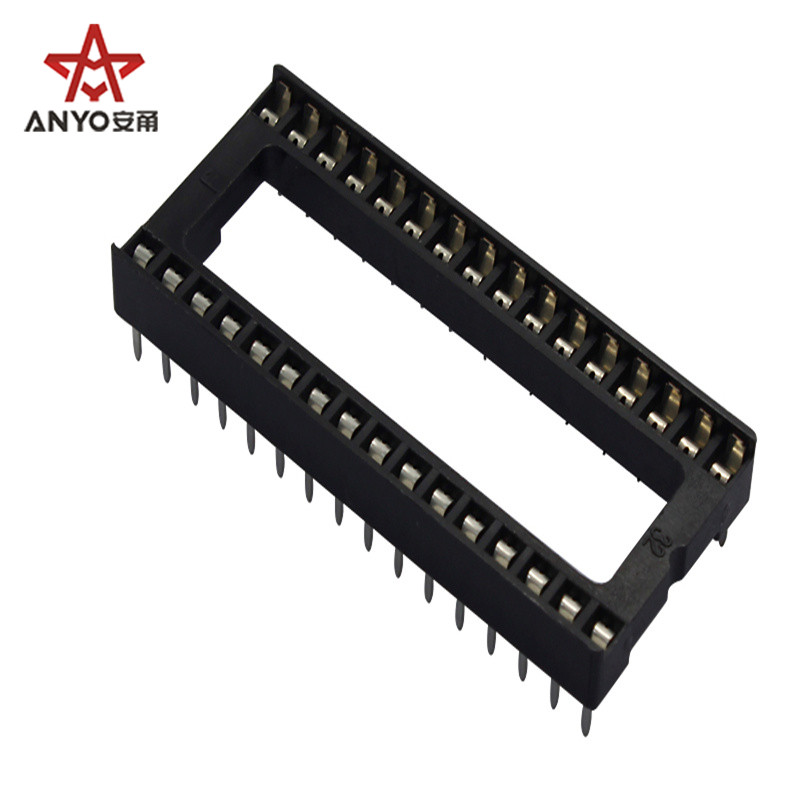

2.54mm IC socket

Current rating: 1A
Voltage: AC500V for 1 minute
Insulator resistance: 1000MΩ Min. At DC500V
Contact resistance: 30mΩ Max. DC100mA
Operating temperature: -55℃~105℃

Contact: Phosphor Bronze
Housing: PBT+20% glass fiber
