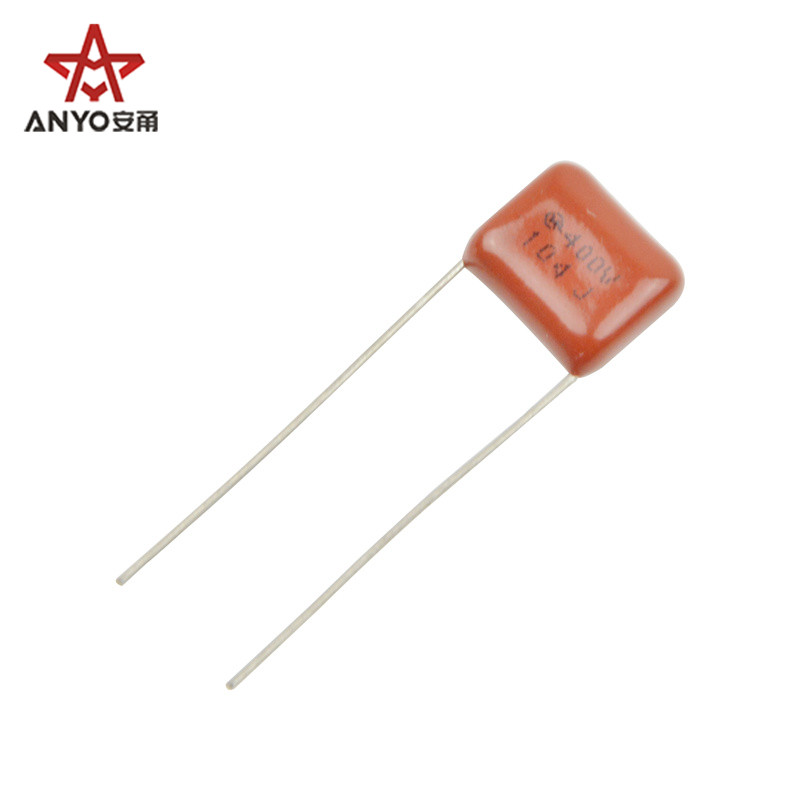

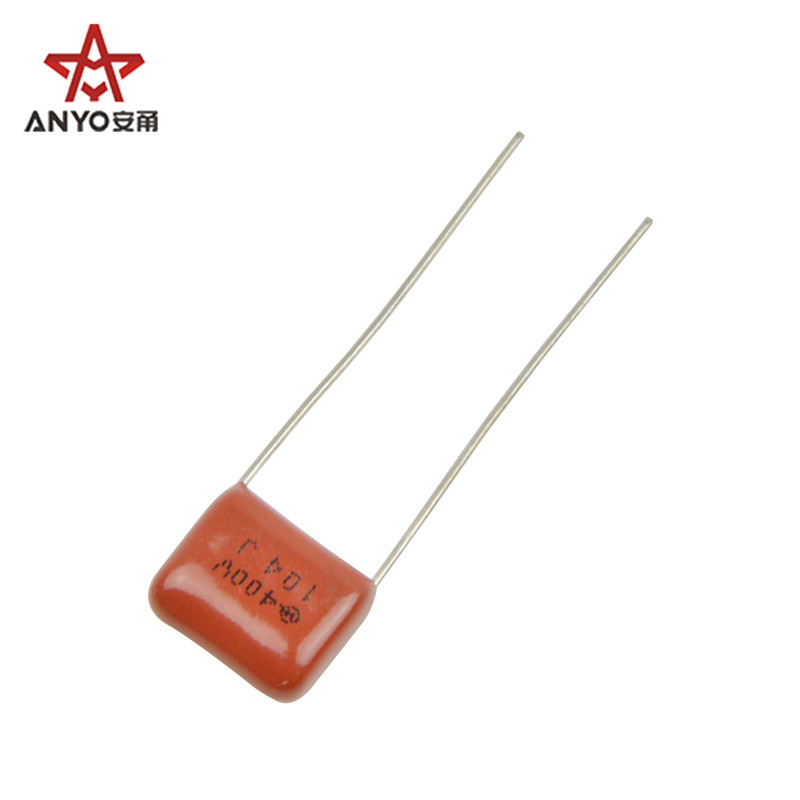

Metallized polyester film capacitor
Reference standard: GB 7332 (IEC60384-2)
Rated voltage: 100VDC, 250VDC, 400VDC, 630VDC
Rated temperature: +85℃
Operating temperature range: -55℃~+105℃
Capacitance range: 0.01μF~2.2μF
Capacitance tolerance: ±5%(J); ±10%(Κ)
Dissipation factor: 1.0% max. (25℃, 1KHz)
Insulation resistance: R>30000MΩ, CR<0.33μF  (20+5℃ , 100V, 1min)
                                   R>10000MΩ, 1.0μF≥CR≥0.33μF
                                   R>1000MΩ, CR>0.1μF
Voltage proof: 1.5UR(5s)
