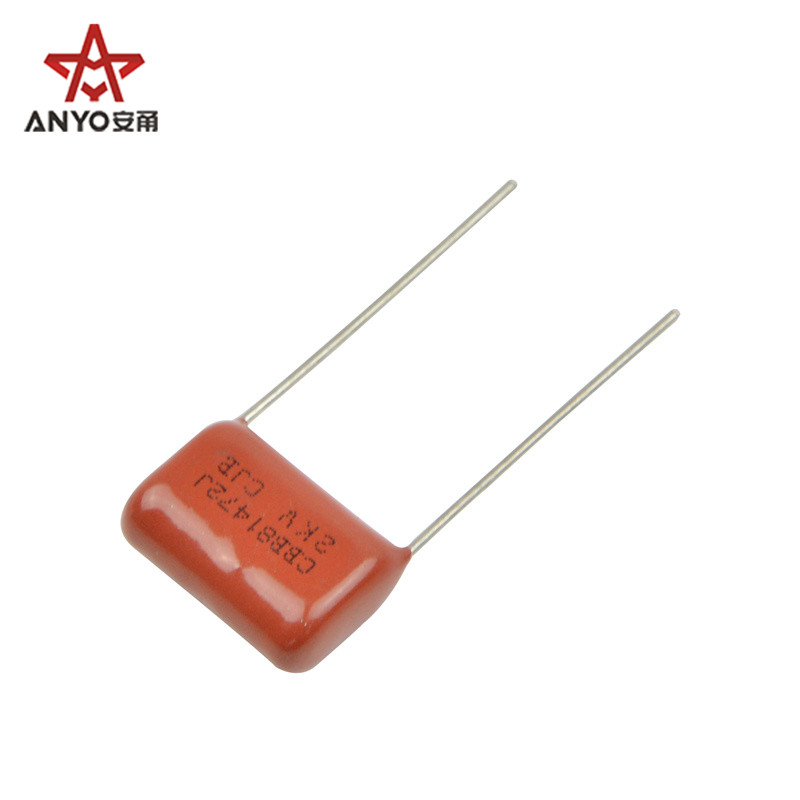

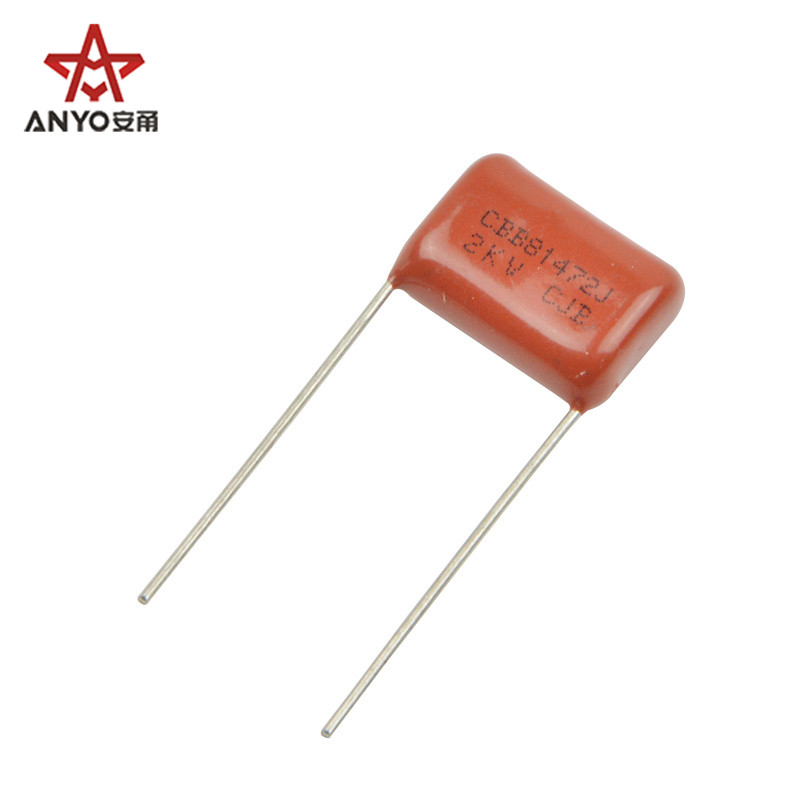

High voltage metallized polypropylene film capacitor
Reference standard: GB/T 14579 (IEC60384-17)
Rated voltage: 1000VDC, 1200VDC, 1600VDC, 2000VDC
Rated temperature: +85℃
Operating temperature range: -40℃~+85℃
Capacitance range: 0.001μF~0.1μF
Capacitance tolerance: ±2%(G); ±5%(J); ±10%(Κ)
Dissipation factor: 0.1% max. (25℃, 1KHz)
Insulation resistance: R≥25000MΩ, CR≤1.0μF (20℃ , 1min)
Voltage proof: 1.75UR(5s) |
|
