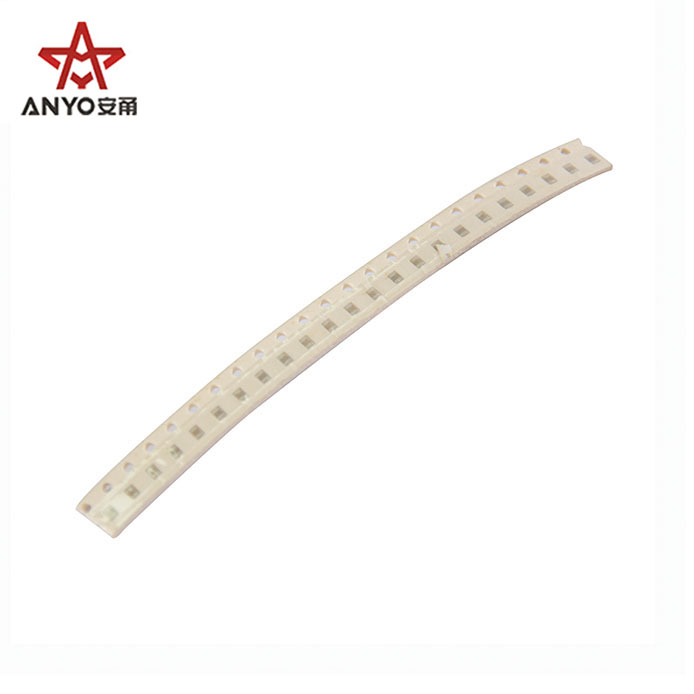

SMD multilayer ceramic capacitor
|
Capacitance range |
0.2pF~10nF |
100pF~4.7μF |
1000pF~10μF |
|
Capacitance tolerance |
Preferred ±5%, ±10%.
For values≤10pF, Preferred tolerance is ±5%pF, also ±0.25pF available |
Preferred ±10%, ±20% |
+80/~20% |
|
Operating temperature range |
-55℃~125℃ |
-55℃~125℃ |
-30℃~85℃ |
|
Temperature characteristic |
0±30ppm℃ |
Within ±15% |
Within +22/-82% |
|
Rated voltage |
25V,50V,100V,200V |
6.3V,10V,16V,25V,50V,100V |
10V,16V,25V,50V |
|
Dissipation factor and "Q" |
CR≥30pF, Q≥1000
CR<30pF, Q≥400+20 |
For 6.3V: DF≤5.0%;
For 16V and 10V: DF≤3.5%
For 25V min.: DF≤2.5% |
For 10V: 12.5% max;
For 16V 9.0% max
For 25V min.: 5.0% max. |
|
Insulation resistance |
more than 10GΩ |
10GΩ min. or 500ΩF min. whichever is less |
10GΩ min. or 500ΩF min. whichever is less |
|
Dielectric withstanding voltage |
250% rated voltage |
250% rated voltage |
250% rated voltage |
|
Test voltage |
250% rated voltage |
1±0.2Vrms |
1±0.2Vrms |
|
Test frequency |
For values≥1000pF: 1KHz
For values≤1000pF: 1MHz1 |
1KHz |
1KHz |
|
|
