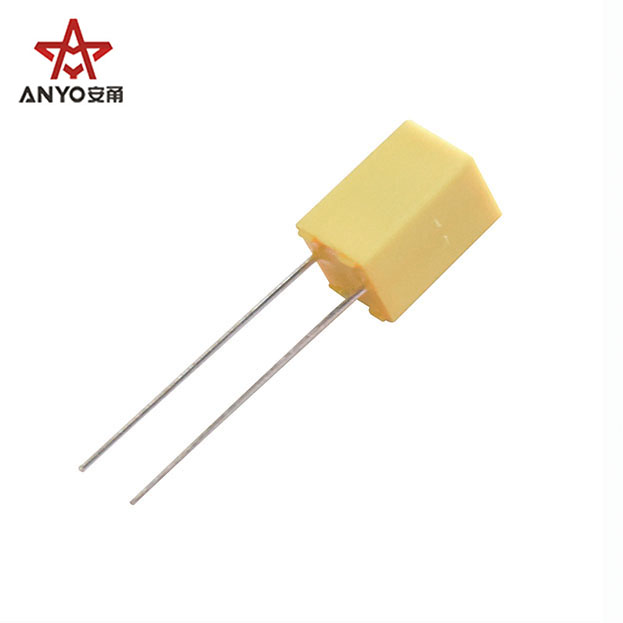

Metallized polyester film capacitor
Reference standard: GB/T 7332-1996 (IEC60384-2)
Rated voltage: 50VDC, 63VDC, 100VDC, 250VDC, 400VDC, 630VDC
Operating temperature range: -40℃~+100℃
Capacitance range: 1000pF~1.0μF
Capacitance tolerance: ±5%(J); ±10%(Κ); ±20%(Μ)
Dissipation factor: 1.0% max. (20℃, 1KHz)
Voltage proof: 1.6UR(5s) |
|
