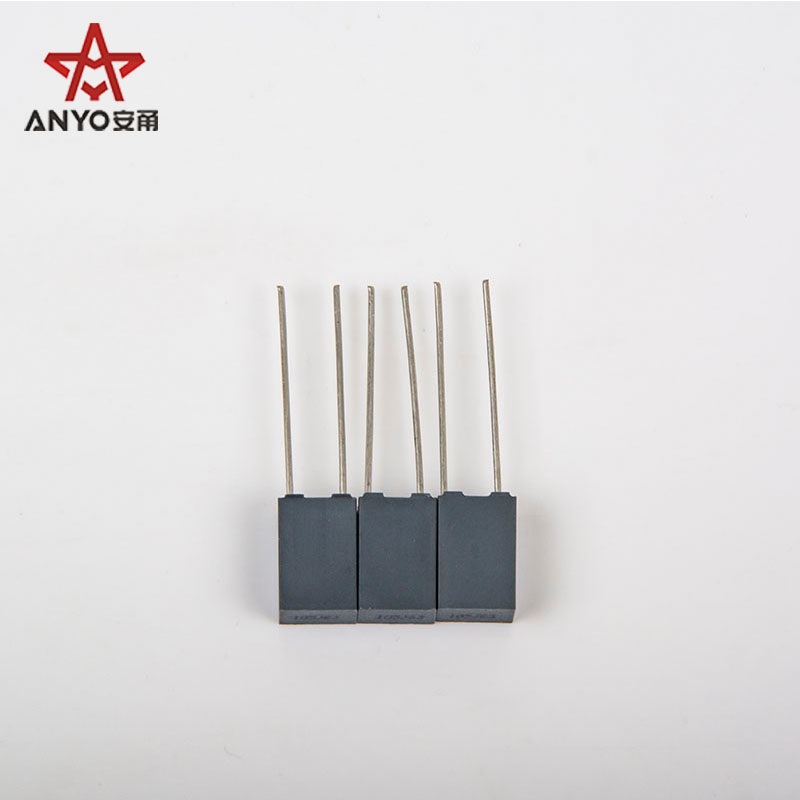

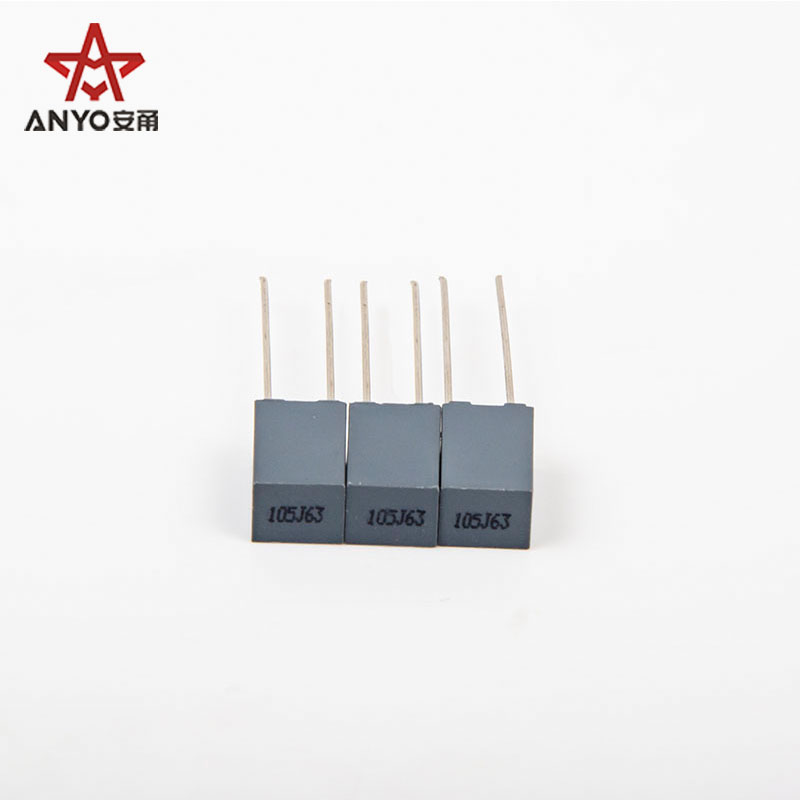

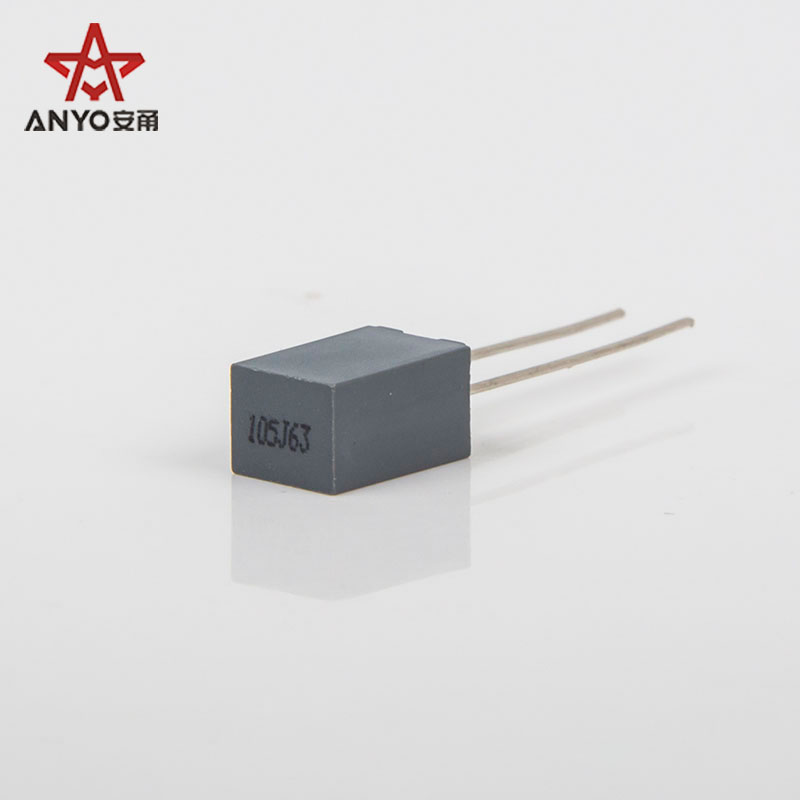

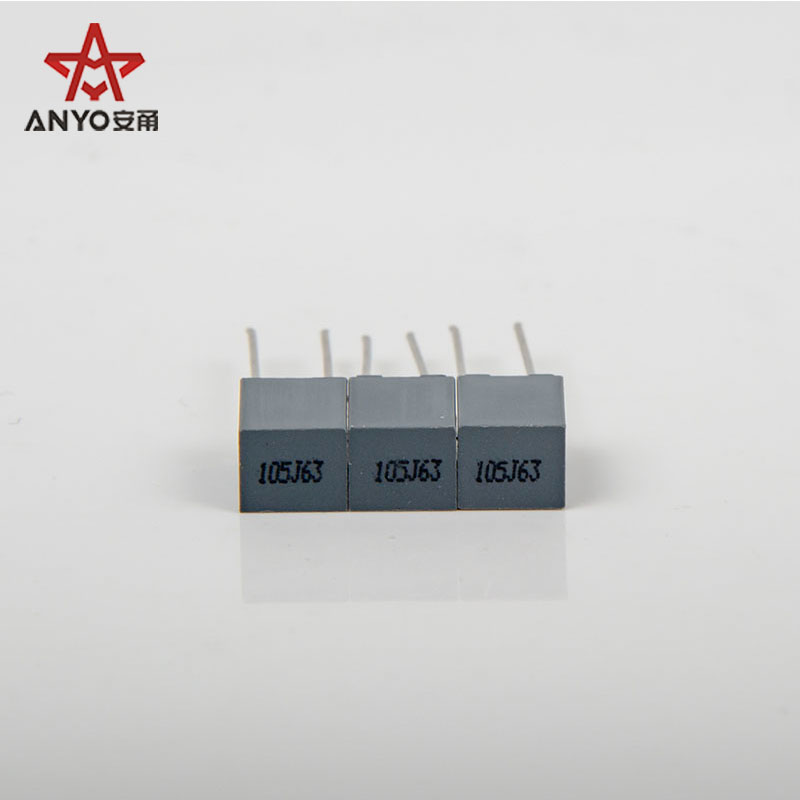

Metallized polyester film capacitor- Box type
Reference standard: IEC60384-2
Rated voltage: 63VDC, 100VDC, 160VDC, 250VDC, 400VDC
Rated temperature: +125℃
Operating temperature range: -40℃~+110℃
Capacitance range: 0.001μF~2.2μF
Capacitance tolerance: ±2%(G); ±3%(H); ±5%(J); ±10%(Κ)
Dissipation factor: <1μF: DF≤0.8% (1KHz 25±5℃)
≥1μF: DF≤1% (1KHz 25±5℃)
Insulation resistance: R≥15000MΩ, CR≤0.33μF (25℃ , 1min)
R≥5000s, CR>0.33μF (25℃ , 1min)
Voltage proof between terminals: 1.6Un (2s)
Voltage proof between terminals to case: 2.0Un (5s)
|
|
