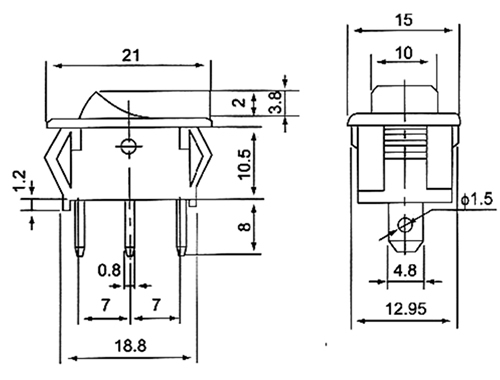

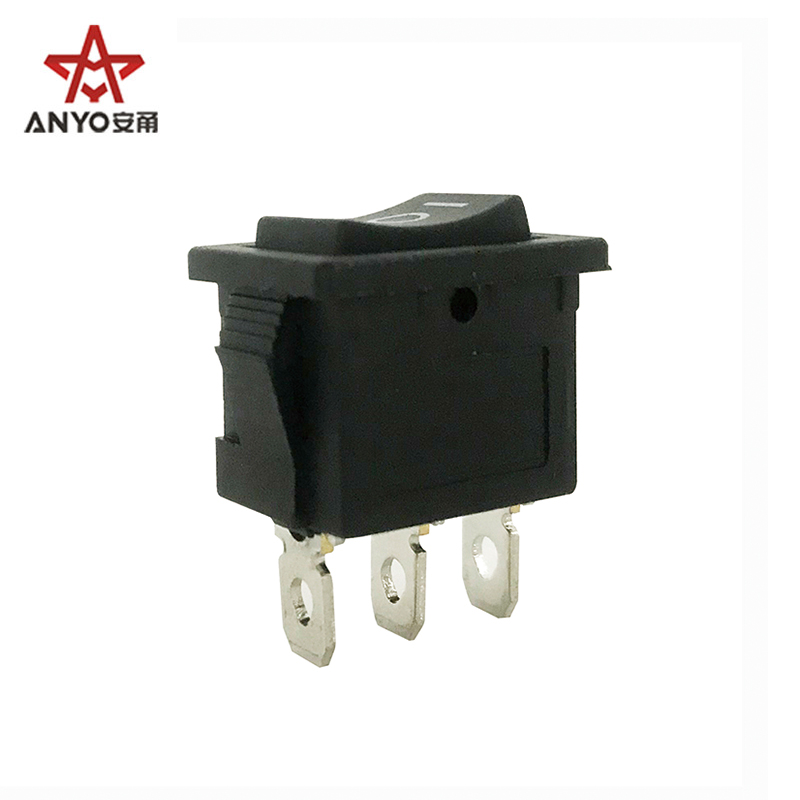

KCD1-103B 3 positions on-off-on 3pin SPDT rocker switch

Actuator (non-lighted): Nylon 66 94V-2

Actuator (Lighted): Polycarbonate

Case: Nylon 66 94V-2

Spring: Steel wire

Contacts: Silver alloy

Movable arm: Silver-plated copper alloy

Terminals: Tin-plated copper alloy

Ratings: 6A 10A 250V 125VAC

Electrical life at rated load: 10000(VDE); 6000(UL)

Dielectric strength: 1500vac/5S

Insulation resistance: ≥100MΩ

Initial contact resistance: ≤50MΩ

Temperature range: -20℃~85℃
