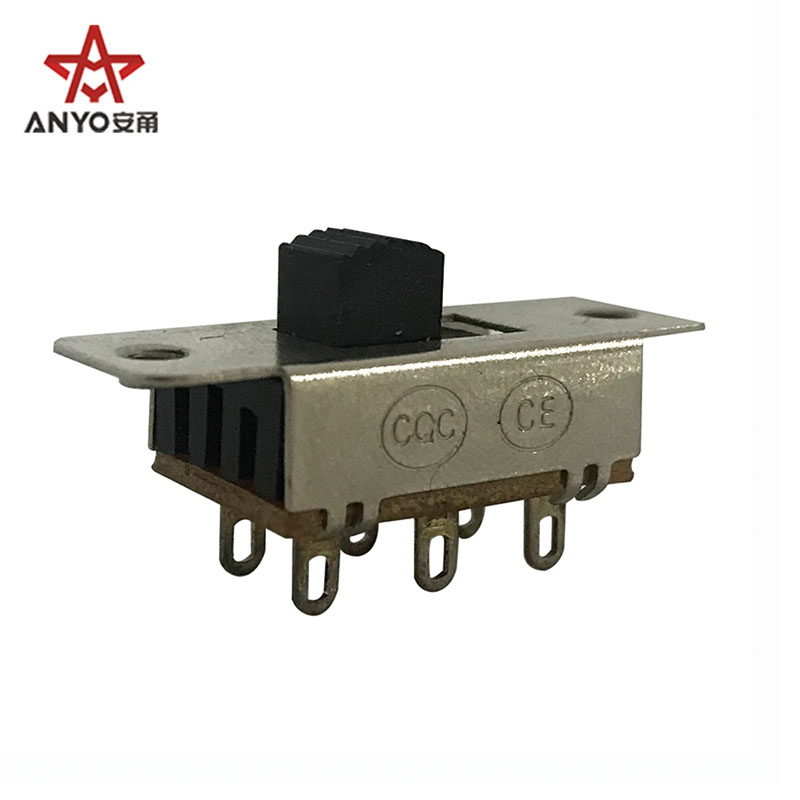

Slide switch / Toggle switch

Temperature: -25℃~80℃

Rated load: DC 12V 50mA

Contact resistance: ≤100mΩ

Insulation resistance: ≥100MΩ DC250V

Withstanding voltage: AC500V for 1 minute

Electrical life: 50000 cycles above (Load)

Mechanical Life: 100000 cycles (No load)

Operating force range: 100/160/250gf

Ambient humidity used: ≤85% RH

Solder ability: 245℃±5℃ 3S

Withstand soldering temperature: 260℃±5℃ 3S
