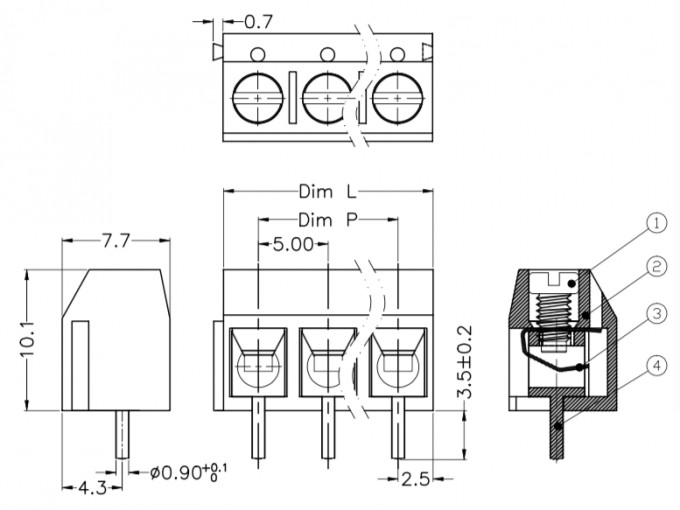

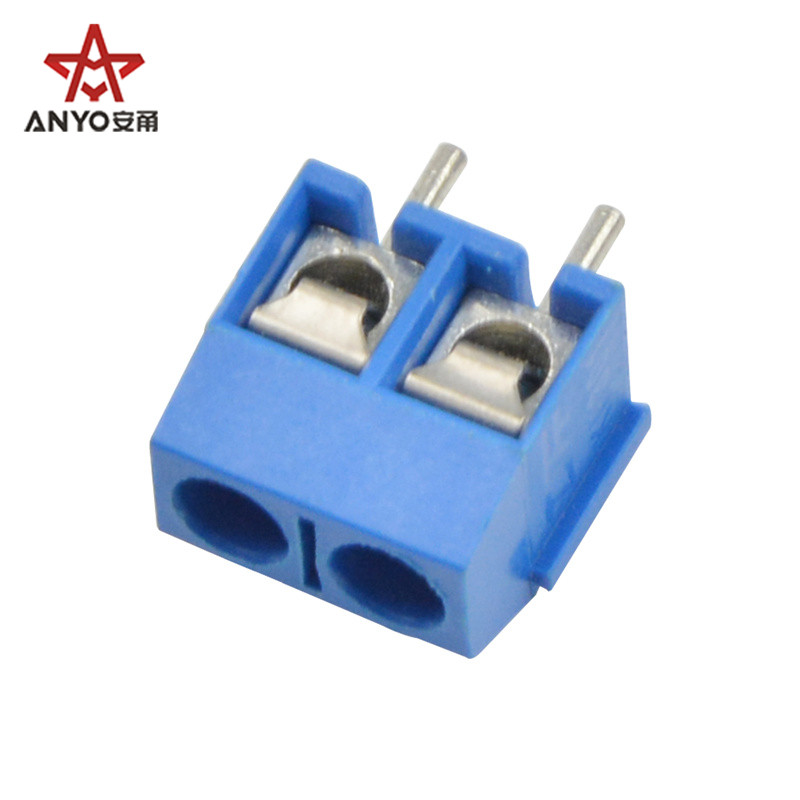

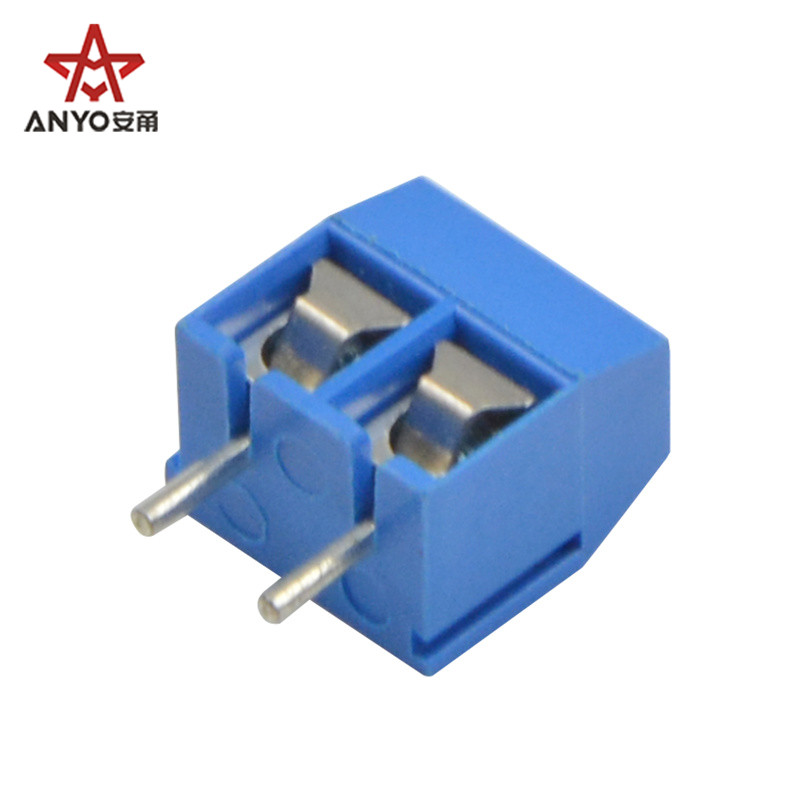

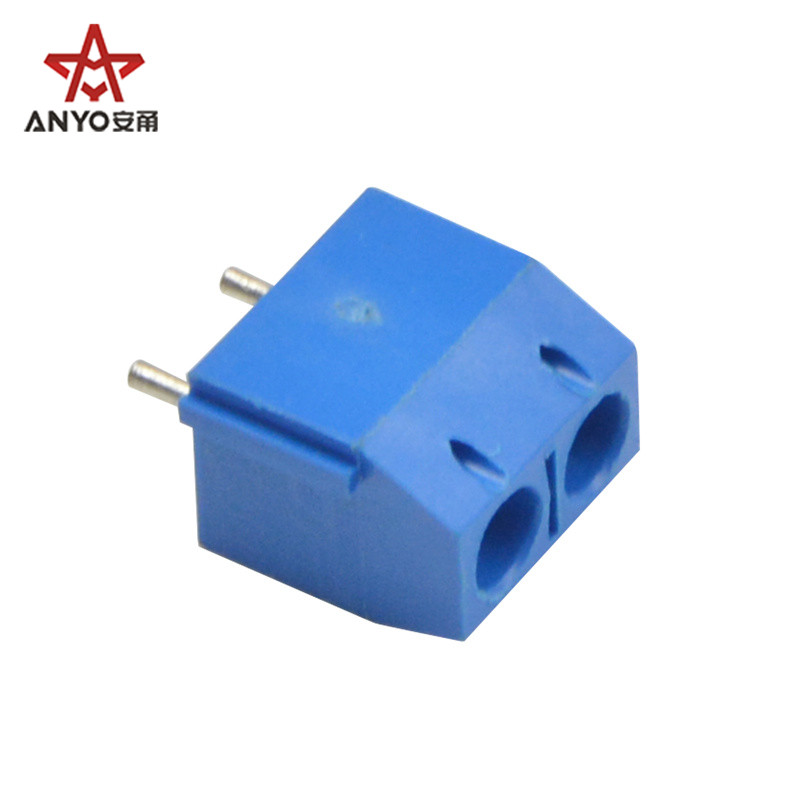

5mm pitch PCB terminal block
Voltage rating: 300V(UL), 250V(IEC)
Current rating: 12A, 17.5A
Insulation resistance: 500MΩ/DC500V
Withstanding voltage: AC2000V/1min.
Wire range: 22-14AWG 2.5mm²
Strip length: 4.5~5mm
Torque: 0.4N.m(3.54Lb.in)
Operating temperature: -40℃~+105℃
Soldering temperature: 250℃ ±5℃ / 5S
![](../upload/img/201811271024487580.jpg)
|
