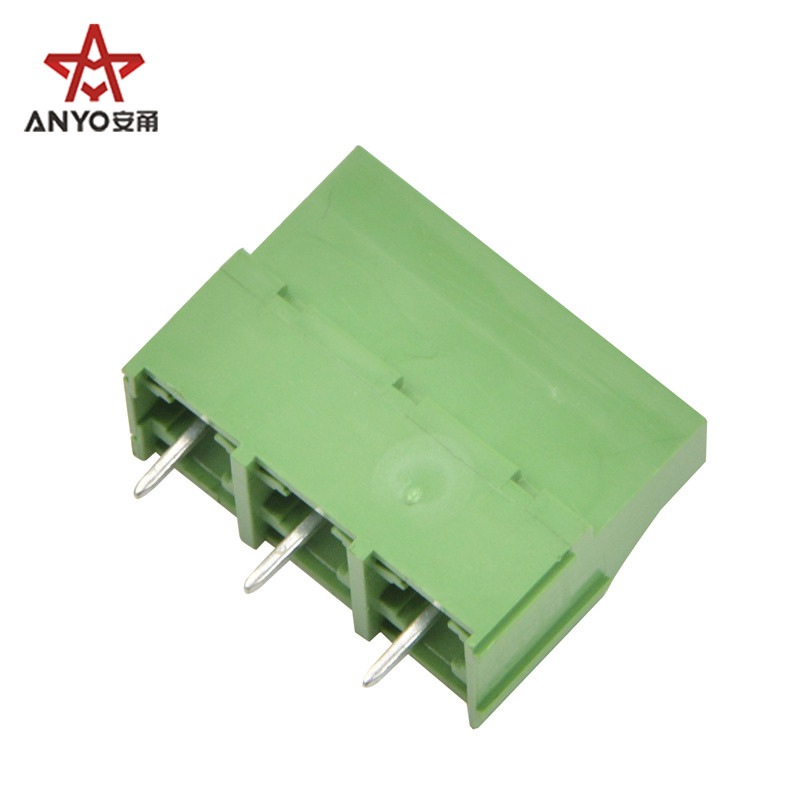

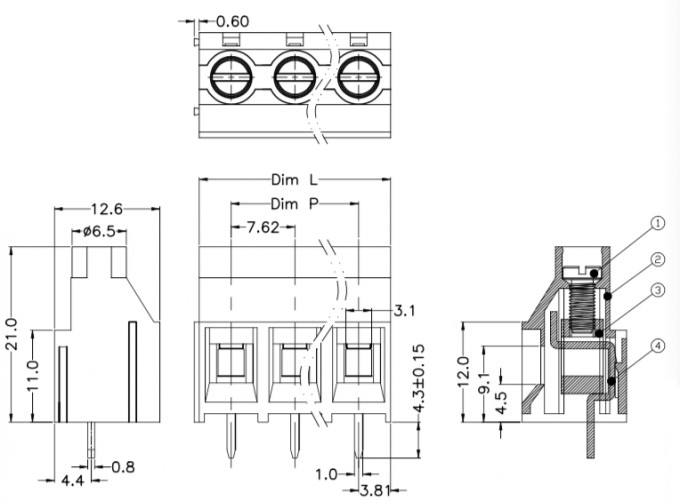

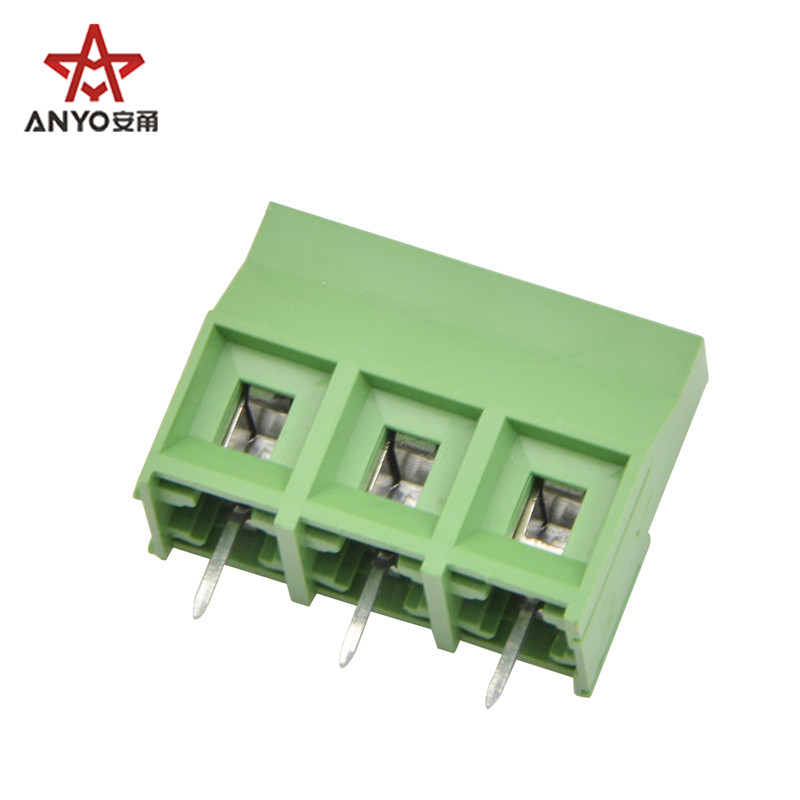

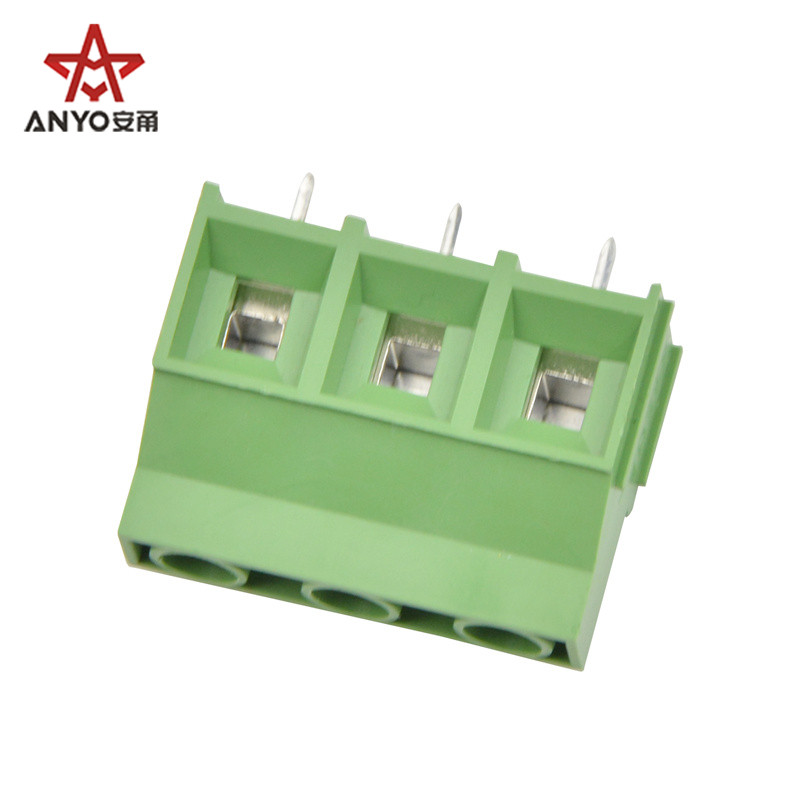

7.62mm pitch PCB terminal block

Voltage rating: 300V / 630V

Current rating: 30A / 32A

Insulation resistance: 500MΩ/DC500V

Withstanding voltage: AC3000V/1min.

Wire range: 26-10AWG 4.0mm²

Strip length: 6~7mm

Torque: 0.5N.m(4.43Lb.in)

Operating temperature: -40℃～+105℃

Soldering temperature: 250℃ ±5℃ / 5S
