TERMINAL BLOCK

Loading...
KF141R-2.54
Category:TERMINAL BLOCK
Release date:2018-11-27 10:11:26

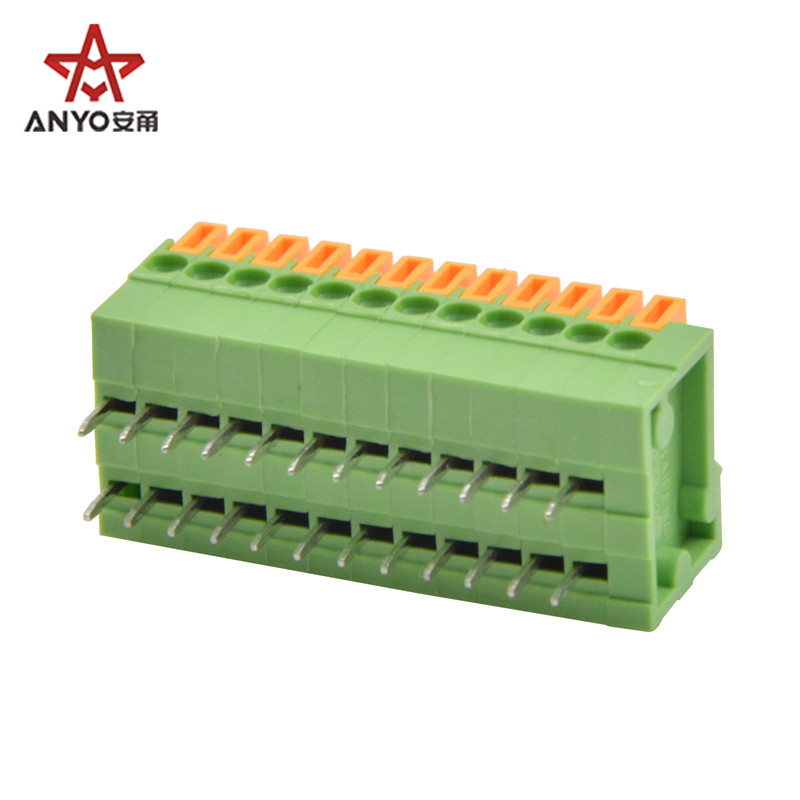

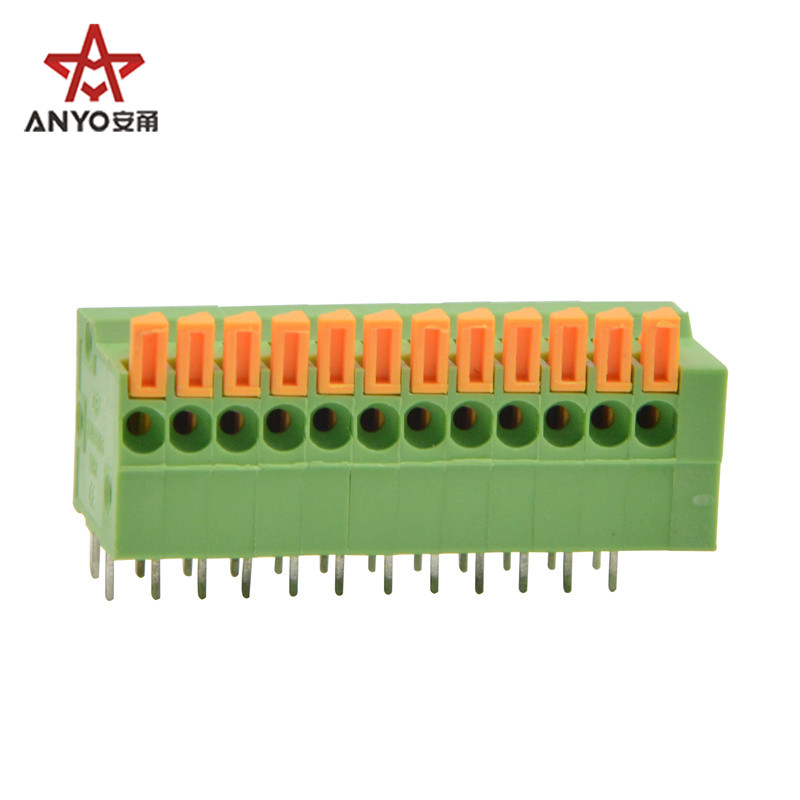

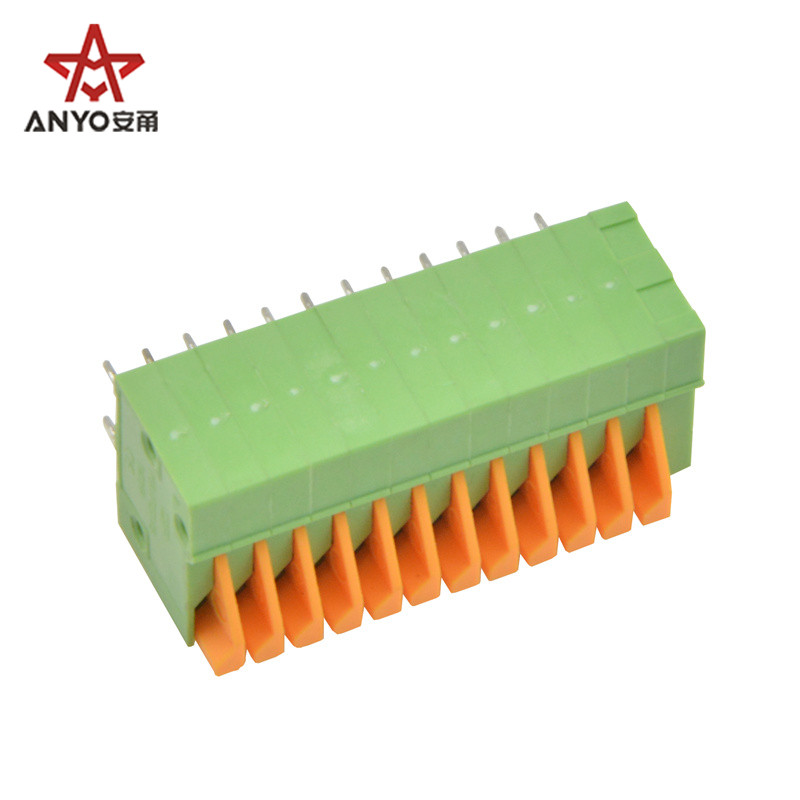

2.54mm pitch screwless terminal block

Voltage rating: 150V(UL), 130V(IEC)

Current rating: 5A, 6A

Insulation resistance: 500MΩ/DC500V

Withstanding voltage: AC1250V/1min.

Wire range: 24-18AWG 1.0mm²

Strip length: 11mm

Operating temperature: -40℃~+105℃

Soldering temperature: 250℃ ±5℃ / 5S
