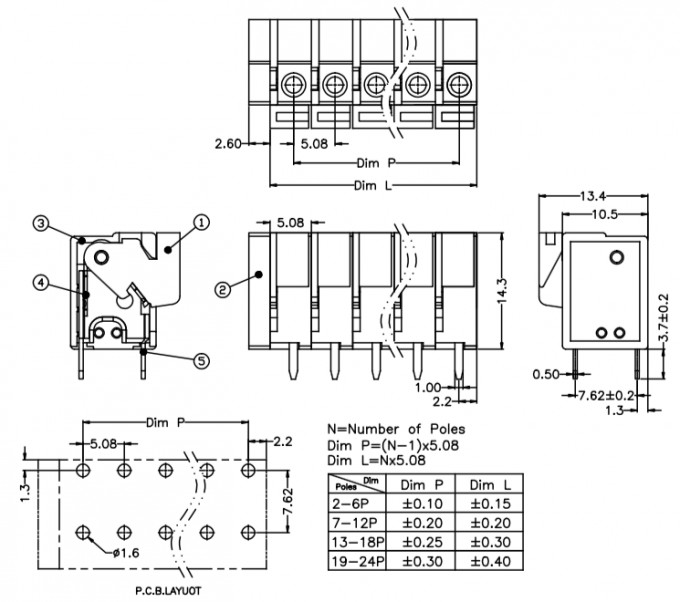

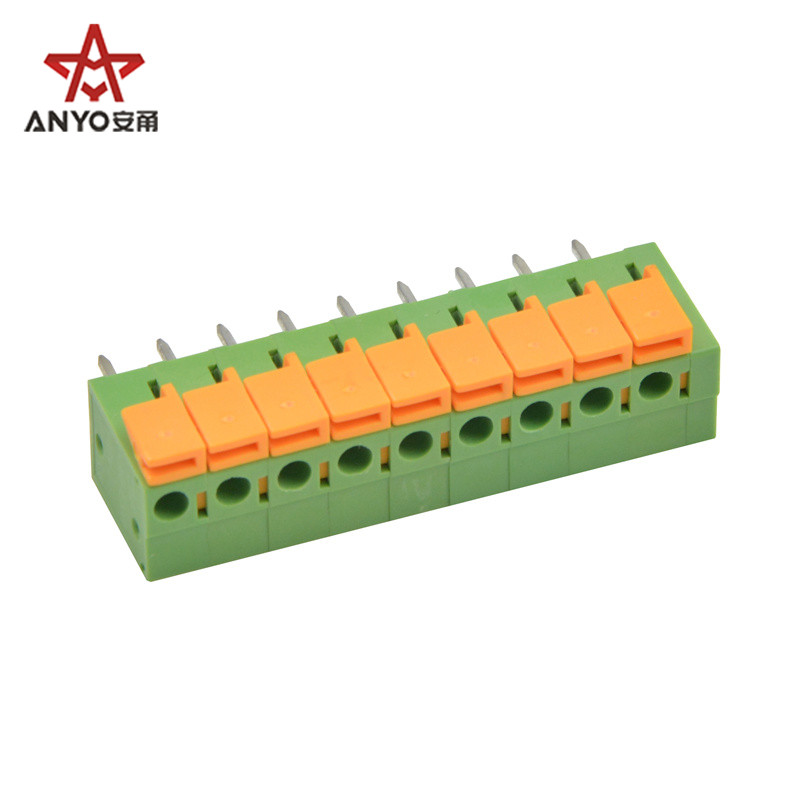

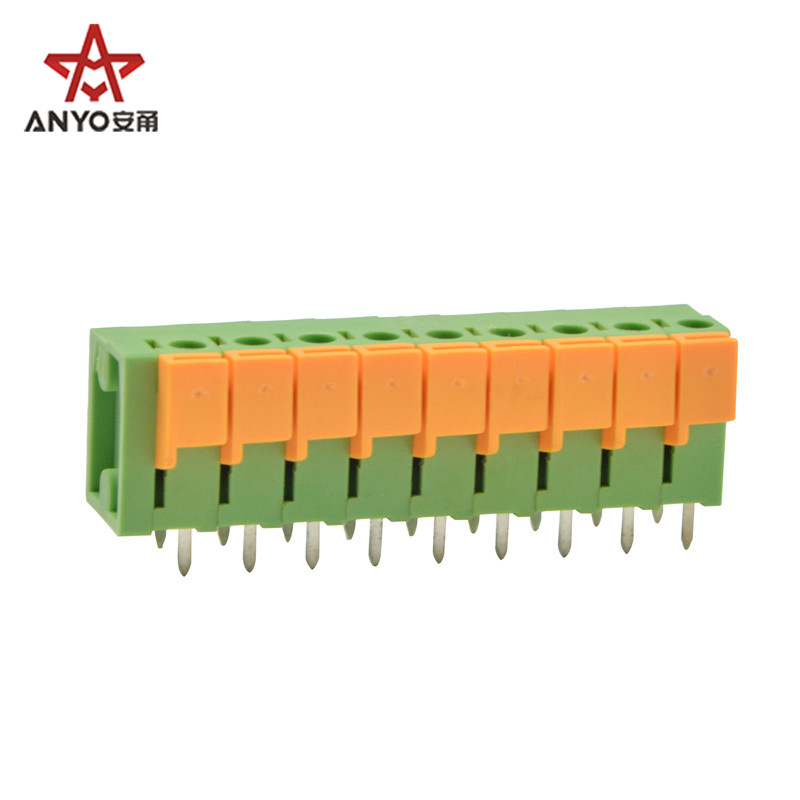

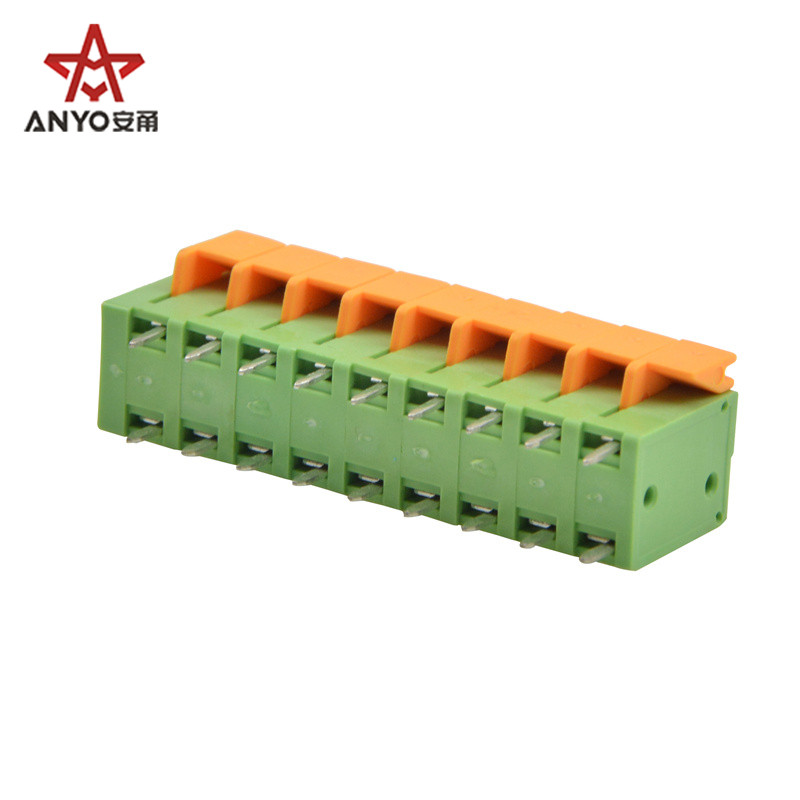

5.08mm pitch screwless terminal block
Voltage rating: 300V(UL), 250V(IEC)
Current rating: 10A, 15A
Insulation resistance: 500MΩ/DC500V
Withstanding voltage: AC2000V/1min.
Wire range: 22-14AWG 1.5mm²
Strip length: 10mm
Operating temperature: -40℃～+105℃
Soldering temperature: 250℃ ±5℃ / 5S
|
