KF2EKR-5.08
Category:TERMINAL BLOCK
Release date:2018-11-27 10:11:13

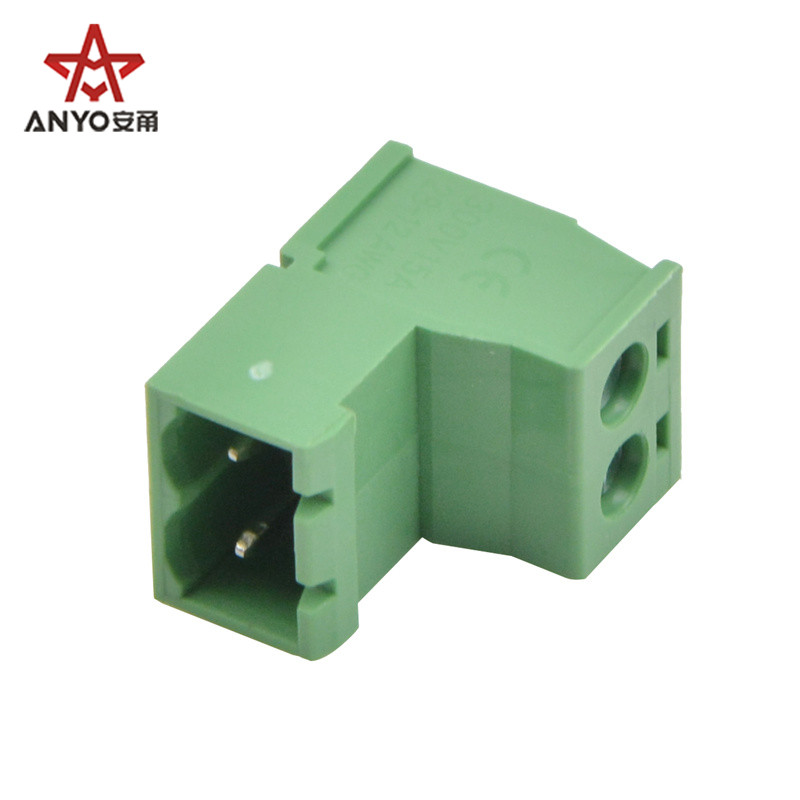

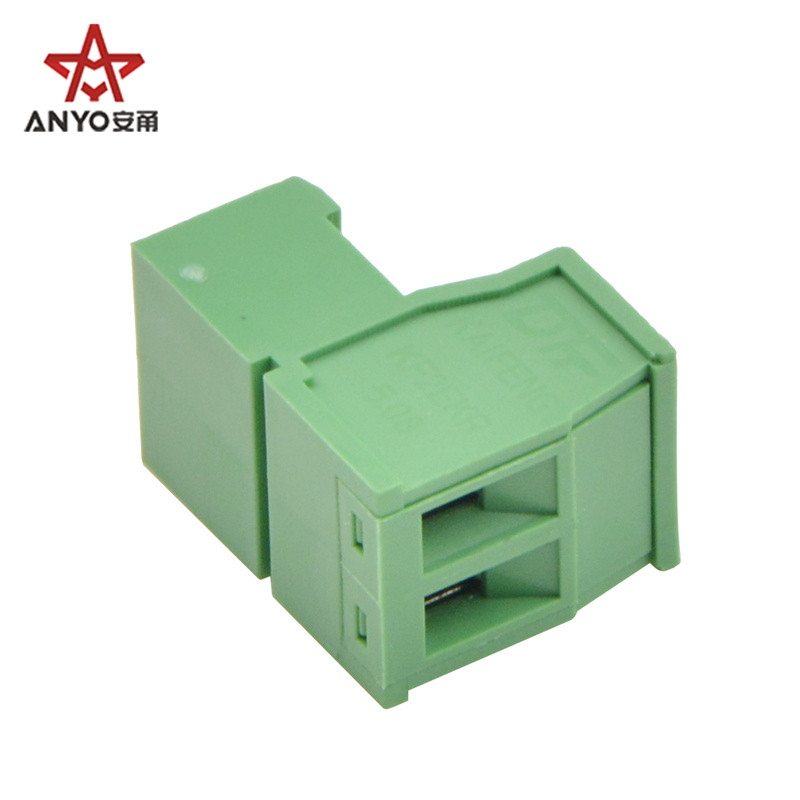

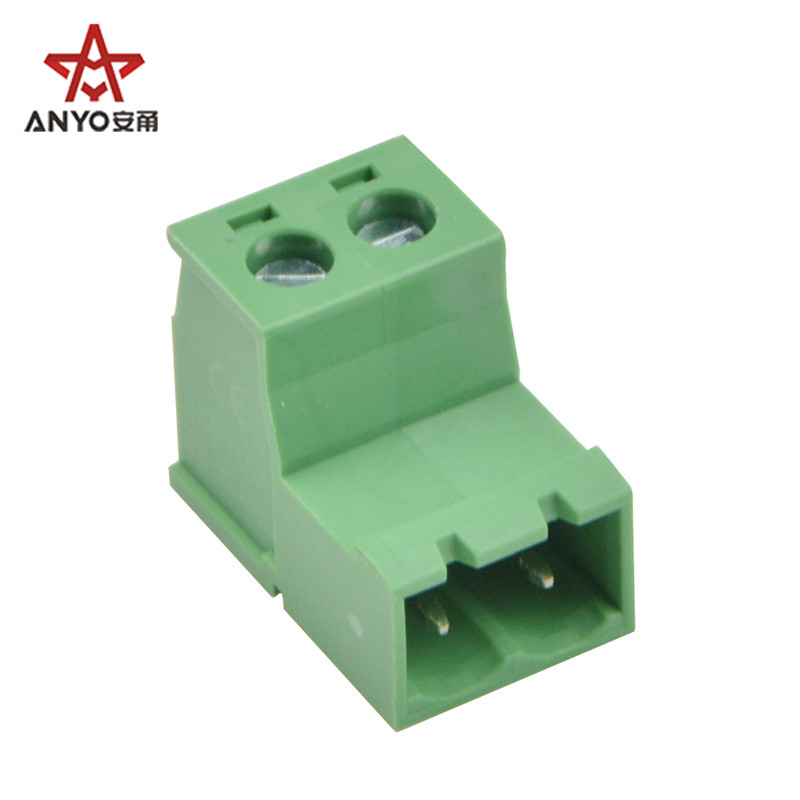

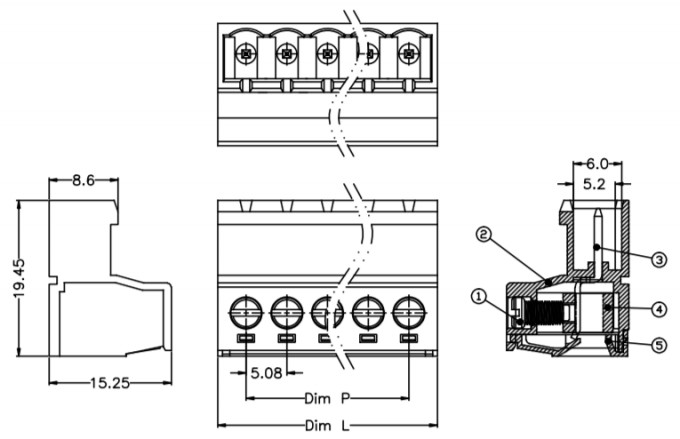

5.08mm pitch pluggable terminal block

Voltage rating: 300V(UL), 320V(IEC)

Current rating: 15A, 20A

Insulation resistance: 500MΩ/DC500V

Withstanding voltage: AC2000V/1min.

Wire range: 28-12AWG 2.5mm²

Strip length: 7~8mm

Torque: 0.5N.m(4.43Lb.in)

Operating temperature: -40℃~+105℃

Soldering temperature: 250℃ ±5℃ / 5S
