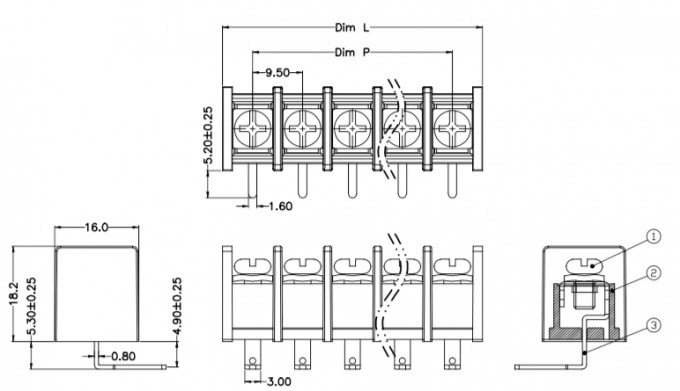

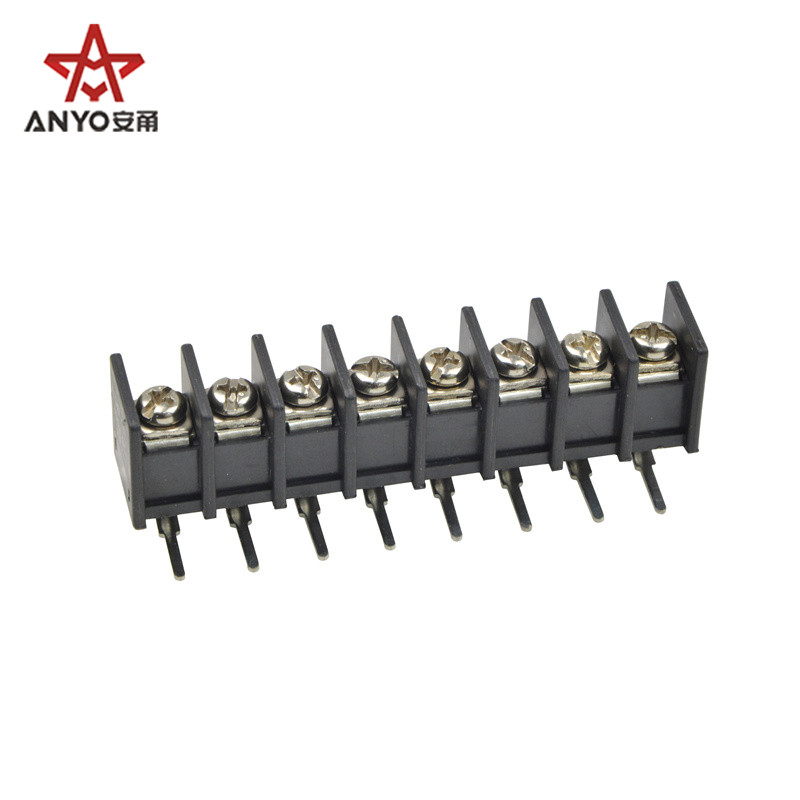

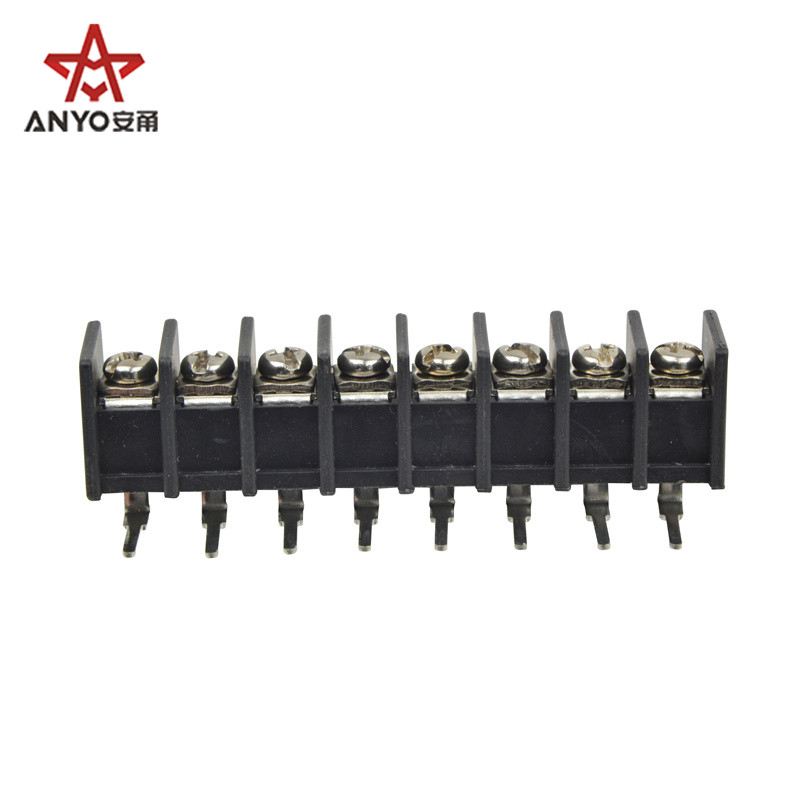

9.5mm pitch barrier terminal block

Voltage rating: 300V(UL), 750V(IEC)

Current rating: 25A, 32A

Insulation resistance: 500MΩ/DC500V

Withstanding voltage: AC2000V/1min.

Wire range: 22-12AWG 4.0mm²

Torque: 1.2N.m(10.53Lb.in)
