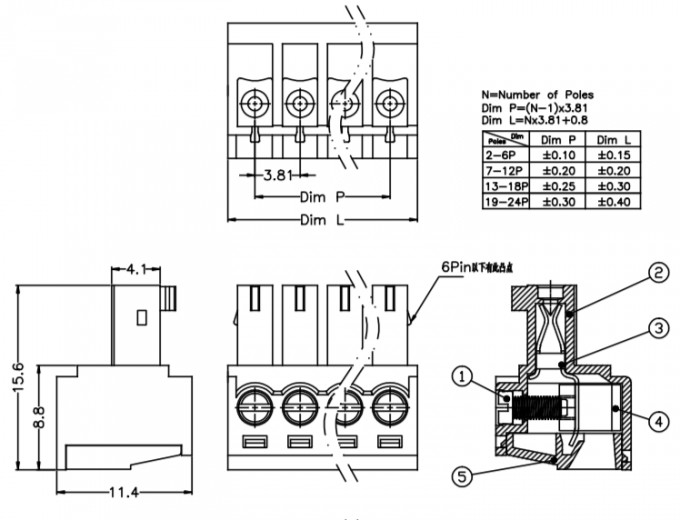

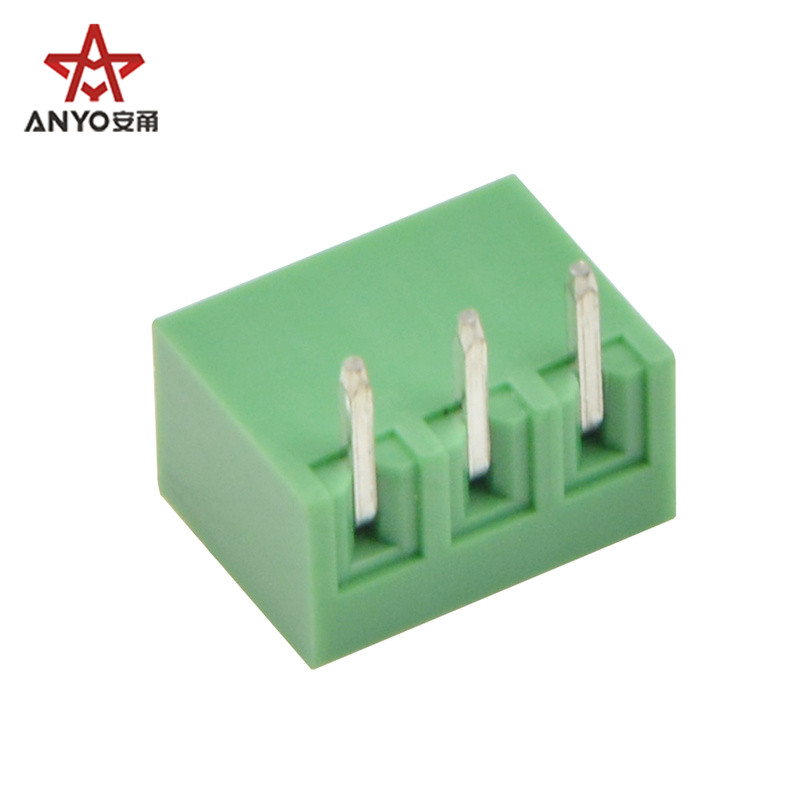

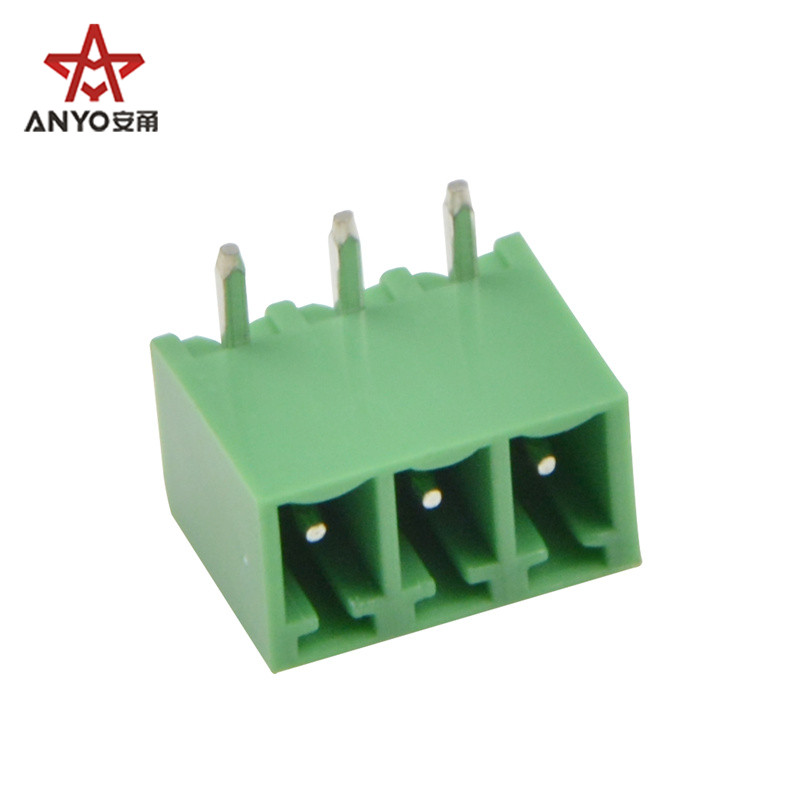

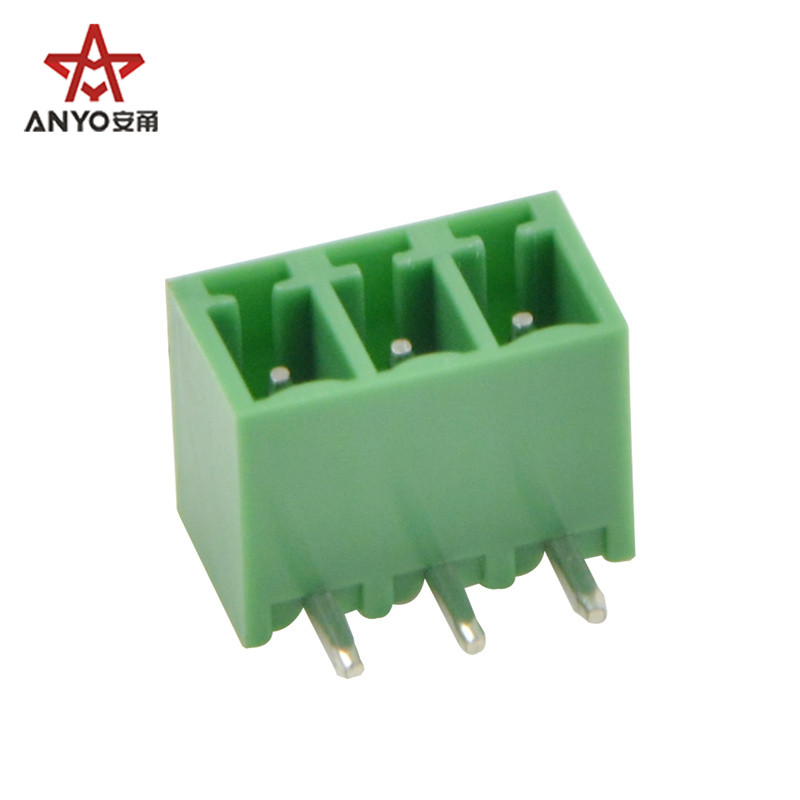

3.81mm pitch pluggable terminal block

Voltage rating: 300V(UL), 250V(IEC)

Current rating: 8A, 7A

Insulation resistance: 500MΩ/DC500V

Withstanding voltage: AC2000V/1min.

Operating temperature: -40℃～+105℃

Soldering temperature: 250℃ ±5℃ / 5S
