HB850M-8.5
Category:TERMINAL BLOCK
Release date:2018-11-27 10:11:19

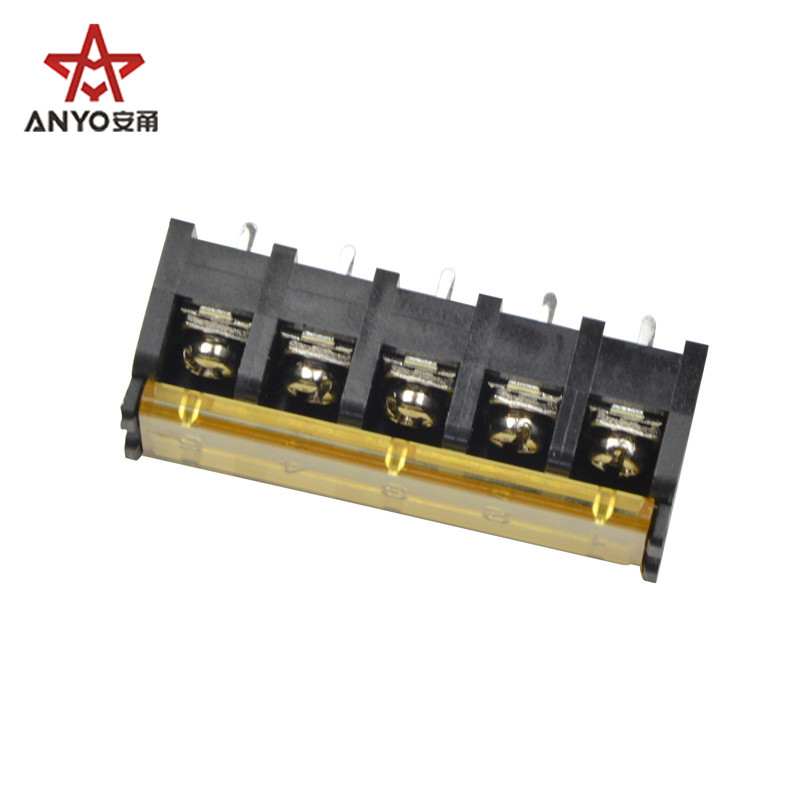

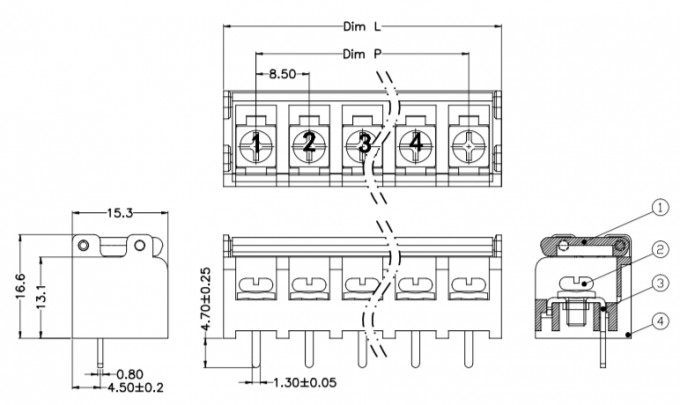

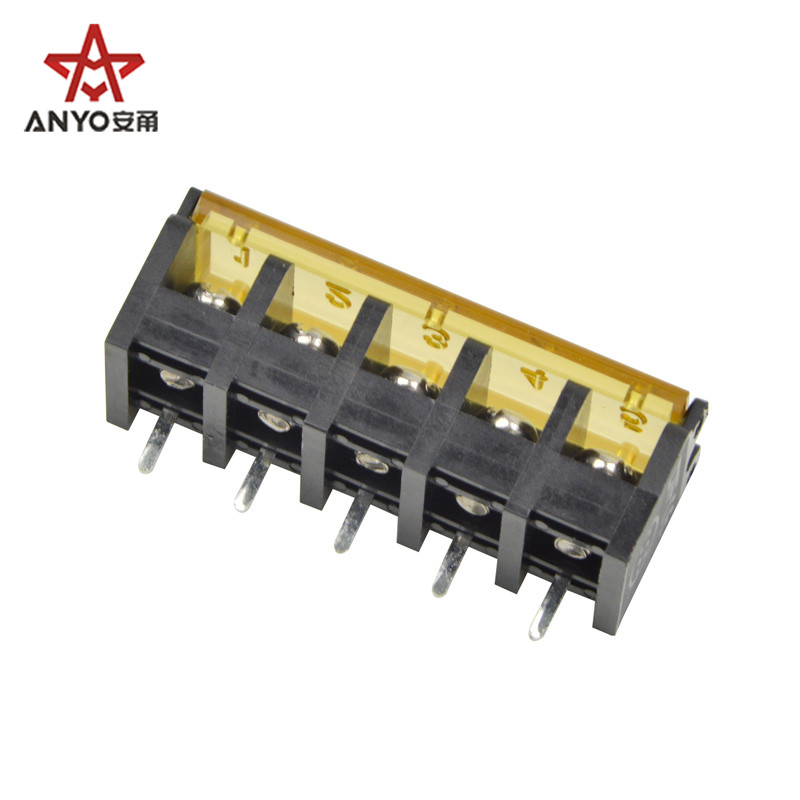

8.5mm pitch barrier terminal block

Voltage rating: 300V(UL), 450V(IEC)

Current rating: 20A, 24A

Insulation resistance: 500MΩ/DC500V

Withstanding voltage: AC2000V/1min.

Wire range: 22-12AWG 2.5mm²

Torque: 0.8N.m(7.02Lb.in)

Operating temperature: -40℃~+105℃

Soldering temperature: 250℃ ±5℃ / 5S
