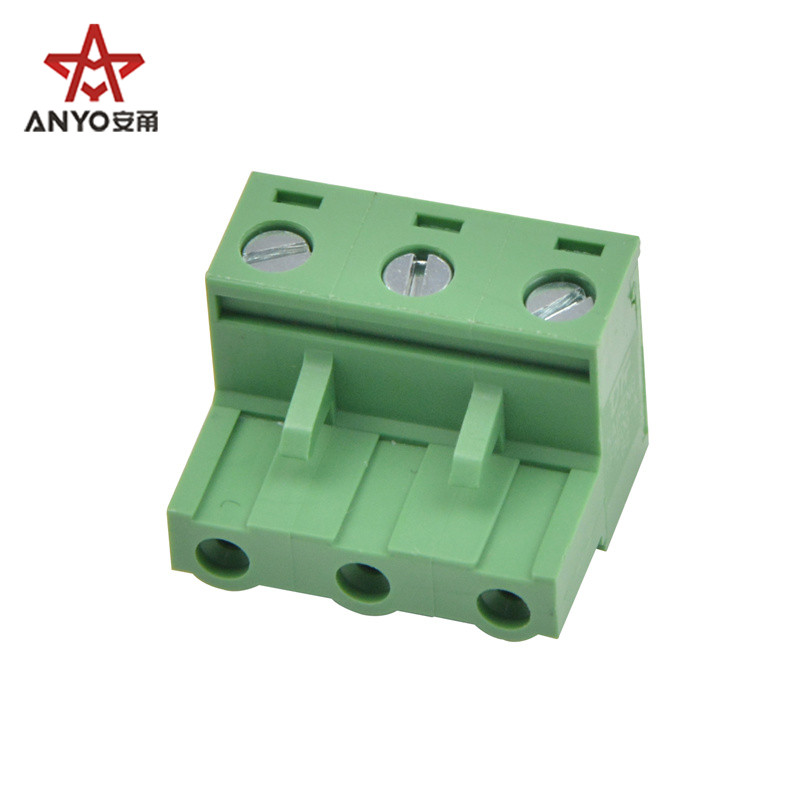

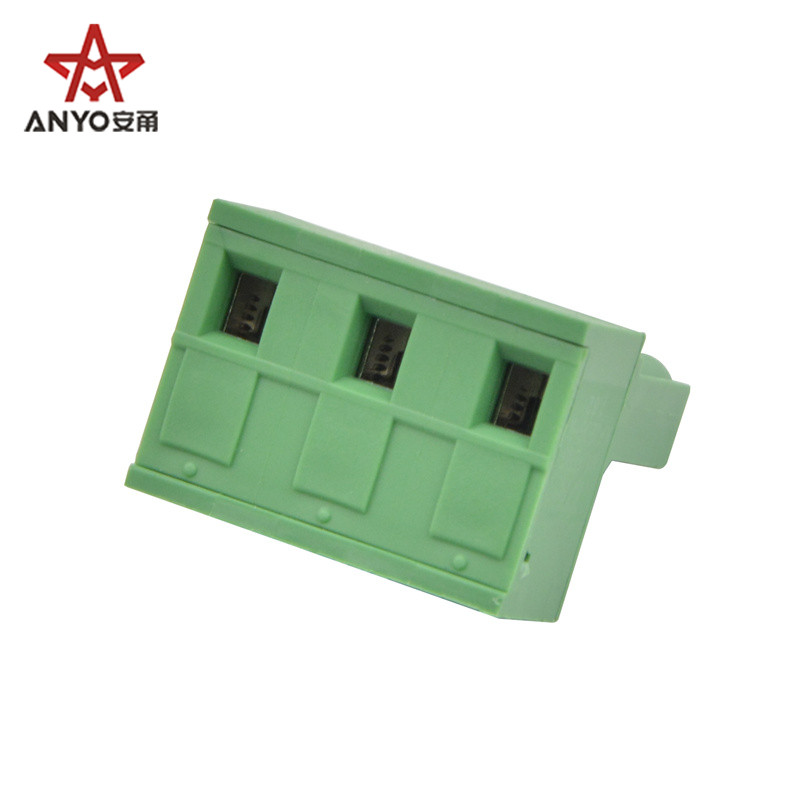

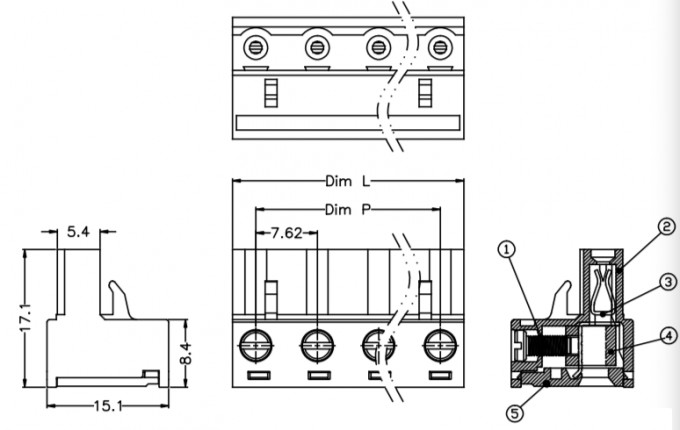

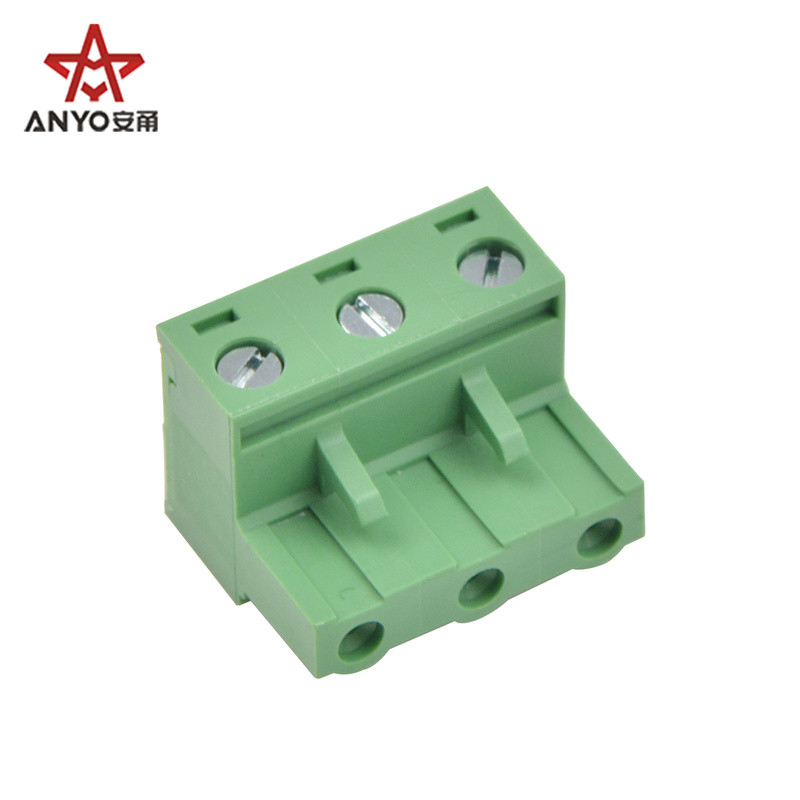

7.62mm pitch pluggable terminal block

Voltage rating: 300V(UL), 400V(IEC)

Current rating: 15A, 20A

Insulation resistance: 500MΩ/DC500V

Withstanding voltage: AC2500V/1min.

Wire range: 28-12AWG 2.5mm²

Strip length: 7~8mm

Torque: 0.4N.m(3.54Lb.in)
