POTENTIOMETER AND KNOB

Loading...
WH148-1A
Category:POTENTIOMETER AND KNOB
Release date:2018-11-27 09:11:17

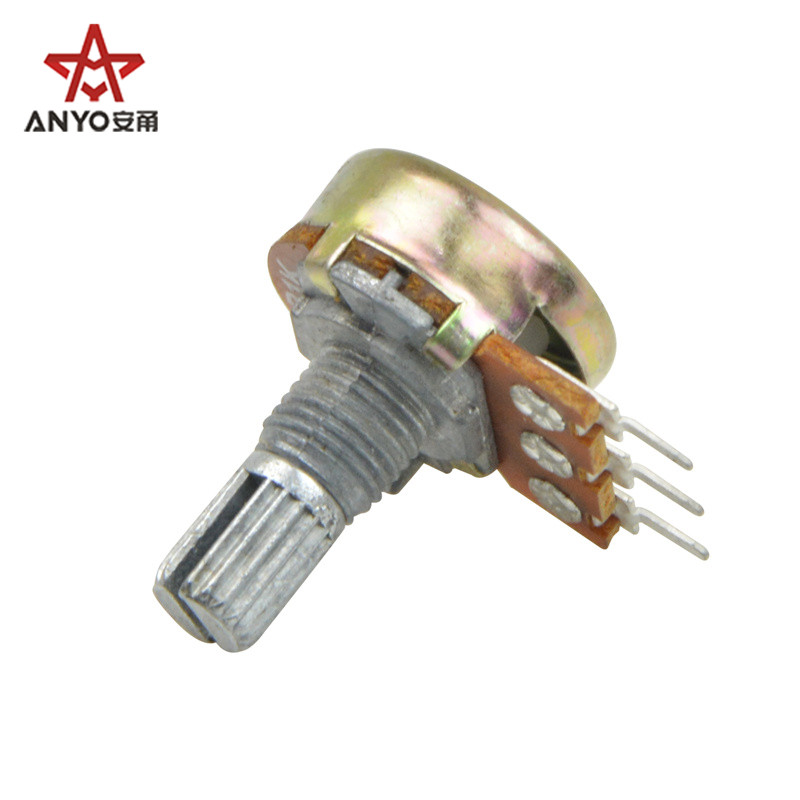

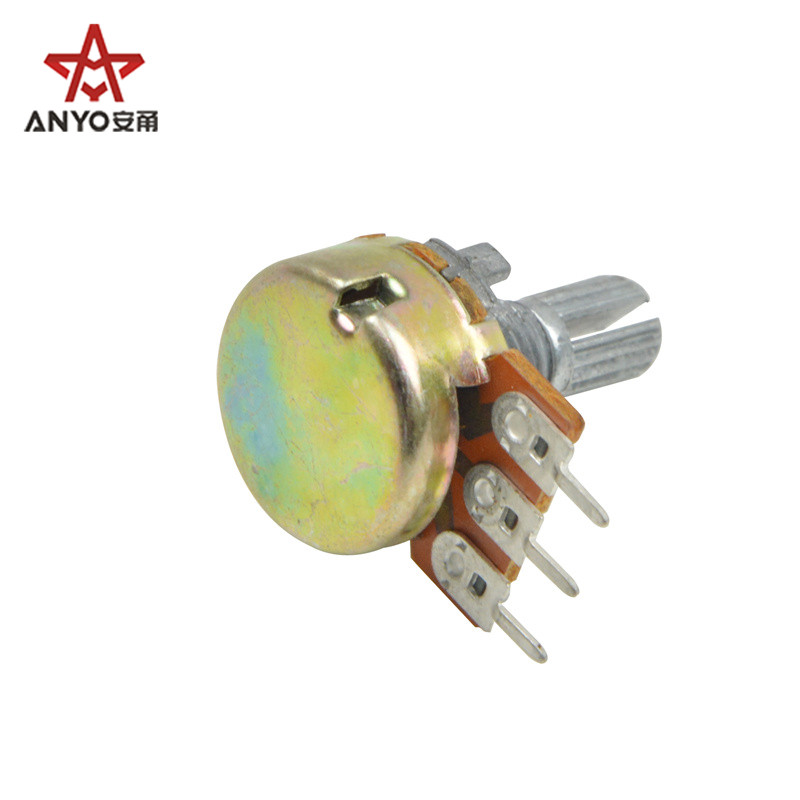

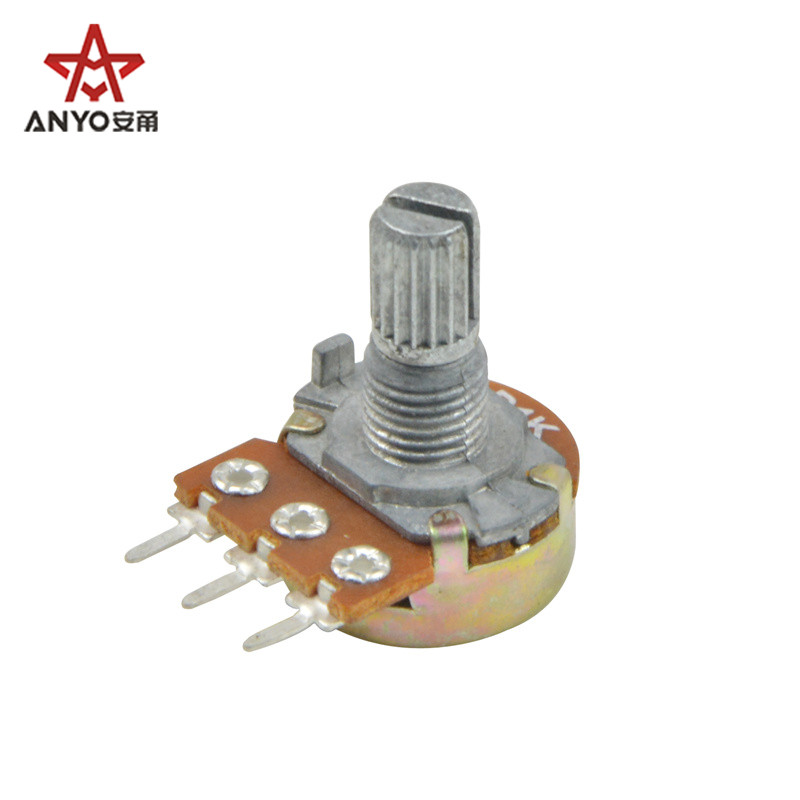

16mm single unit carbon rotary potentiometer

Total rotation angel: 300°±5°

Rotation torque: 2~20mN.m

Stop torque: 6kgf.cm

Total resistance: 5KΩ~2MΩ

Resistance taper: A,B,C

Total resistance tolerance: ± 20%

Rated power: Curve B:0.125W; Other than B: 0.063W

Rotation of noise: ≤47mV

Max. Operating voltage: Curve B: 200V; Other than B: 150V

Rotation life: 10000 cycles
