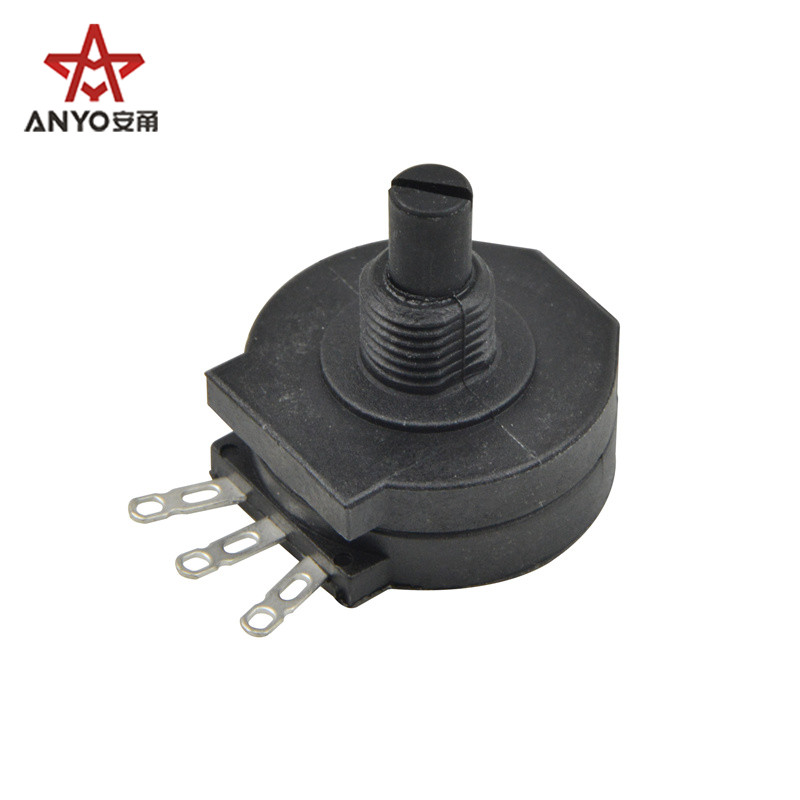

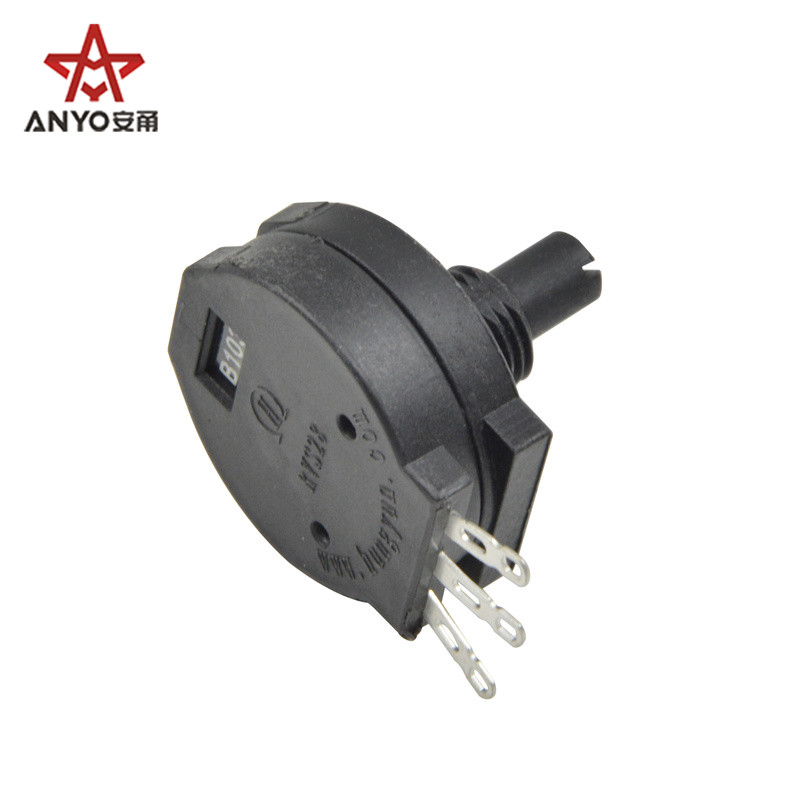

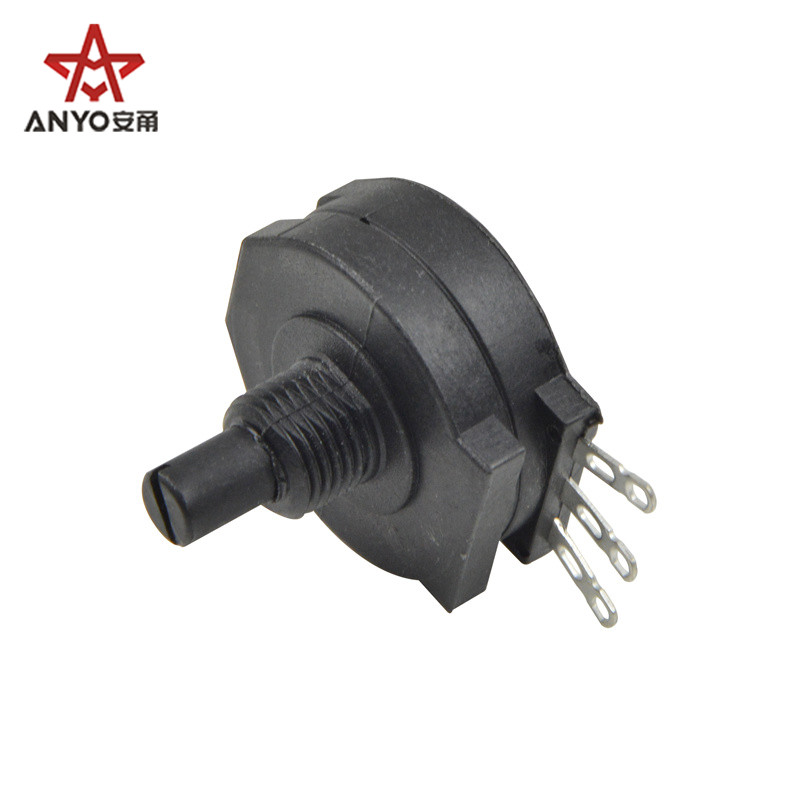

28mm plastic shaft carbon potentiometer for welding machine
Total rotation angel: 260°±10°
Rotation torque: 30~200gf.cm
Stop torque: ≥5kgf.cm
Total resistance: 10KΩ
Resistance taper: B
Total resistance tolerance: ± 20%
Rated power: 0.5W(50℃)
Rotation of noise: ≤47mV
Max. Operating voltage: 50VDC
Rotation life: 10000 cycles
|
