POTENTIOMETER AND KNOB

Loading...
RV28
Category:POTENTIOMETER AND KNOB
Release date:2018-11-27 09:11:48

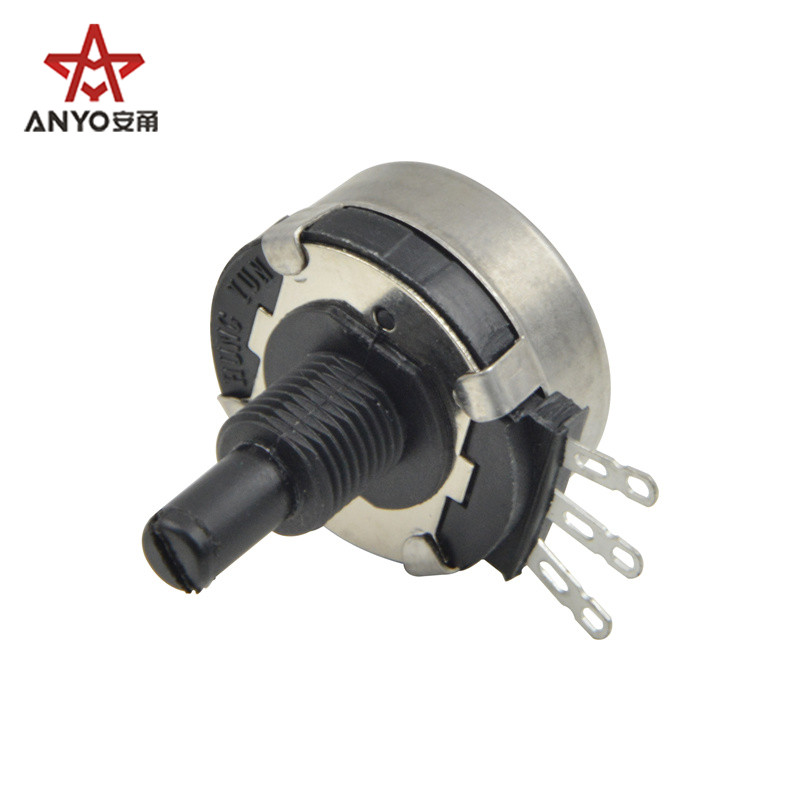

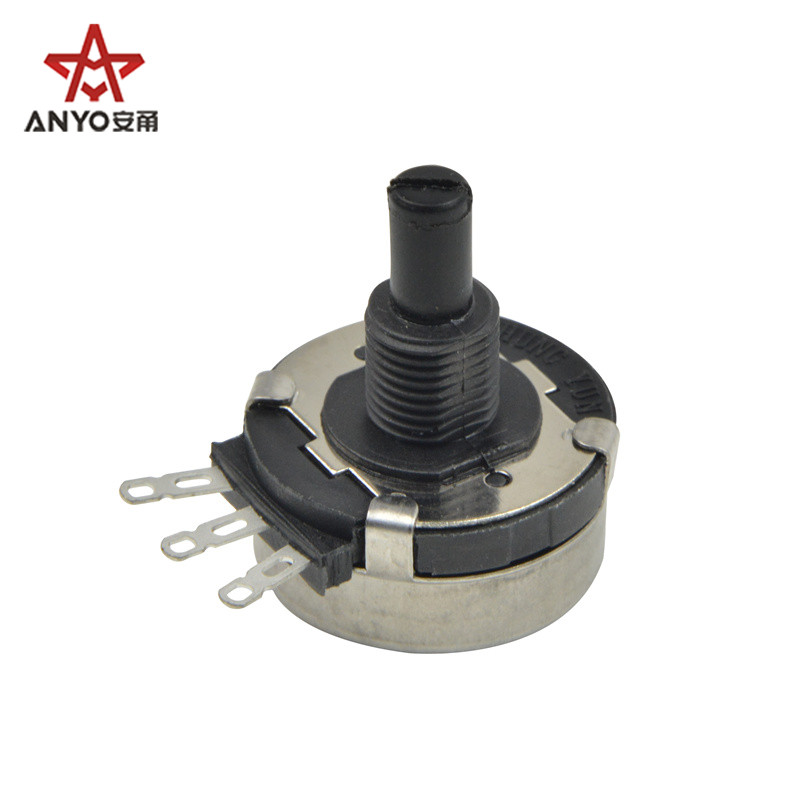

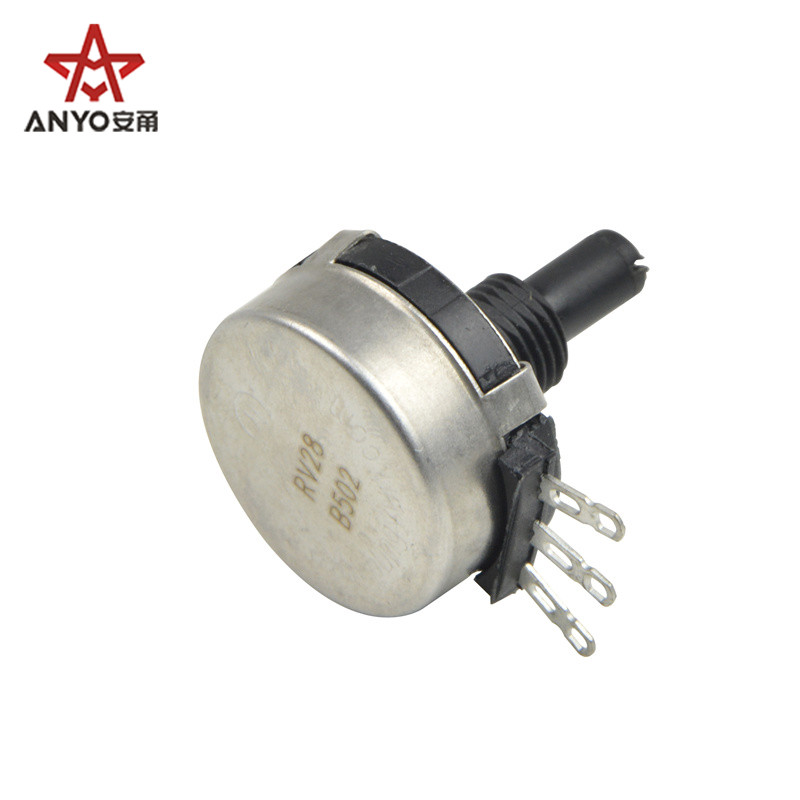

28mm plastic shaft carbon potentiometer for welding machine

Total rotation angel: 260°±10°

Rotation torque: 2~20mN.m

Stop torque: ≥5kgf.cm

Total resistance: 500Ω~2MΩ

Resistance taper: B

Total resistance tolerance: ± 20%

Rated power: 0.5W(50℃)

Rotation of noise: ≤47mV

Max. Operating voltage: 250VDC

Rotation life: 10000 cycles
