RV24
Category:POTENTIOMETER AND KNOB
Release date:2018-11-27 09:11:01

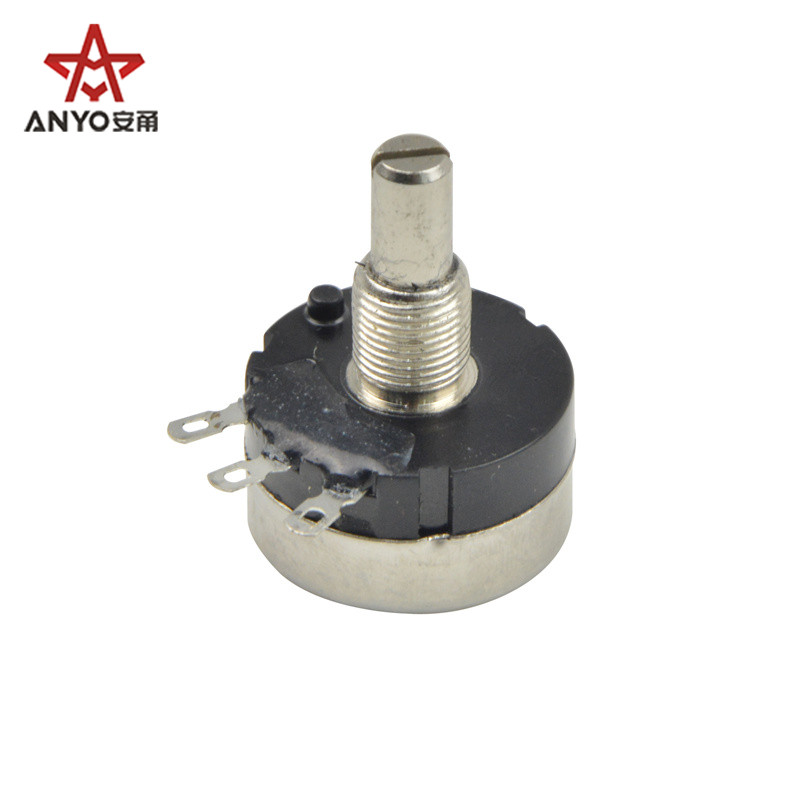

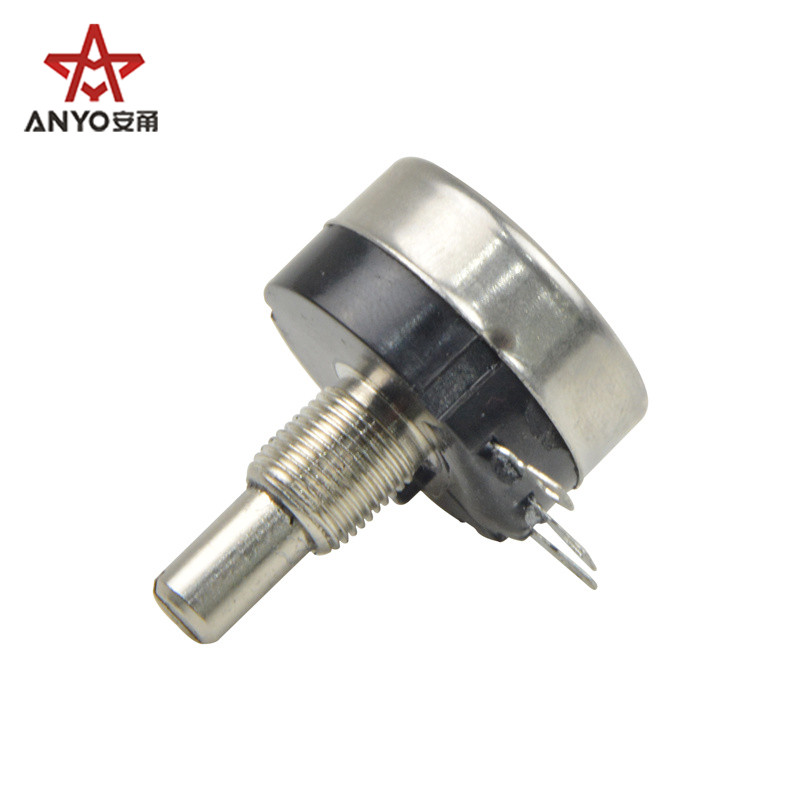

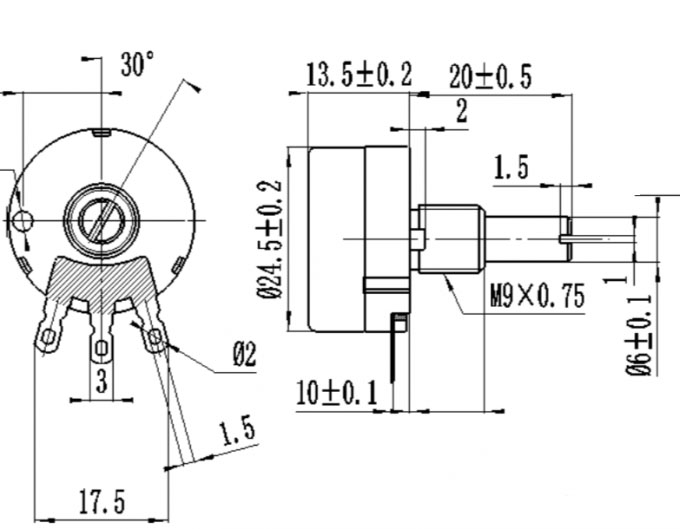

24mm metal shaft single turn potentiometer for welding machine

Total rotation angel: 300°±5°

Electrical rotation angle: 280°±10°

Rotation torque: 50~300gf.cm

Stop torque: 9kgf.cm

Total resistance: 1KΩ

Resistance taper: B

Total resistance tolerance: ± 5%

Rated power: 0.25W(50℃)

Rotation of noise: ≤3% Rn

Max. Operating voltage: 315VDC

Rotation life: 10000 cycles
