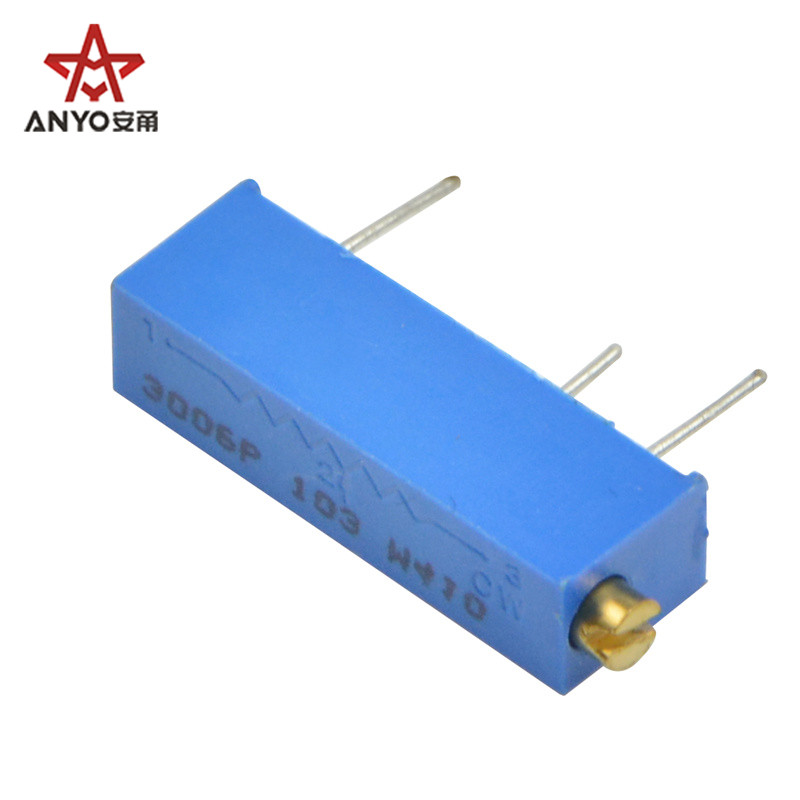

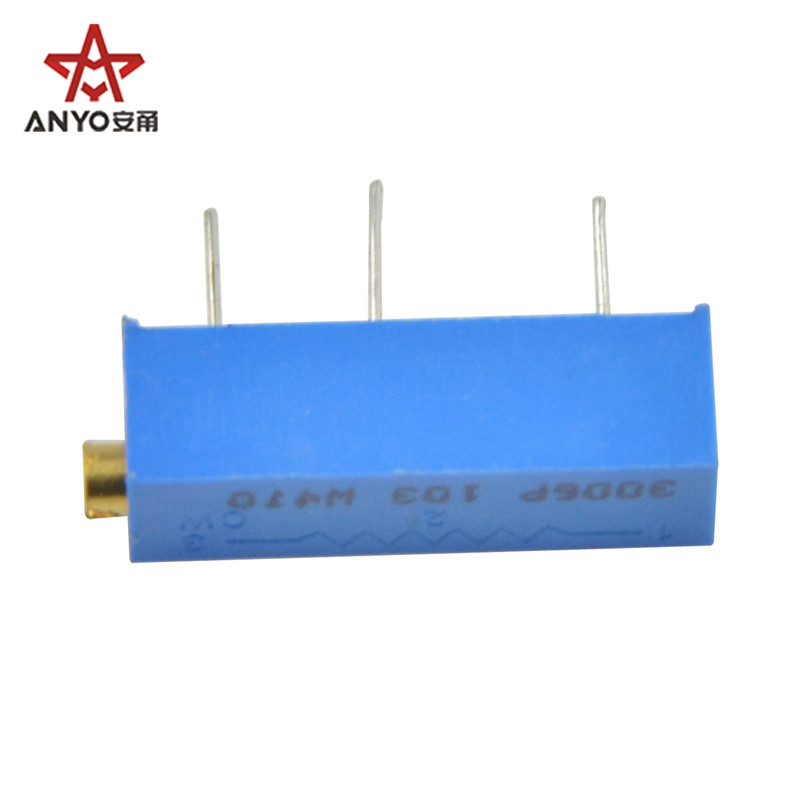

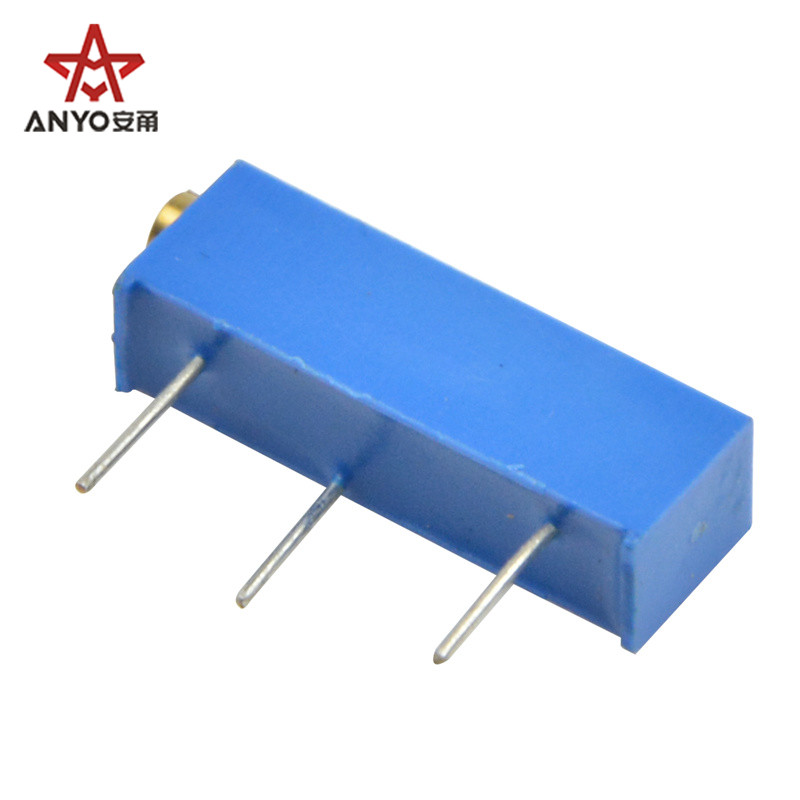

Multi turn trimmer potentiometer

Total mechanical travel: 22±2 turns nom

Staring torque: ≤35mN.m

Total resistance: 10Ω~2MΩ

Total resistance tolerance: ± 10%

Rated power: 0.75W(+70℃)

Wiper current max.: 100mA

Mechanical endurance: 200 cycles
