PC1601-H-B-P18
Category:POTENTIOMETER AND KNOB
Release date:2018-11-27 09:11:21

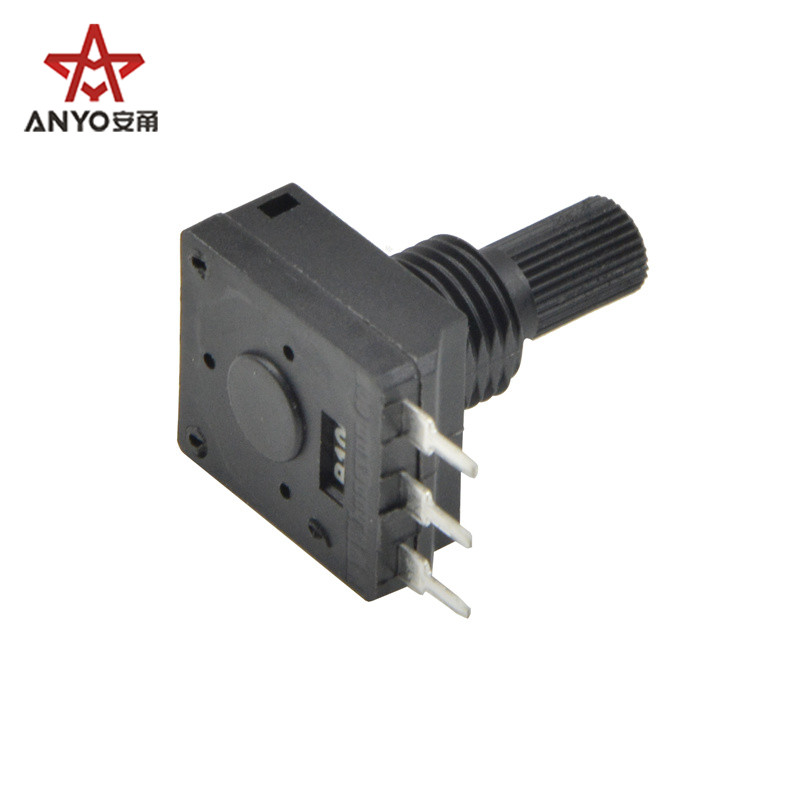

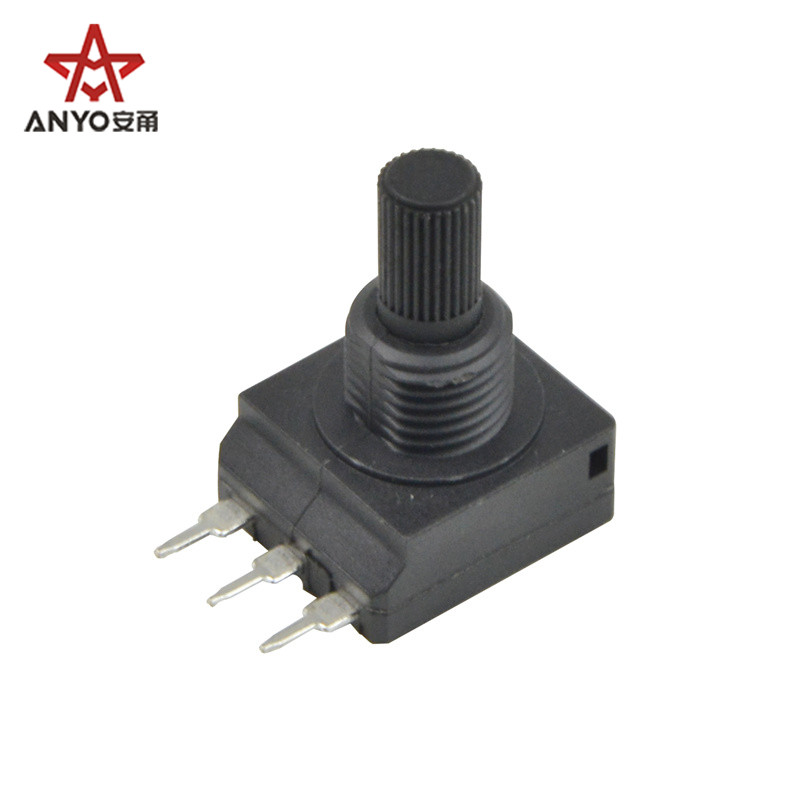

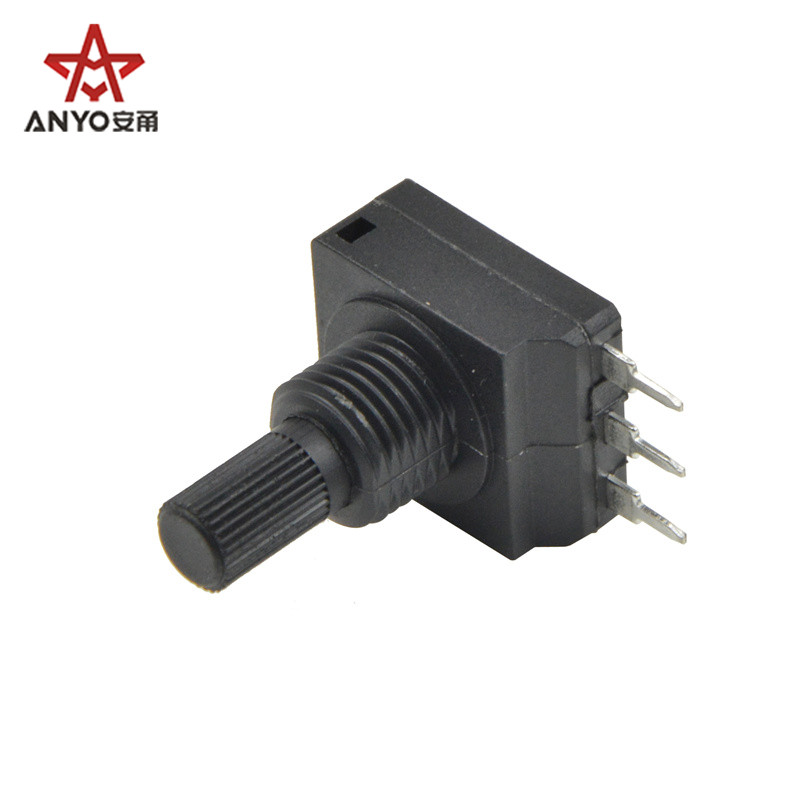

Insulated shaft rotary potentiometer

Total rotation angel: 300°±5°

Electrical rotation angle: 280°±20°

Rotation torque: 0.3~1.5Ncm

Stop torque: >40Ncm

Total resistance: 100Ω~2.2MΩ

Resistance taper: B

Total resistance tolerance: ± 20%

Rated power: 0.2W(50℃)

Rotation of noise: ≤100mV

Max. Operating voltage: 50VDC

Rotation life: 10000 cycles
