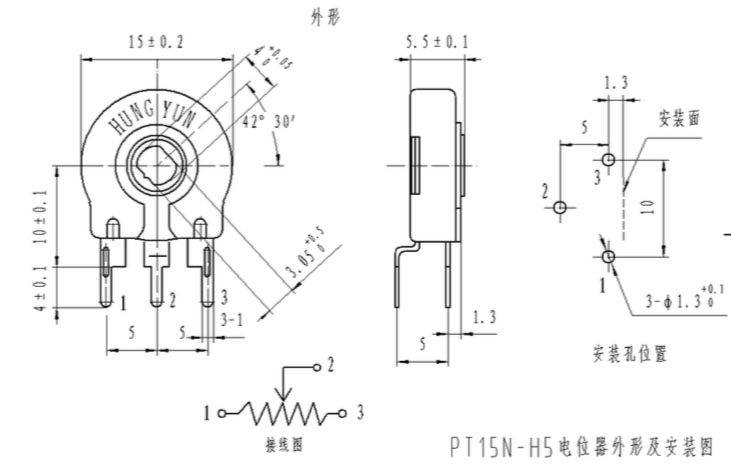

PT15N-H5
Category:POTENTIOMETER AND KNOB
Release date:2018-11-27 09:11:37

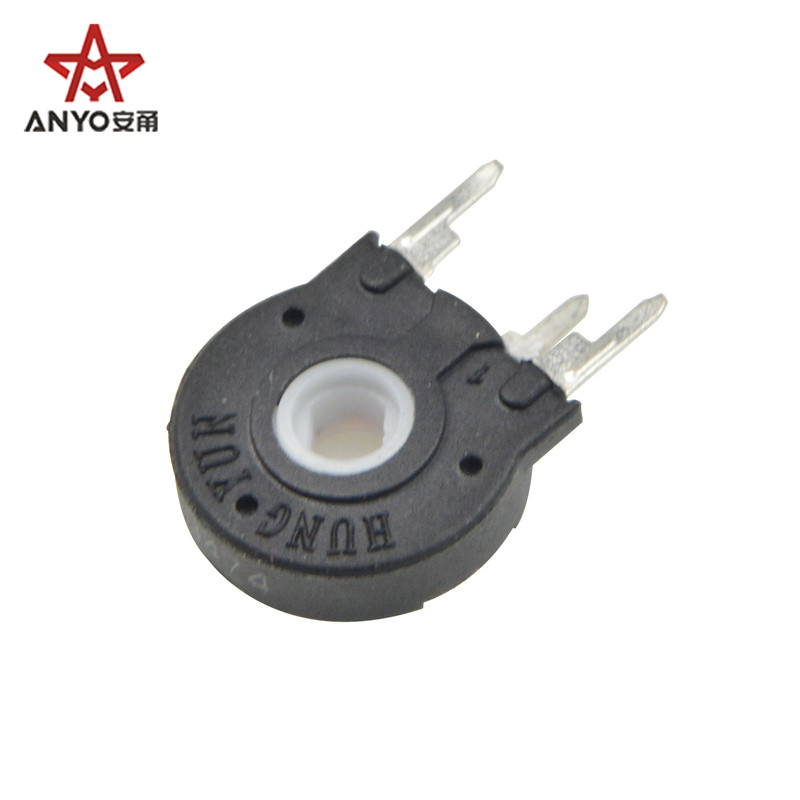

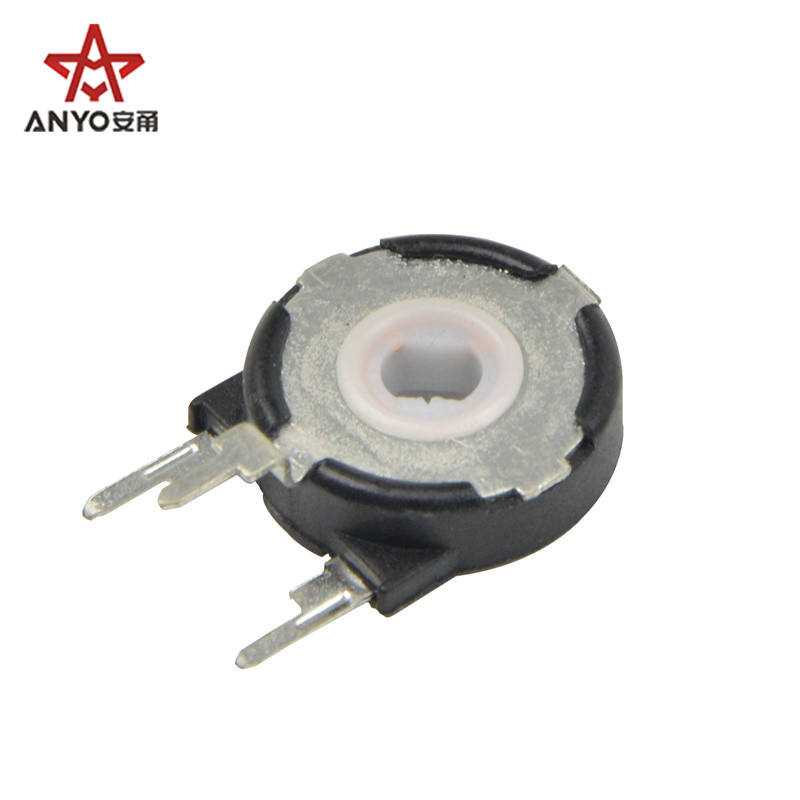

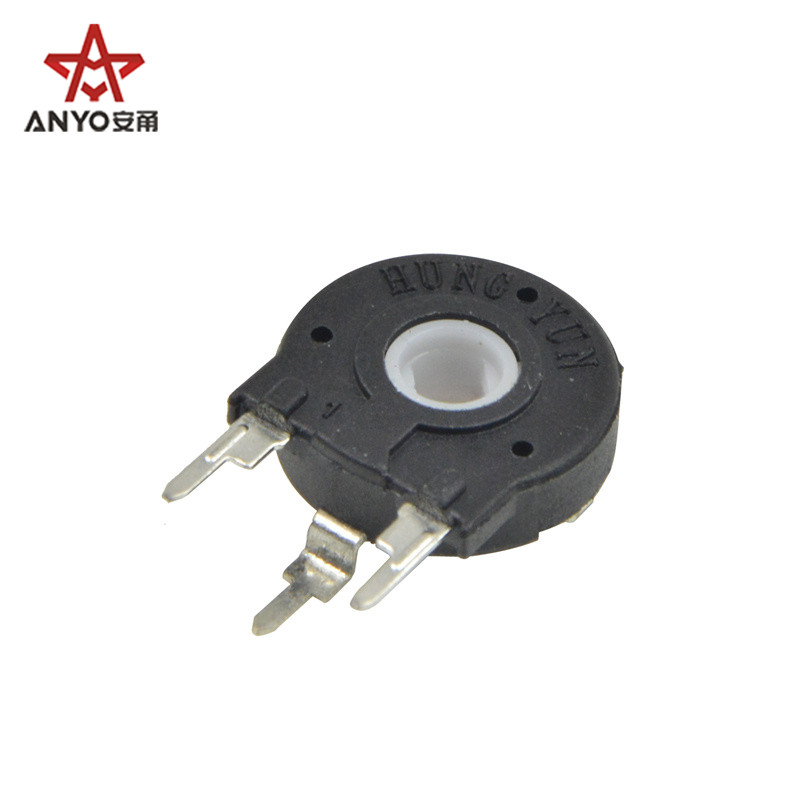

15mm trimmer potentiometer

Total rotation angel: 265°±10°

Electrical rotation angle: 250°±20°

Rotation torque: 50~250gf.cm

Stop torque: 1kgf.cm

Total resistance: 100Ω~5MΩ

Resistance taper: Lin, Log, Alog

Total resistance tolerance: ± 20%(100Ω~1MΩ)

± 30%(1MΩ~5MΩ)

Rated power: 0.25W(50℃ lin)

0.12W(50℃ no lin)

Rotation of noise: ≤100mV

Max. Operating voltage: 250VDC(lin)

125VDC(no lin)

Rotation life: 10000 cycles
