PT06K-V
Category:POTENTIOMETER AND KNOB
Release date:2018-11-27 09:11:48

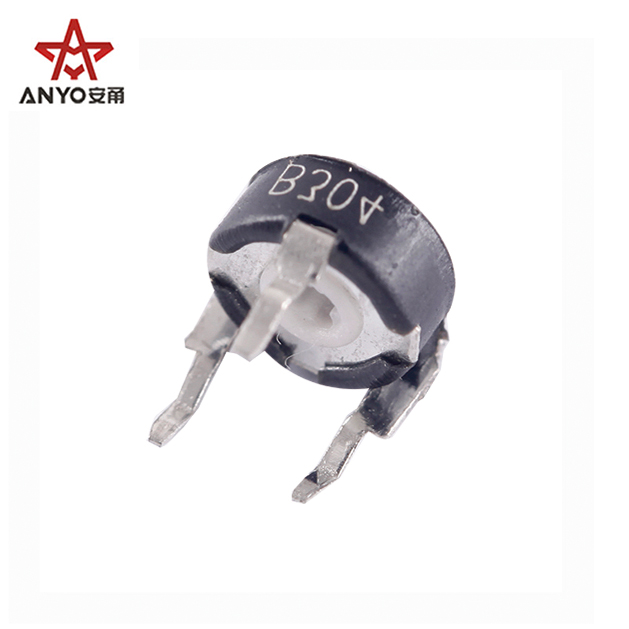

6mm trimmer potentiometer

Total rotation angel: 235°±10°

Electrical rotation angle: 200°±20°

Rotation torque: 0.2-2Ncm

Stop torque: >4Ncm

Total resistance: 10KΩ

Resistance taper: B

Total resistance tolerance: ± 10%

Rated power: 0.1W(50℃)

Rotation of noise: ≤3% Rn

Max. Operating voltage: 50VDC

Rotation life: 10000 cycles
