RV17-K2
Category：POTENTIOMETER AND KNOB
Release date：2019-01-21 10:01:26
Order

  • Details

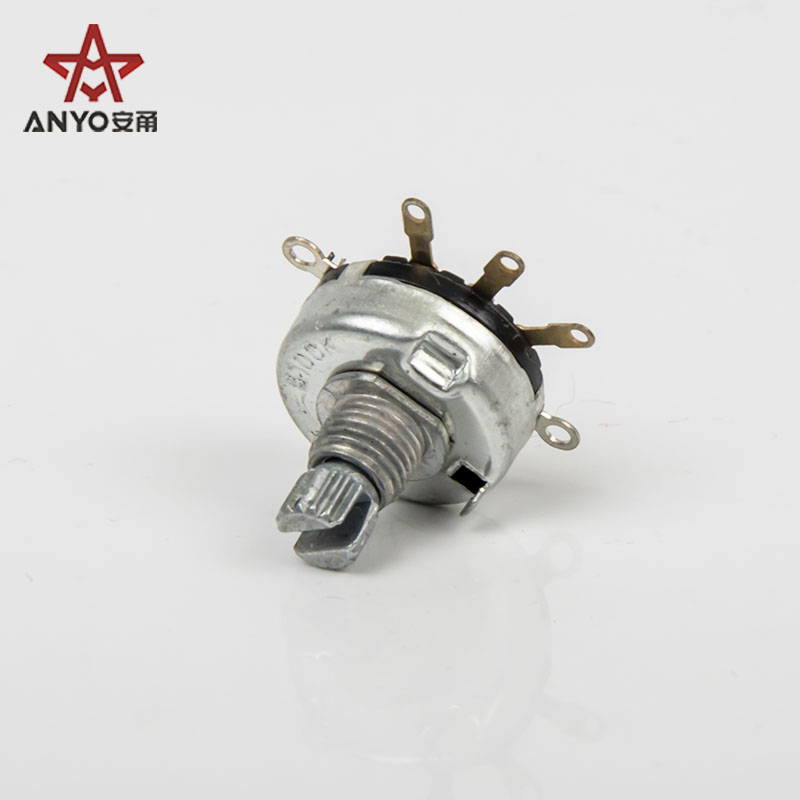

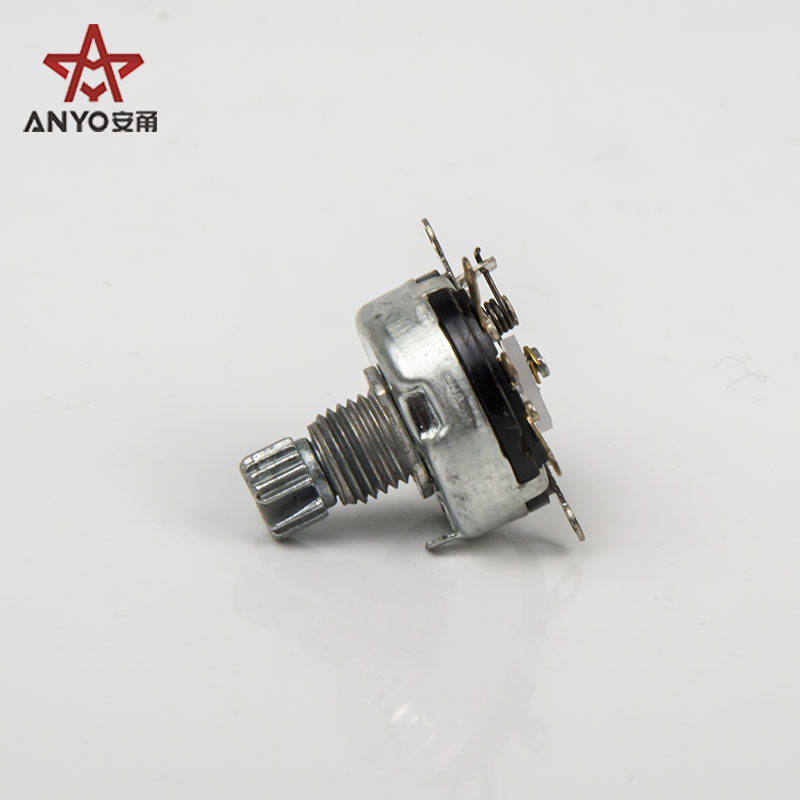

Φ17mm rotary potentiometer with switch
Total resistance: 1MΩ±20%
Resistance taper: B/Linear
Max.operation voltage: AC150V for 1 minute
Rotational noise: <47mv
Insulation resistance: DC500V 100MΩ Min.
Total rotation travel: 260±5°
Operating force: 20-200gf.cm
Shaft stop strength: 3Kgf.cm min
Power rating: 0.125W
Switch working angle: 30±10°
Switch operation torque: 50-300gf.cm
Rating switching power: 12DC 1A
Switch life: 10000
Mechanical endurance: 10000
