SR2612
Category：POTENTIOMETER AND KNOB
Release date：2019-01-21 10:01:37
Order

  • Details

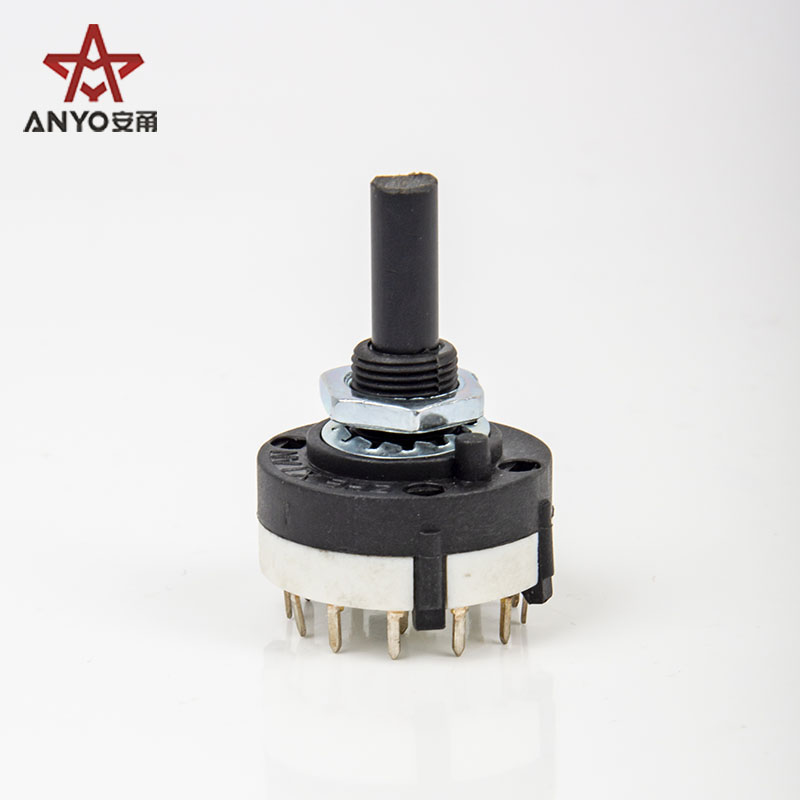

Φ26mm rotary switch
Rated power: 350mA @ 125VAC
　　　　　　150mA @ 250VAC
Max. Operating voltage: 250VAC/DC
Withstanding voltage: 1500V Max.
Max. Operating current: 5A non-switching
Insulation resistance: 100MΩ Min.
Operating temperature: -30℃~ +85℃
Durability: ≥10,000 times
