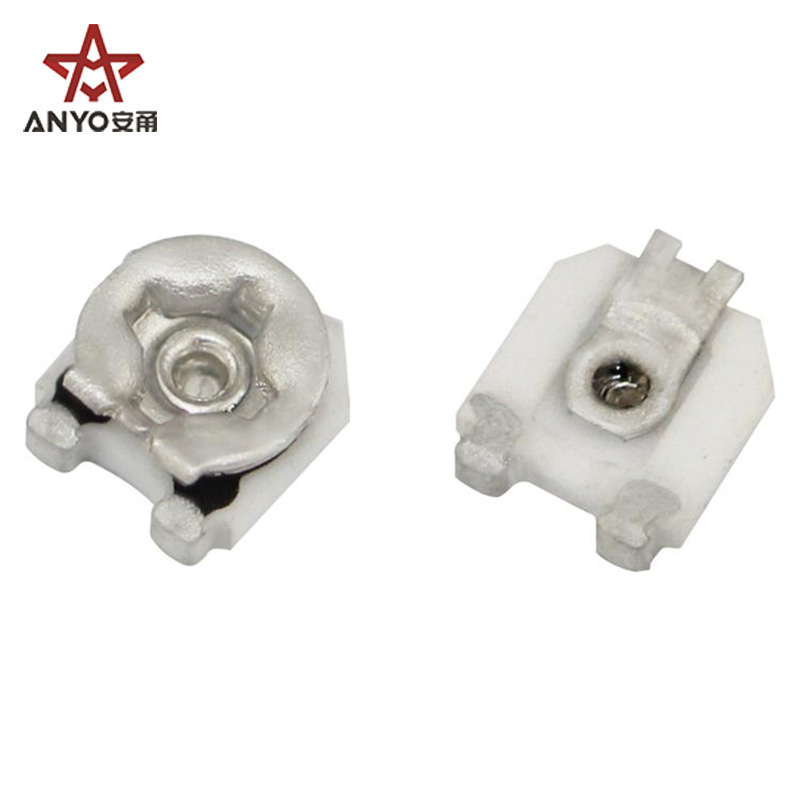

303-1
Category：POTENTIOMETER AND KNOB
Release date：2024-12-14 14:12:22
Order

  • Details
Norminal total resistance: 100-1MΩ
Resistance tolerance: ±25%
Contact resistance variation: 5%
Withstand voltage: 50V
Effective electrical travel: 240±20°
Rated wattage: 0.15W
Operating temperature range: -40~+100℃
TCR temperature coefficient resistance: ±250ppm/℃
Rotational life: 200 circles
Total mechanical rotation angle: 270±20°
Rotational torque: 1~12 mN*m
End stop strength: ≥15 mN*m
