T78
Category:RELAY
Release date:2018-12-06 16:12:55

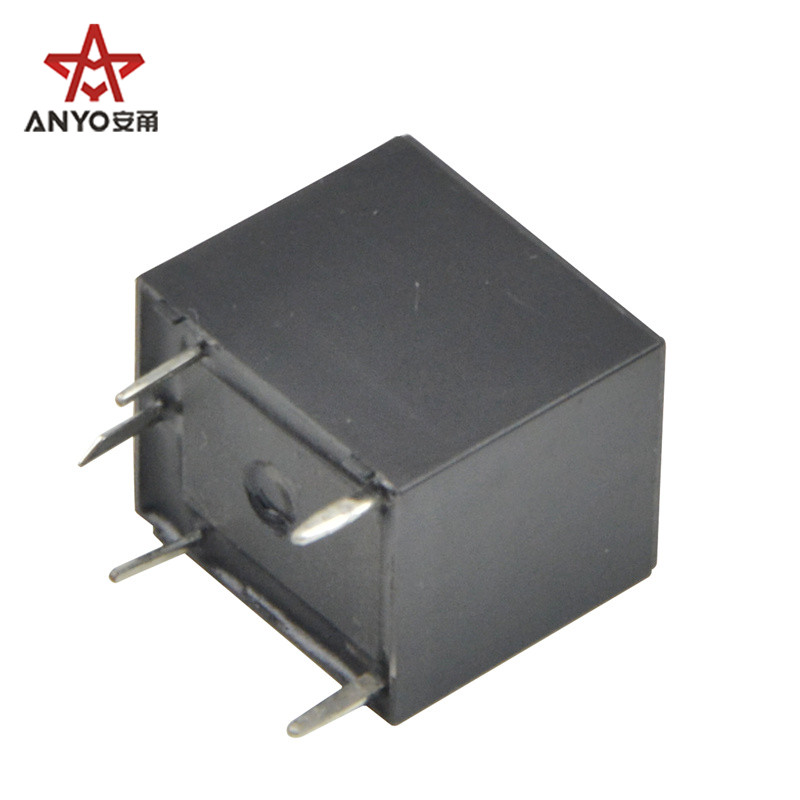

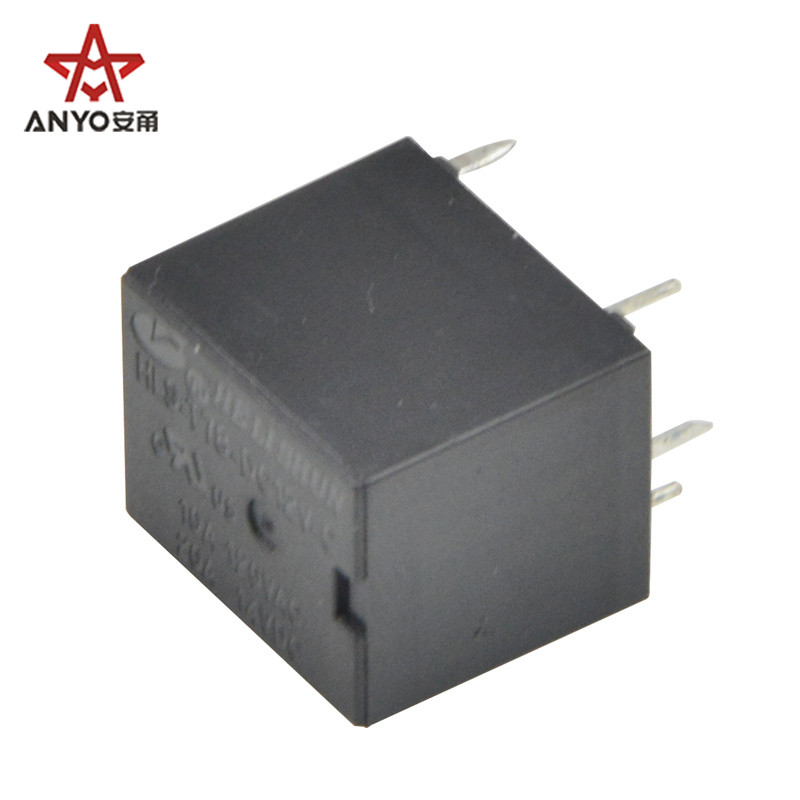

Automotive relay, cross reference OMRON G8QN

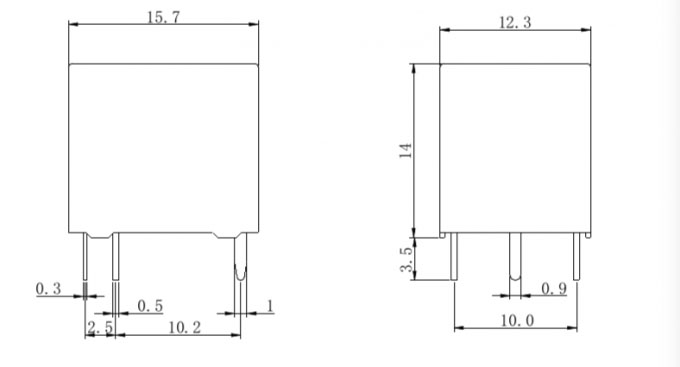

Dimension: 15.7*12.3*14mm

Contact form: 1A/1B/1C

Contact material: Ag alloy

Contact ratings: NO: 20A 14VDC/10A 120VAC

                           NC: 12A 14VDC/10A 120VAC

                           1C: 7A 120VAC

Max. switching voltage: 120VAC/16VDC

Max. switching current: 25A

Max. switching power: 840VA/400W

Initial contact resistance: 100mΩ max.

Electrical life expectancy: 100,000 (rated load)

Mechanical life expectancy: 10,000,000 (no load)

Rated voltage: 6~24V

Coil power: 0.6W; 0.8W

Insulation resistance at 500VDC: 100MΩ min.

Dielectric strength between open contacts: 500VAC

Dielectric strength between contacts & coil: 500VAC

Operate time: 10ms max.

Release time: 5ms max.

Ambient temperature: -40℃~ +85℃

Terminal type: PCB

Weight: 6g
