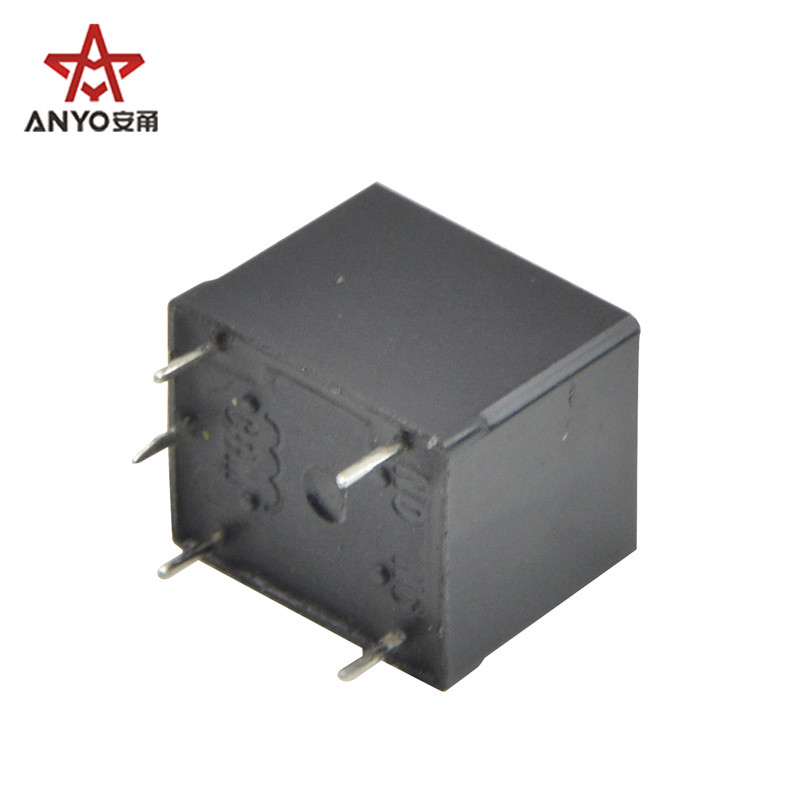

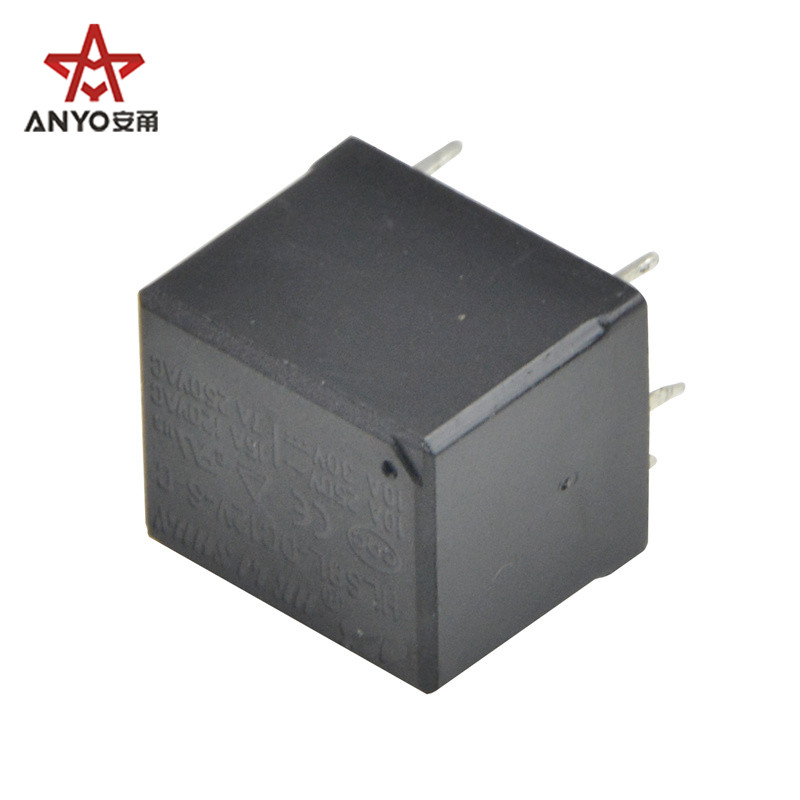

T73
Category:RELAY
Release date:2018-12-06 16:12:57


General purpose relay, cross reference OMRON G5L

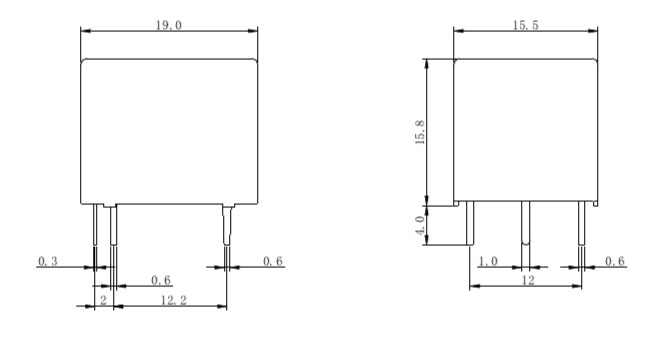

Dimension: 19*15.5*15.8mm

Contact form: 1A/1B/1C

Contact material: Ag alloy

Contact ratings: 7A 240VAC/30VDC

                          10A 120VAC/24VDC

                          15A 120VAC

Max. switching voltage: 250VAC/30VDC

Max. switching current: 15A

Max. switching power: 2770VA/240W

Initial contact resistance: 50mΩ max.

Electrical life expectancy: 100,000 (rated load)

Mechanical life expectancy: 10,000,000 (no load)

Rated voltage: 3~48V

Coil power: 0.36W; 0.45W

Insulation resistance at 500VDC: 100MΩ min.

Dielectric strength between open contacts: 750VAC

Dielectric strength between contacts & coil: 1500VAC

Operate time: 10ms max.

Release time: 15ms max.

Ambient temperature: -40℃~ +85℃

Terminal type: PCB

Weight: 10g
