14F3
Category:RELAY
Release date:2018-12-06 16:12:53

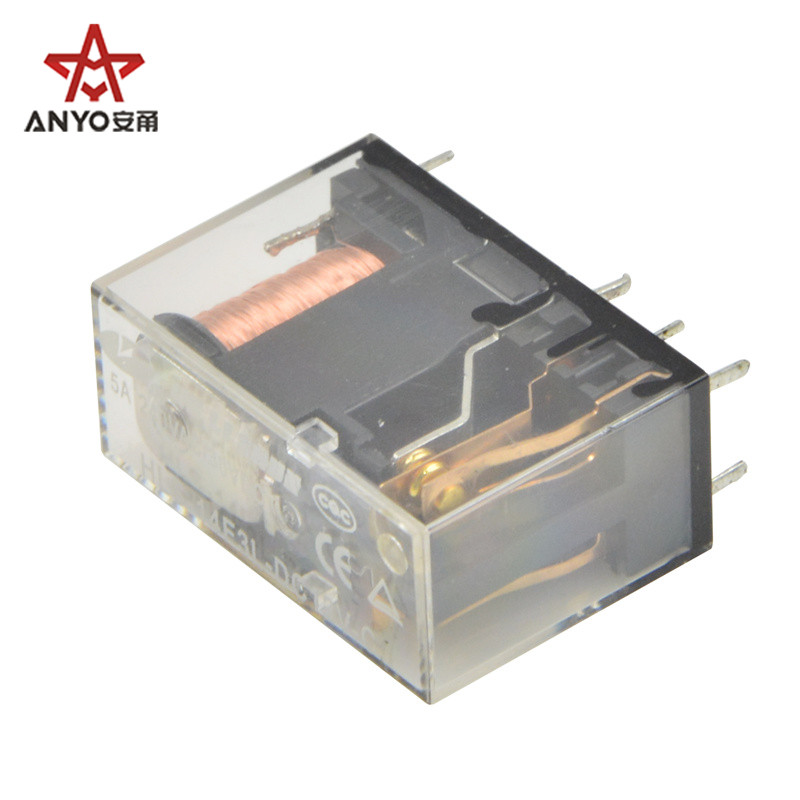

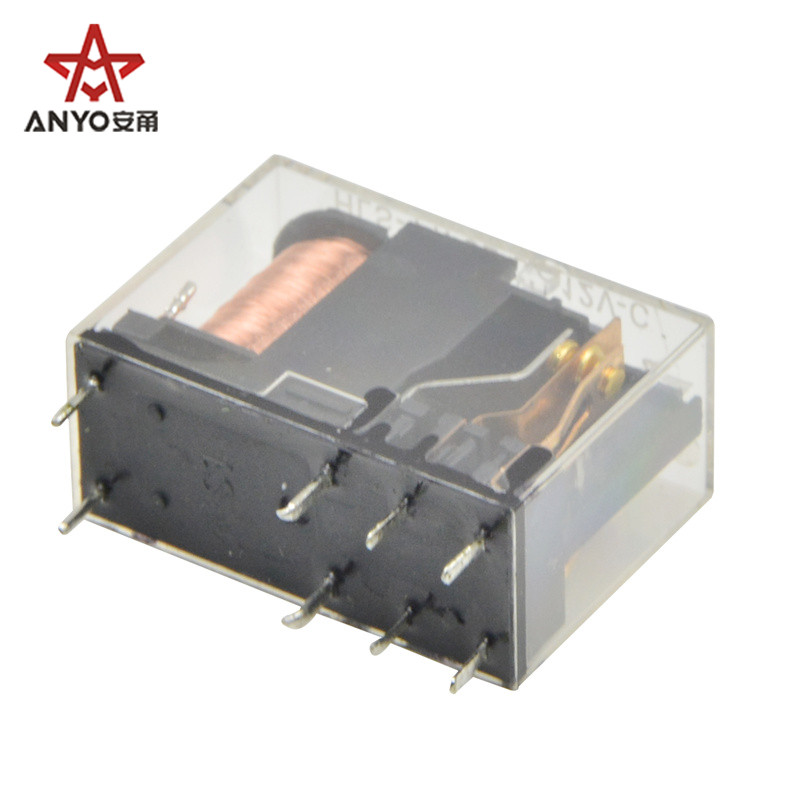

General purpose relay, cross reference OMRON G2R-2

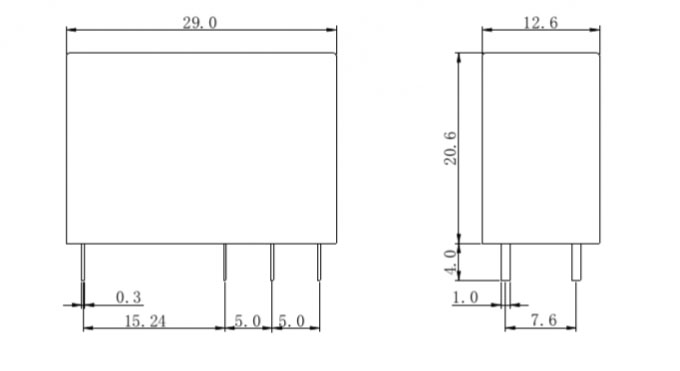

Dimension: 29*12.6*20.6mm

Contact form: 2A/2C

Contact material: Ag alloy

Contact ratings: 5A 240VAC/5A 30VDC

Max. switching voltage: 250VAC/110VDC

Max. switching current: 5A

Max. switching power: 1250VA/150W

Initial contact resistance: 100mΩ max.

Electrical life expectancy: 100,000 (rated load)

Mechanical life expectancy: 10,000,000 (no load)

Rated voltage: 3~48V

Coil power: 0.53W; 0.72W

Insulation resistance at 500VDC: 100MΩ min.

Dielectric strength between open contacts: 1000VAC

Dielectric strength between contacts & coil: 5000VAC

Operate time: 15ms max.

Release time: 8ms max.

Ambient temperature: -30℃~ +70℃

Terminal type: PCB

Weight: 13g
