T90
Category:RELAY
Release date:2018-12-06 16:12:35


General purpose relay, cross reference OMRON G8P

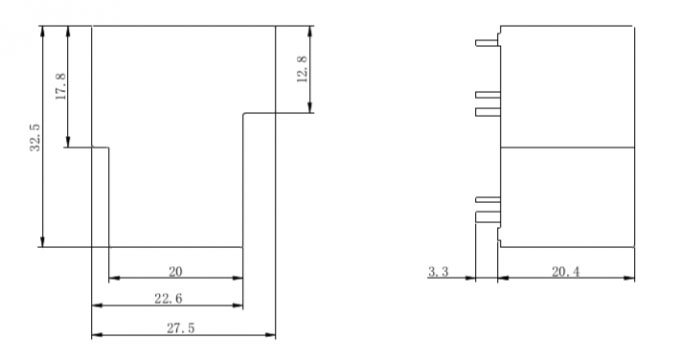

Dimension: 32.5*27.5*20.4mm

Contact form: 1A/1B/1C

Contact material: Ag alloy

Contact ratings: 1A: 30A 240VAC/20A 28VDC

                           1B: 15A 240VAC/10A 28VDC

                           1C: 20A/10A 240VAC/28VDC

Max. switching voltage: 250VAC/30VDC

Max. switching current: 30A

Max. switching power: 6000VA/560W

Initial contact resistance: 100mΩ max.

Electrical life expectancy: 100,000 (rated load)

Mechanical life expectancy: 10,000,000 (no load)

Rated voltage: 3~48V

Coil power: 0.93W

Insulation resistance at 500VDC: 100MΩ min.

Dielectric strength between open contacts: 1500VAC

Dielectric strength between contacts & coil: 2000VAC

Operate time: 15ms max.

Release time: 10ms max.

Ambient temperature: -40℃~ +85℃

Terminal type: PCB

Weight: 32g
