23F
Category:RELAY
Release date:2018-12-06 16:12:26

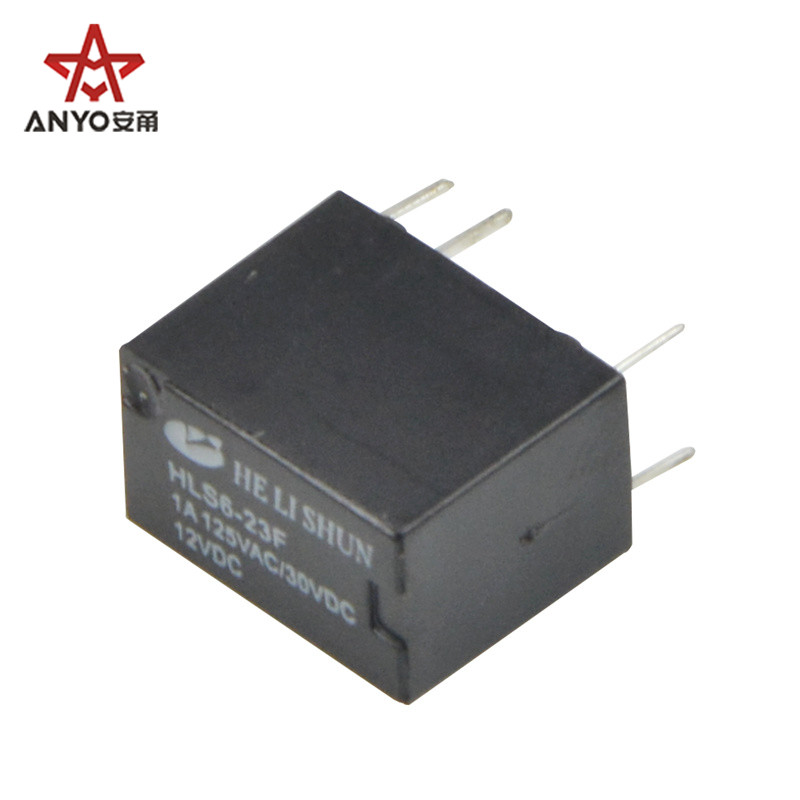

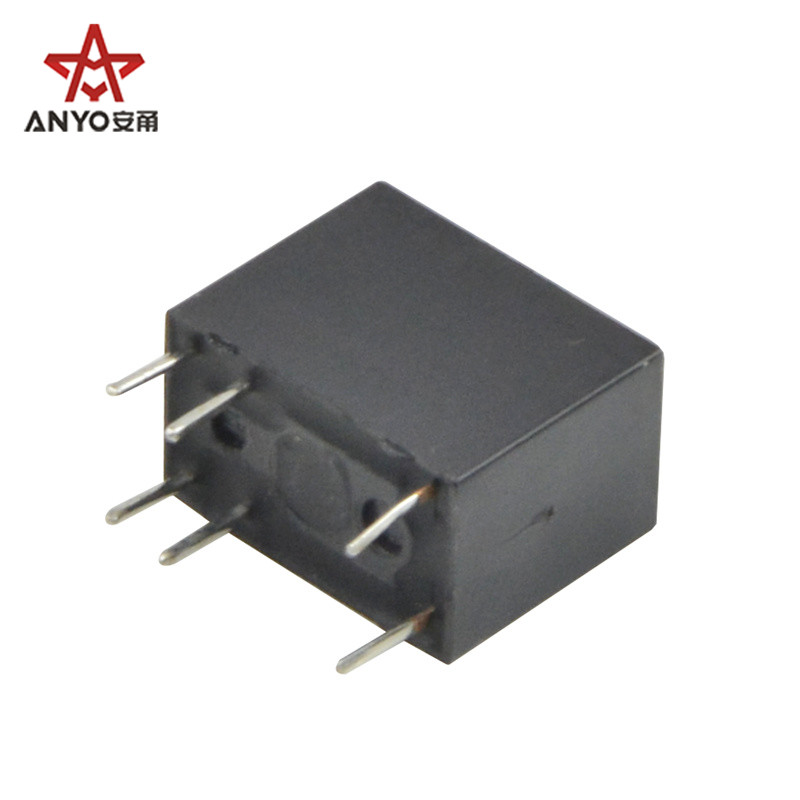

Telecom relay, cross reference OMRON G5V-1

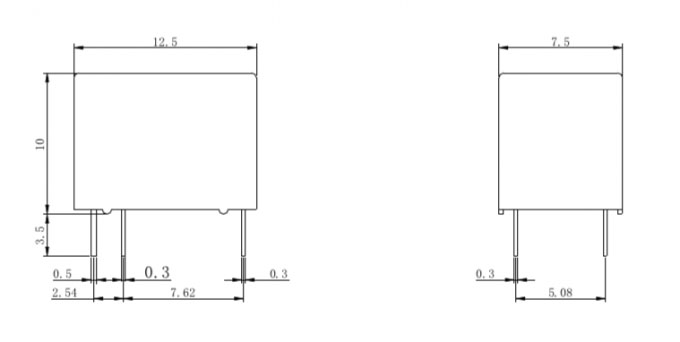

Dimension: 12.5*7.5*10mm

Contact form: 1C

Contact material: Au+Ag alloy

Contact ratings: 2A 120VAC/24VDC

Max. switching voltage: 120VAC/60VDC

Max. switching current: 2A

Max. switching power: 240VA/48W

Initial contact resistance: 50mΩ max.

Electrical life expectancy: 100,000 (rated load)

Mechanical life expectancy: 10,000,000 (no load)

Rated voltage: 3~24V

Coil power: 0.15W; 0.2W

Insulation resistance at 500VDC: 100MΩ min.

Dielectric strength between open contacts: 500VAC

Dielectric strength between contacts & coil: 1000VAC

Operate time: 5ms max.

Release time: 5ms max.

Ambient temperature: -30℃~ +70℃

Terminal type: PCB

Weight: 1.8g
