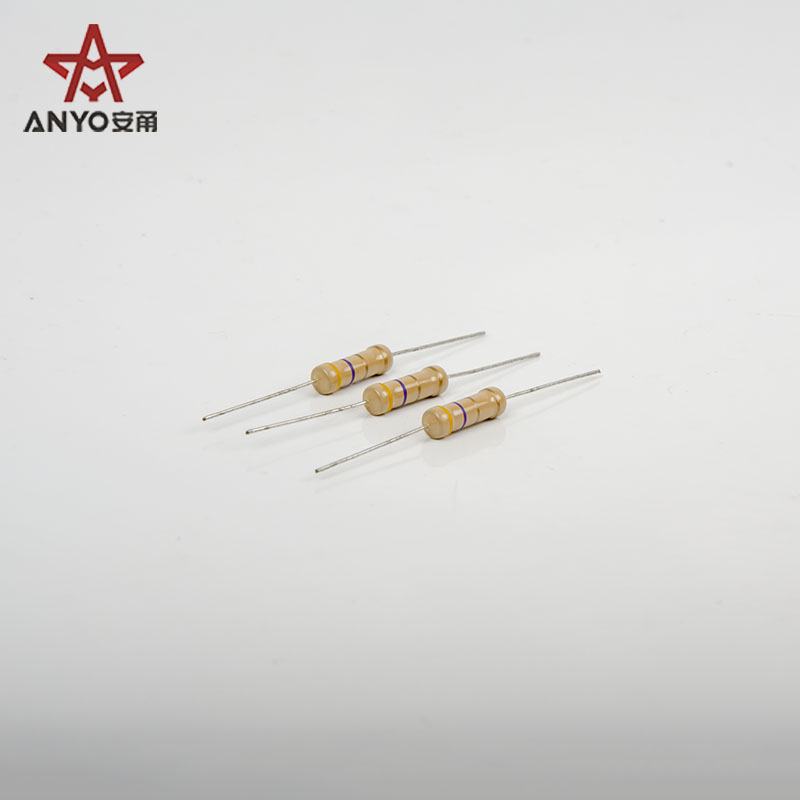

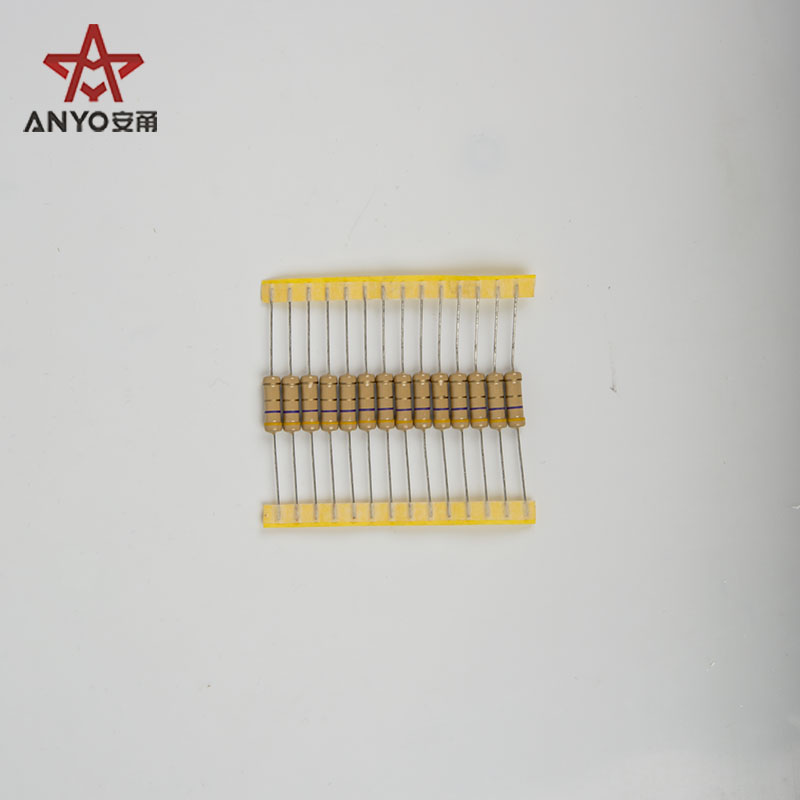

Carbon film resistor
Category:RESISTOR
Release date:2019-01-21 14:01:27

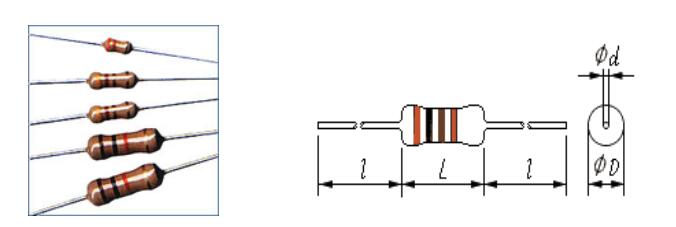

SPECIFICATION & DIMENSIONS
Items   Dimensions(mm)   Power
Rating
70oC
Temp.
Coefficient
Utmost Voltage(V) Dielectric
 Withstanding
Voltage(V)
Value
 Range(Ω)J(±5%)
L D L±3 d±0.05 (W) (10-6/℃)
RT13 3.2±0.2 1.8±0.2 26 0.4 0.167 300~-1000 200 300 1.5~5.1M
RT14 6.3±0.5 2.3±0.3 28 0.4 0.25 250 350
RT14X 3.2±0.2 1.8±0.2 0.45 0.25 250 350
RT15 9.5±0.5 3.5±0.5 0.52 0.5 350 500
RT15X 6.3±0.5 2.3±0.3 0.55 0.5 350 500
RT16 11.0±1.0 4.5±0.5 0.7 1 350 500 1~1M
RT17 16.0±1.0 5.0±0.5 0.8 2 350 500

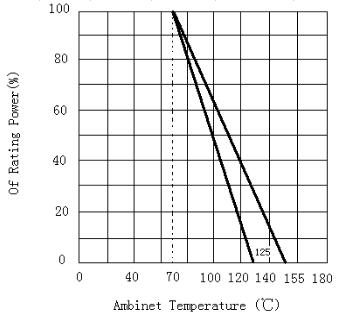

DERATION CURVE
