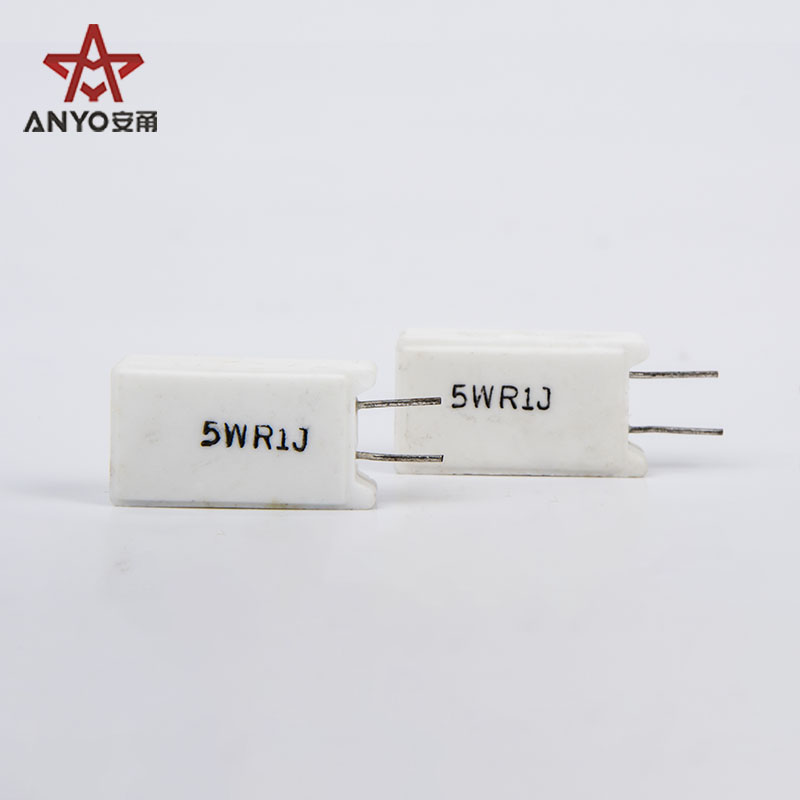

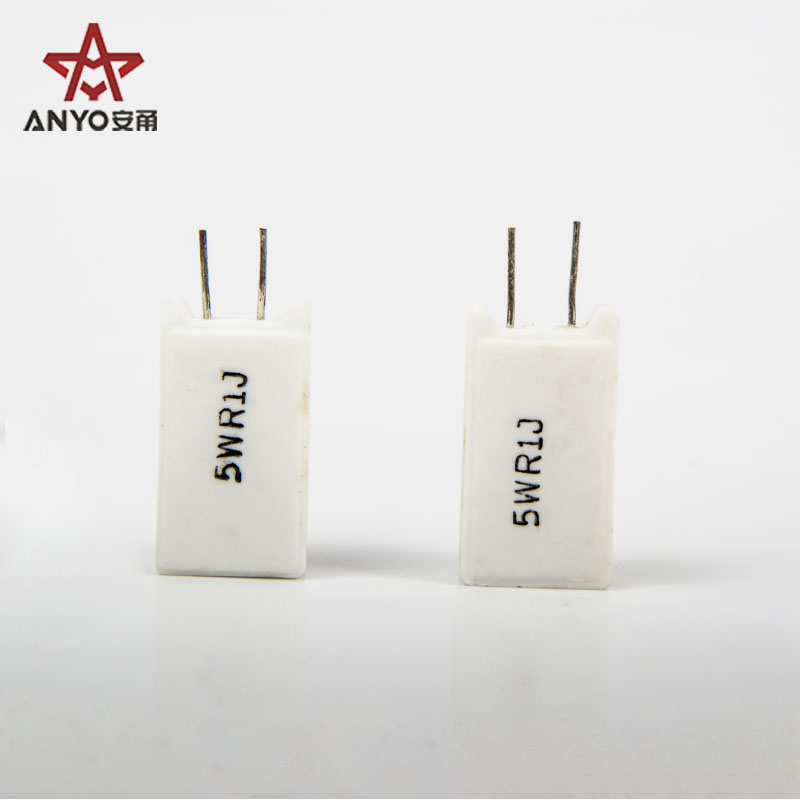

Cement resistor SQM type
Category：RESISTOR
Release date：2019-01-21 15:01:34
Order

  • Details

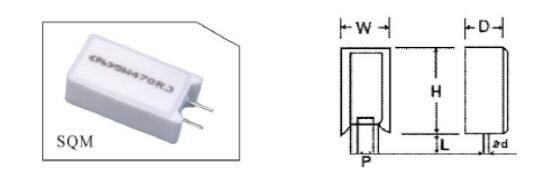

SPECIFICATIONS AND DIMENSIONS
Part No. Dimension(mm) Resistance range Forming type
H±1.5 W±1 D±1 L±3 Φd±0.05 P±1 Wire coiling Oxide rod
2W 20.5 11 7 4 0.78 4 0.1R~220R 220R~47K M
3W 25 12 8 4 0.78 4 0.1R~560R 560R~47K M
5W 25 13 10 4 0.78 4 0.1R~560R 560R~47K M
7W 39 13 10 4 0.78 4 0.1R~820K 820R~39K M
10W 51 13 10 4 0.78 4 0.1R~1K 1K~33K M
10W 35 16 12 5 0.78 8 0.1R~820K 820R~39K M
