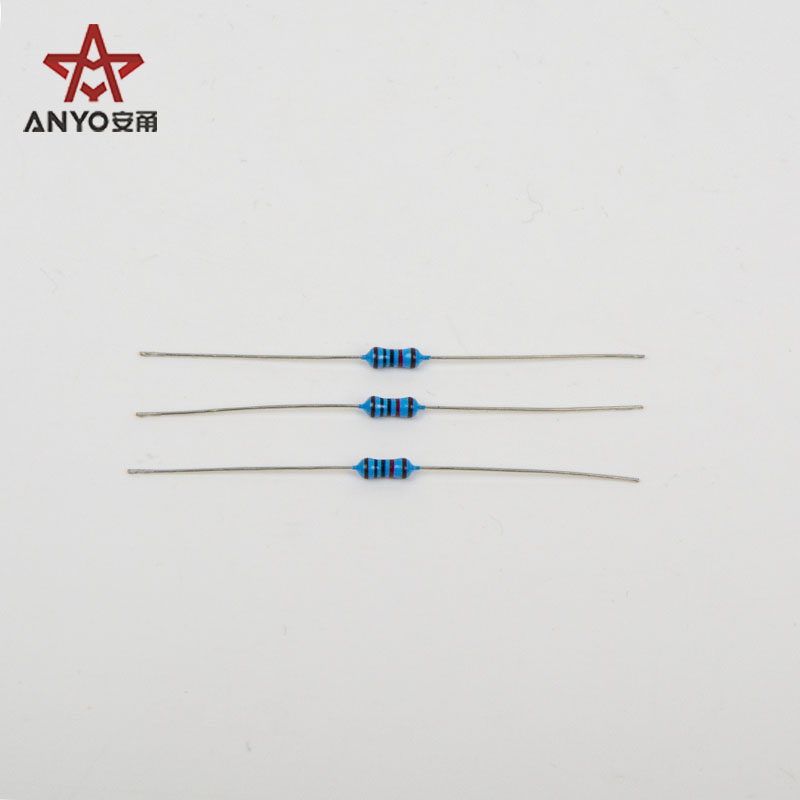

Metal film resistor
Category:RESISTOR
Release date:2019-01-21 14:01:38

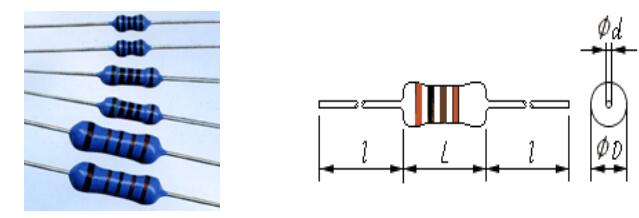

SPECIFICATIONS & DIMENSIONS
Items   Dimension(mm)     Power
Rating
70oC
Temp.
Coefficient
Utmost
Voltage(V)
Dielectric
Withstanding
Voltage
Value
Range
        D(±0.5) F(±1%)G(±2%) J(±5%)
L D L±3 d±0.05 (W) (10-6/℃)   (V)
RJ13 3.2±0.2 1.8±0.2 26 0.45 0.167 ±100 200 250 —— 4.7~10M
RJ14 6.3±0.5 2.3±0.3 28 0.55 0.25 250 350
RJ14X 3.2±0.2 1.8±0.2 0.45 0.25 200
RJ15 9.5±0.5 3.5±0.5 0.6 0.5 350 500
RJ15X 6.3±0.5 2.3±0.3 0.55 0.5
RJ16 11.0±1.0 4.5±0.5 0.7 1 ±250 500
RJ17 16.0±1.0 5.0±0.5 0.8 2 750 750
RJ24 6.3±0.5 2.3±0.3 0.55 0.25 ±100 250 350 4.7~2.2M ——
RJ25 9.5±0.5 3.5±0.5 0.6 0.5 350 500 10~3.3M

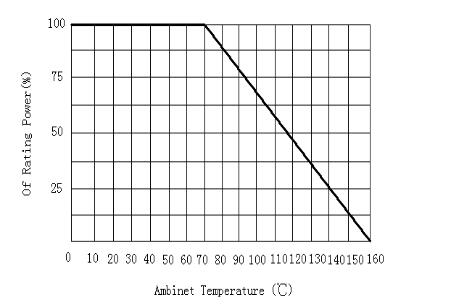

DERATION CURVE
