CPS05613AR
Category：7 SEGMENT DISPLAY
Release date：2019-01-21 10:01:22
Order

  • Details

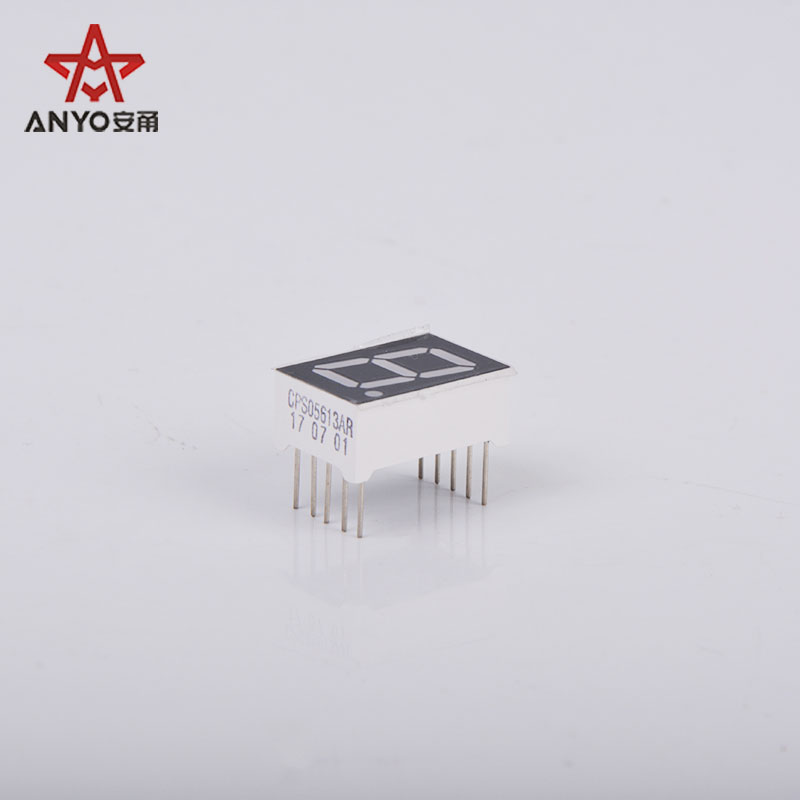

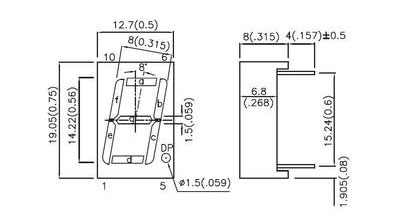

14mm(0.56”) red single digit common cathode 7 segment display
Wavelength at peak emission IF=10mA: 645nm
Dominant wavelength IF=10mA: 630nm
Spectral bandwidth at 50% Φ REL MAX IF=10mA: 28nm
Capacitance: 35pF
Forward voltage IF=10mA: 1.85~2.5V
Reverse current: 10μA
Power dissipation: 75mW
Reverse voltage: 5V
Operation temperature: -40℃~ +85℃
Storage temperature: -40℃~ +85℃
DC forward current: 30mA
Peak forward current: 185mA
Lead solder temperature: 260℃ for 3~5 seconds
